Danfoss (Drives) 11020262401
14T SM Device(68-01-19)ADJUSTABLE – 11020262401
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

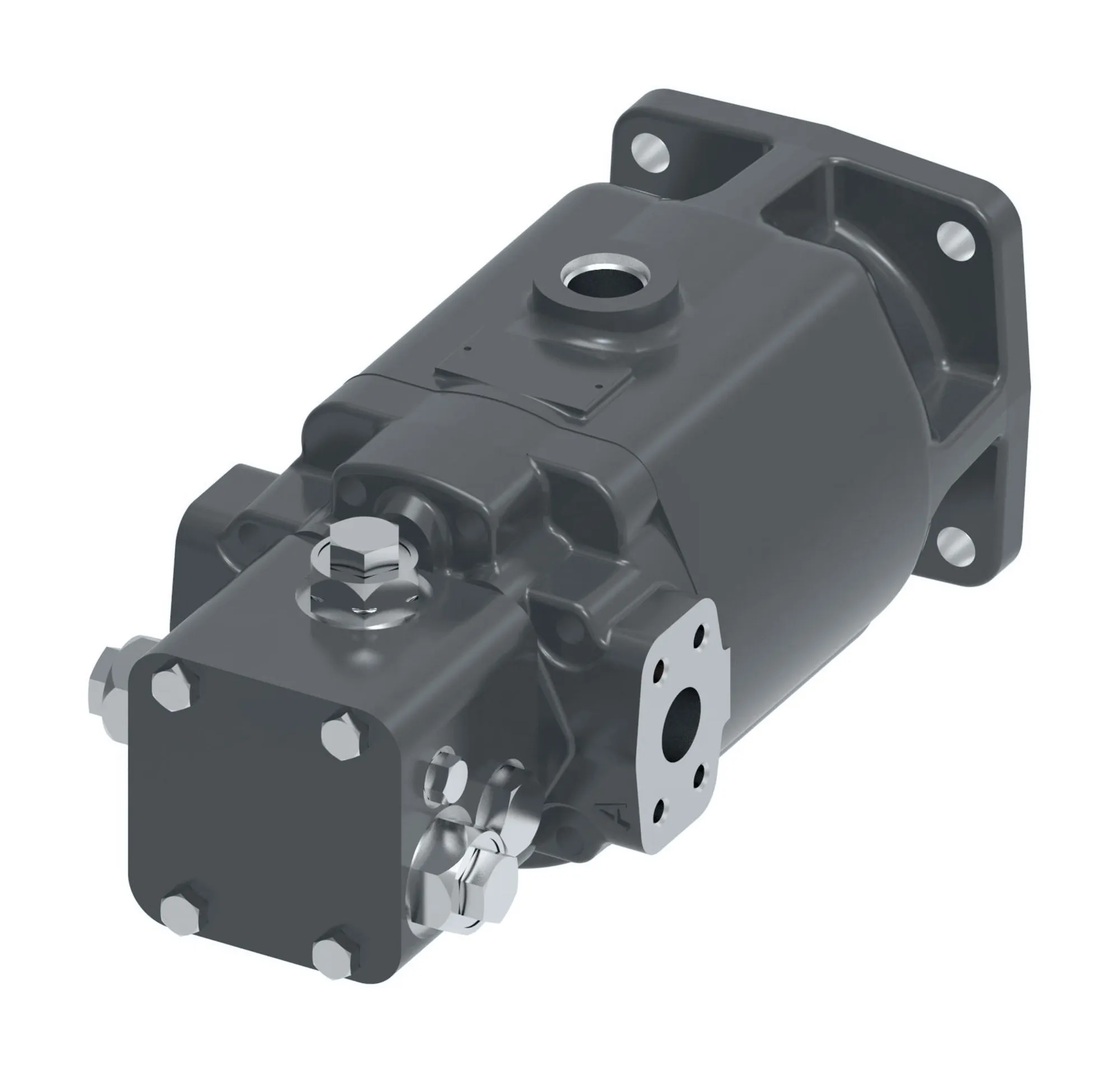

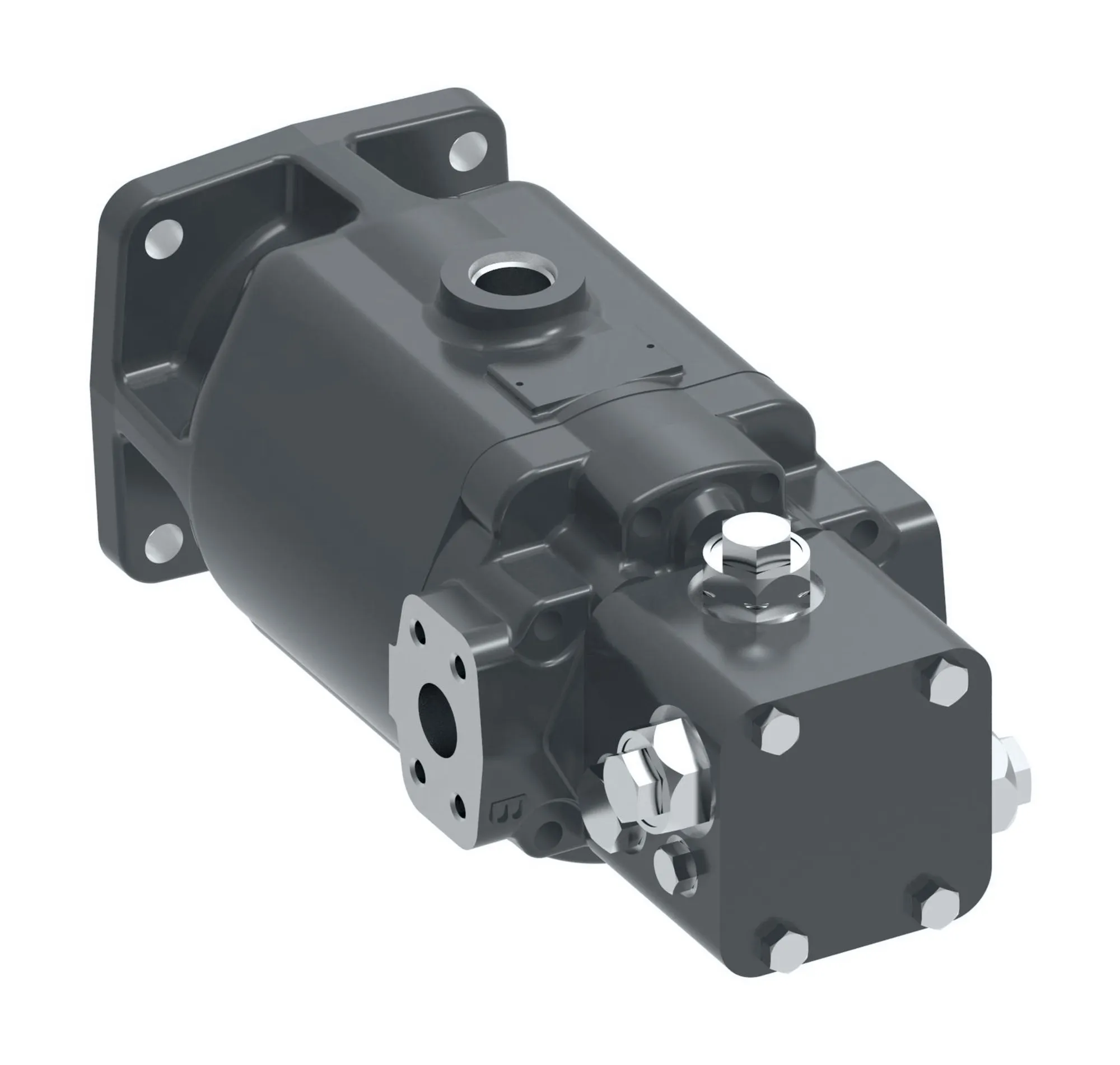

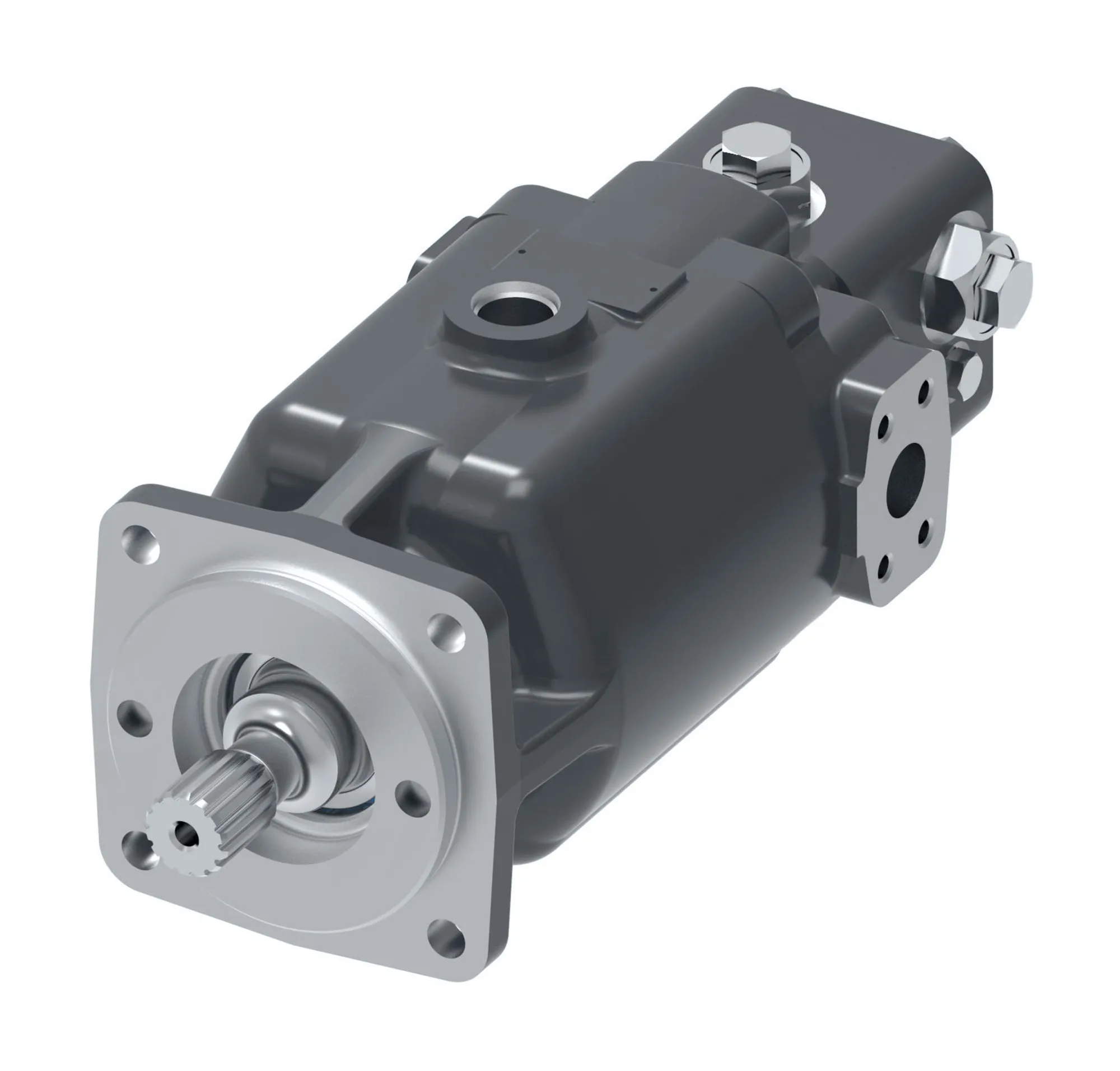

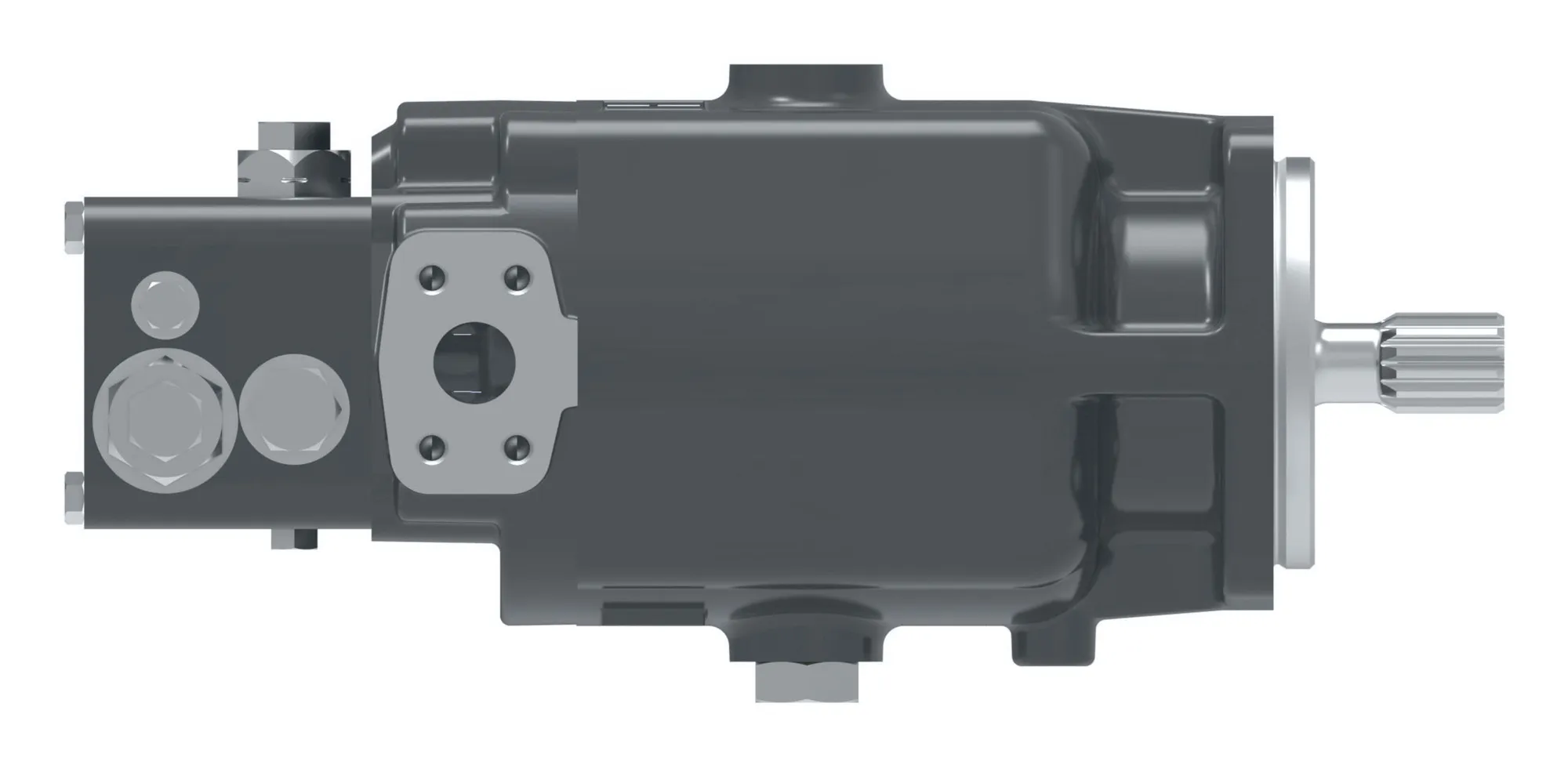

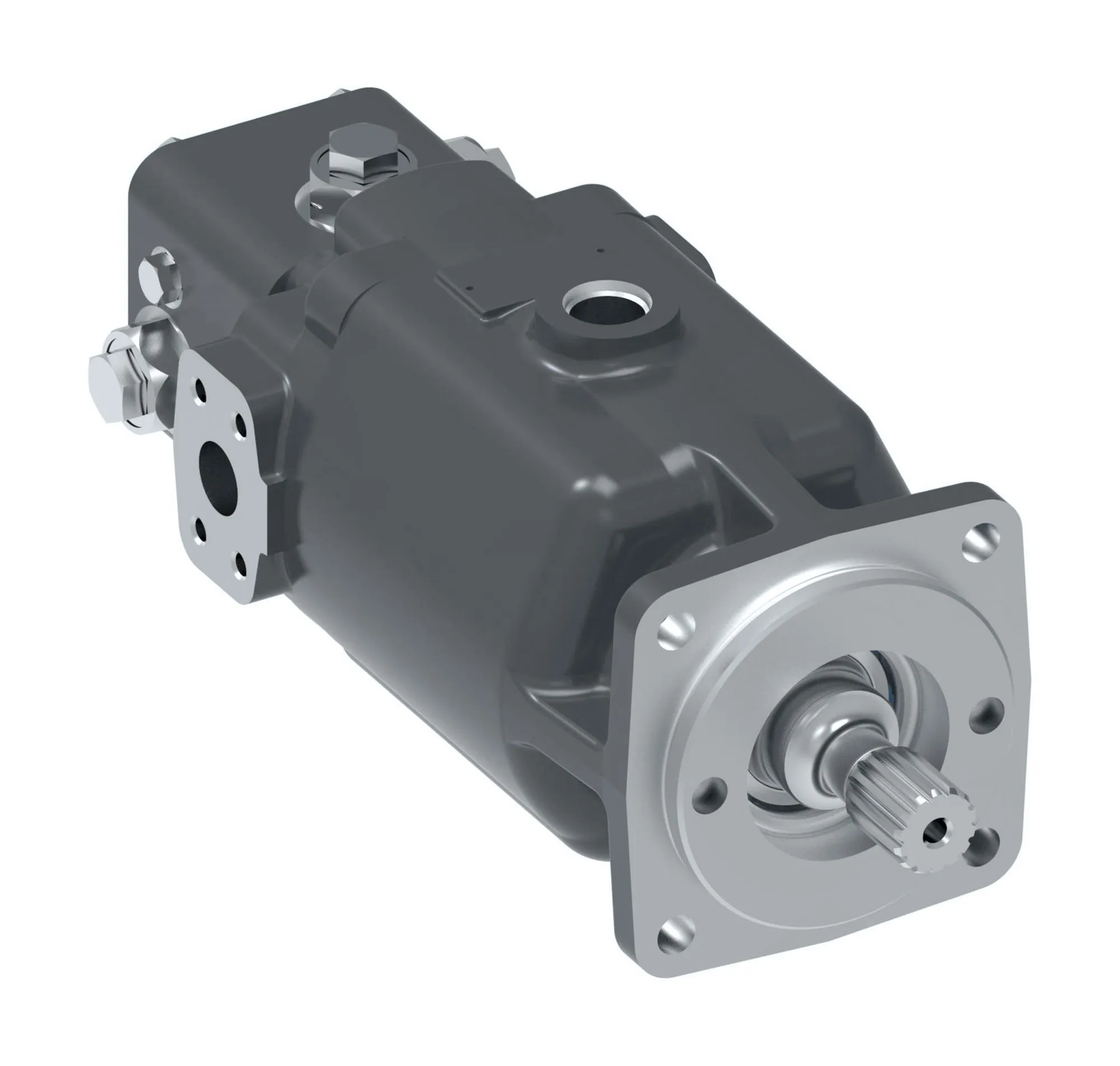

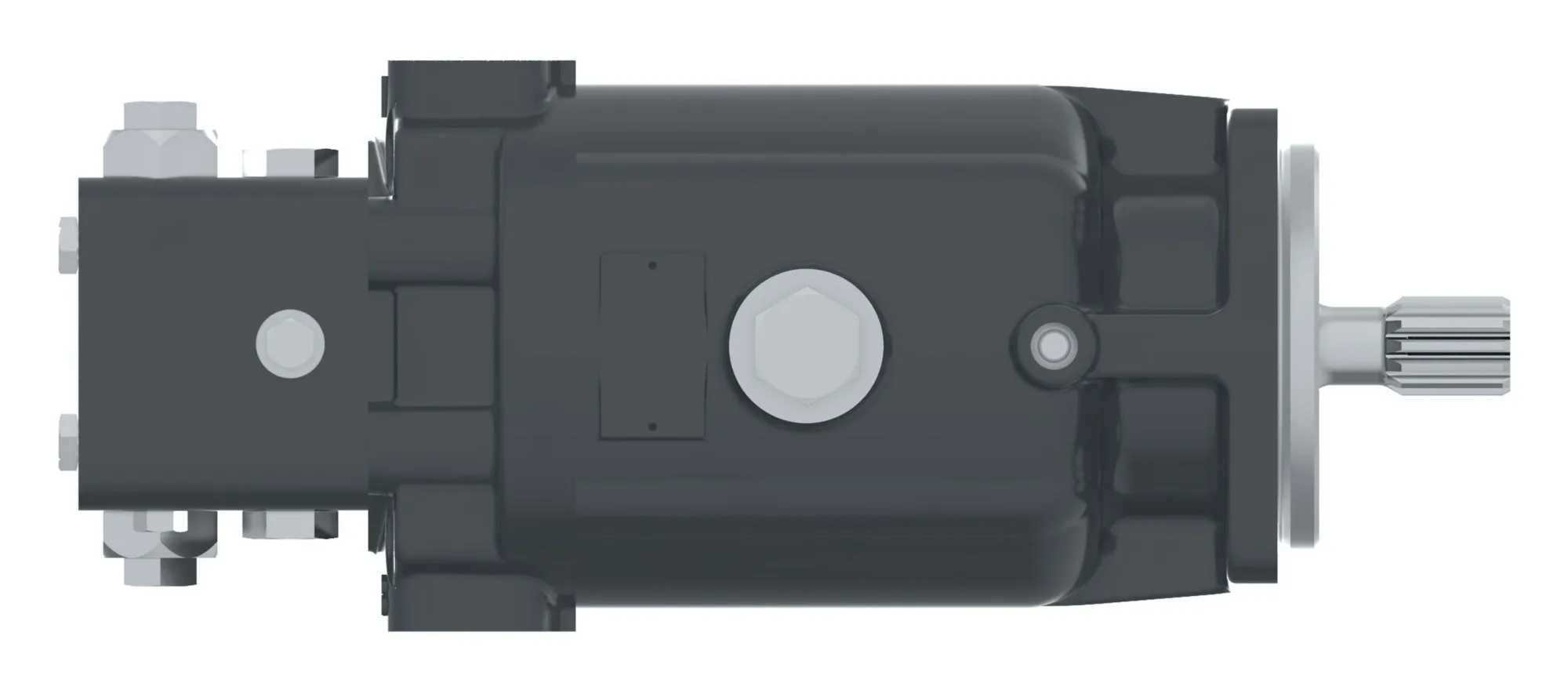

14T SM Device(68-01-19)ADJUSTABLE – 11020262401
Specification
| A B Main Port Size | SAE 1/2″ 8-M8 |
|---|---|
| Anti Reverse Valve And Setting | Built in |
| Application | Excavator |
| Brand | Danfoss |
| Danfoss Swing Type | Danfoss Swing Motor |
| Design Code | First version |
| Displacement | 68 cm3/r (4.14 in3/r) |
| Flow Rate Gpm | 34.34 |
| Flow Rate Lpm | 130.0 |
| Gear Ratio | 19.0 two stage |
| Gearbox Input Shaft Spec | None |
| Identification | Standard namplate |
| Maximum Output Speed Rpm | 99 |
| Motor Mounting | Standard |
| Motor Shaft Spec | Standard |
| Old Model Code | JMF068RR0304010211900A00 A |
| Output Torque Lbf In | 42781.6 |
| Output Torque Nm | 4833.7 |
| Paint | Primer + yellow |
| Parking Brake And Setting | Standard |
| Product Height In | 14.300 |
| Product Height Mm | 363.220 |
| Product Length In | 22.800 |
| Product Length Mm | 579.120 |
| Product Width In | 14.300 |
| Product Width Mm | 363.22 |
| Relief Valve And Setting | 240bar (3480 psi) 30 lpm (7.92 gpm) |
| Special Requirement | None |
| Timedelay And Setting | 5 bar (72 psi) |
| Working Pressure Bar | 235.0 |
| Working Pressure Psi | 3408 |
