Danfoss (Drives) 11010093001

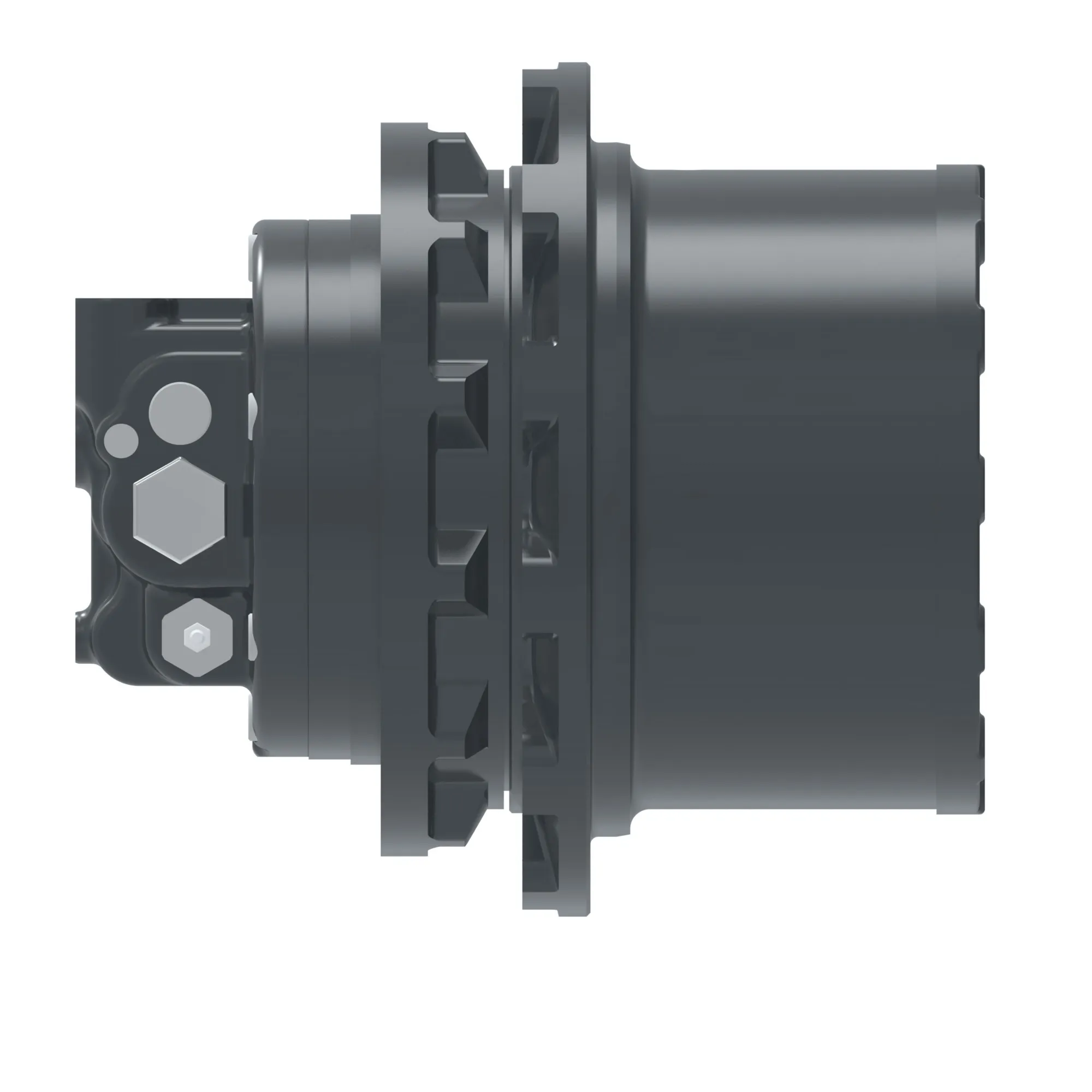

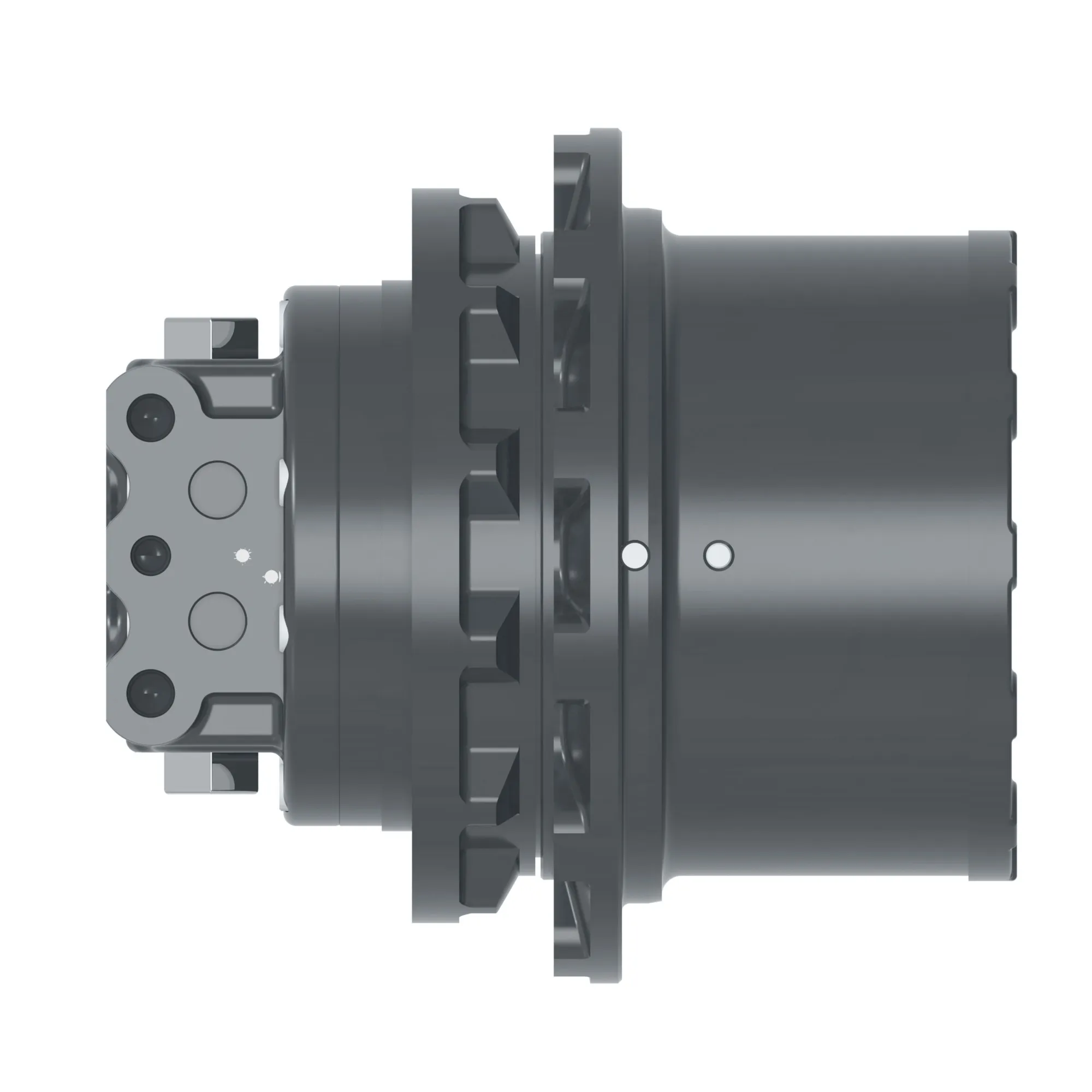

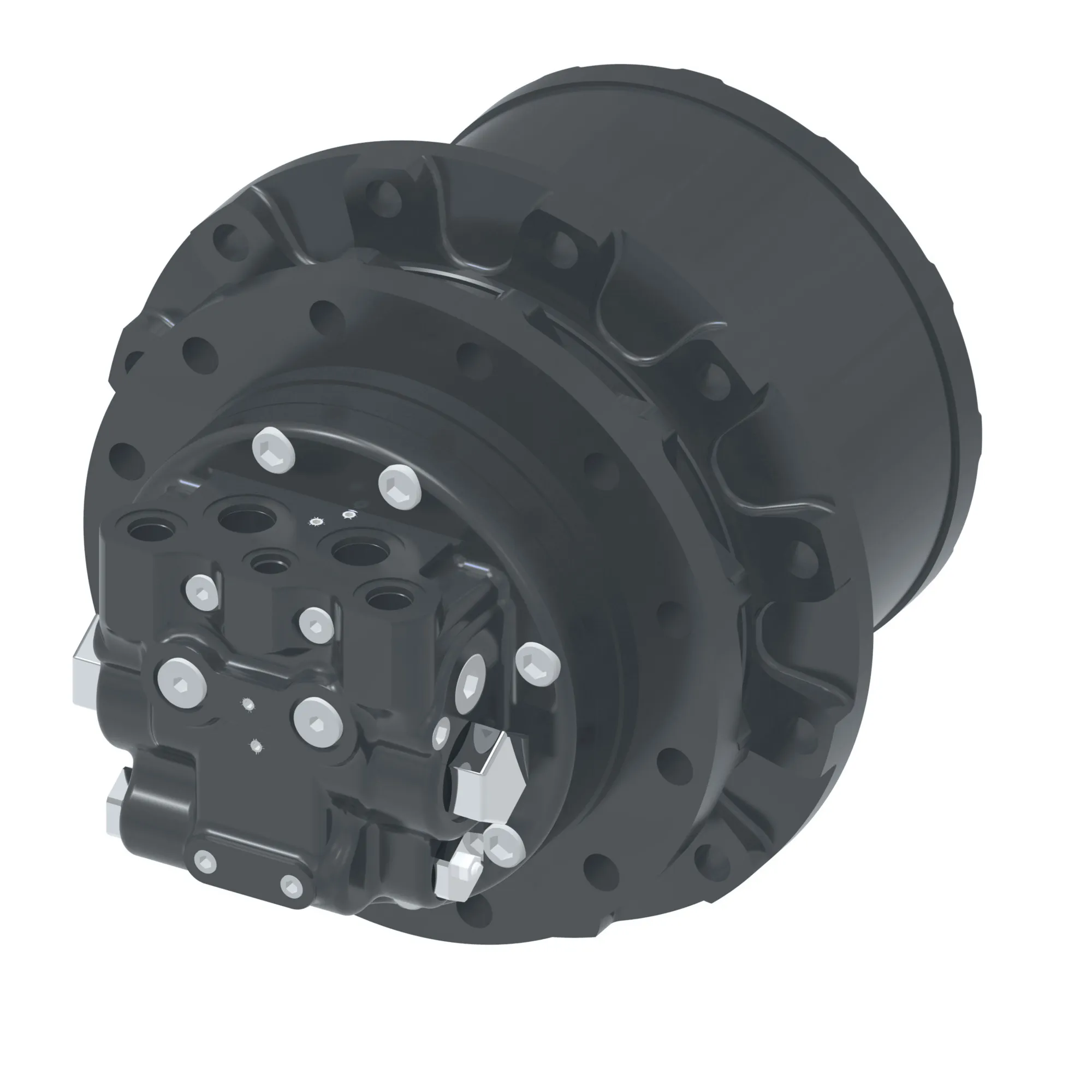

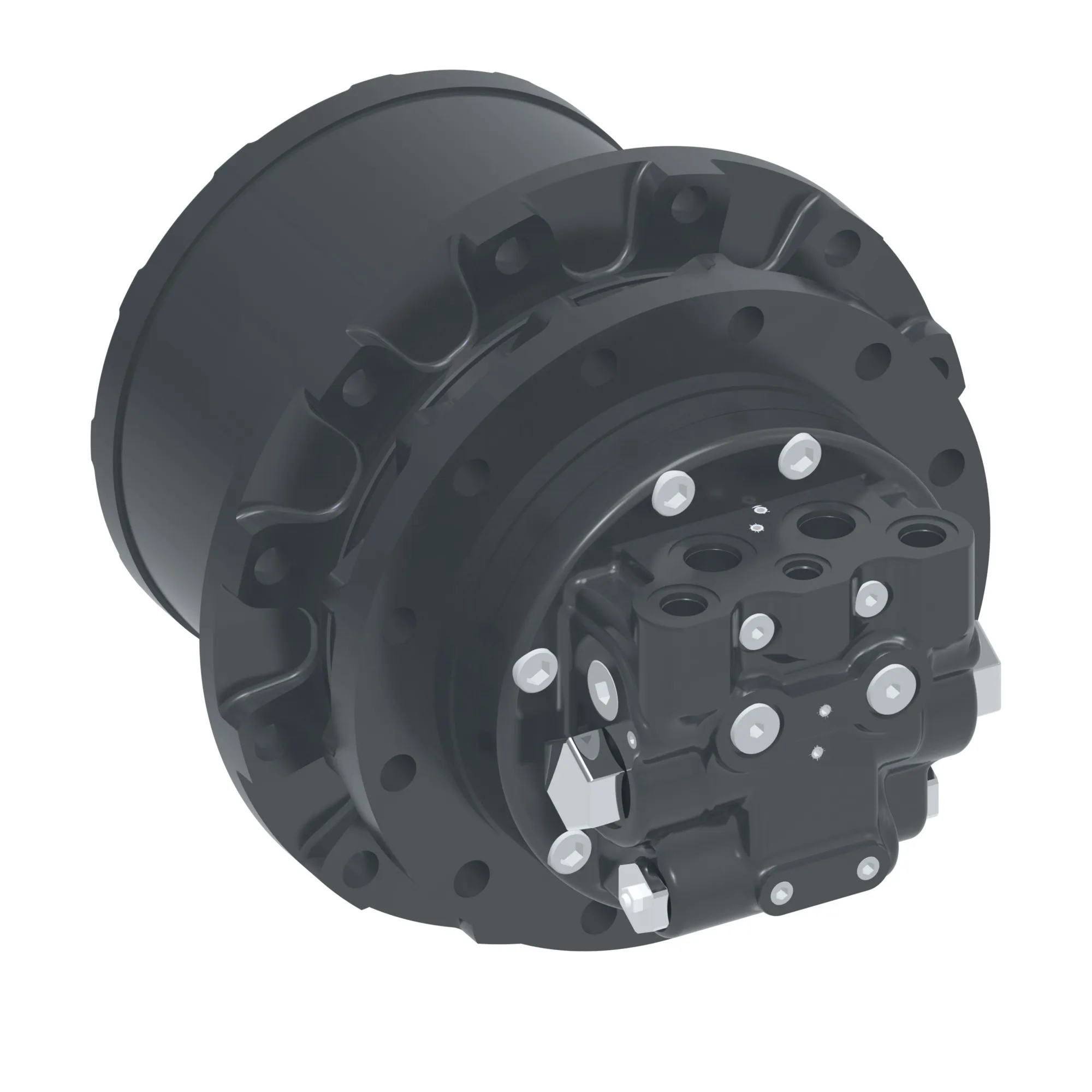

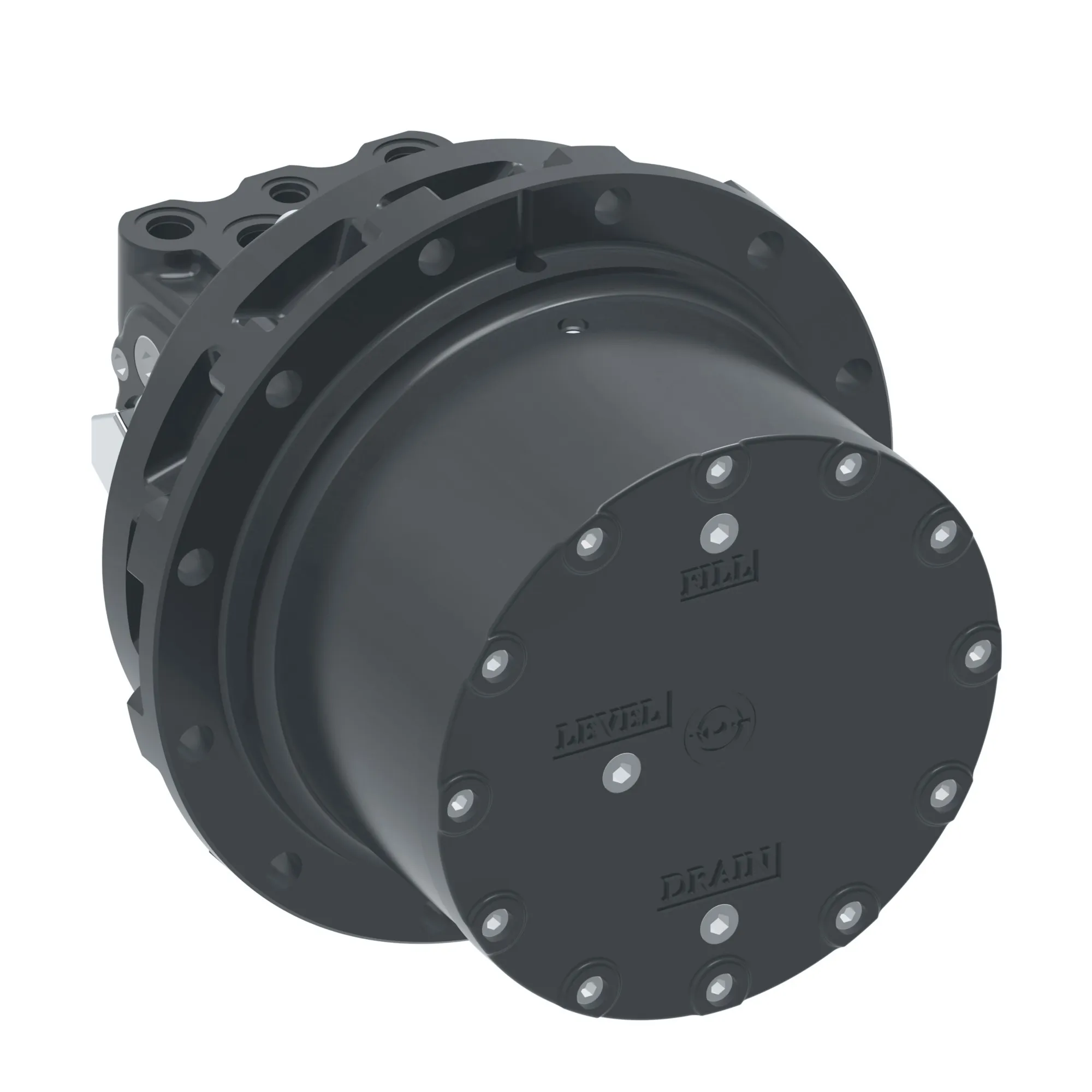

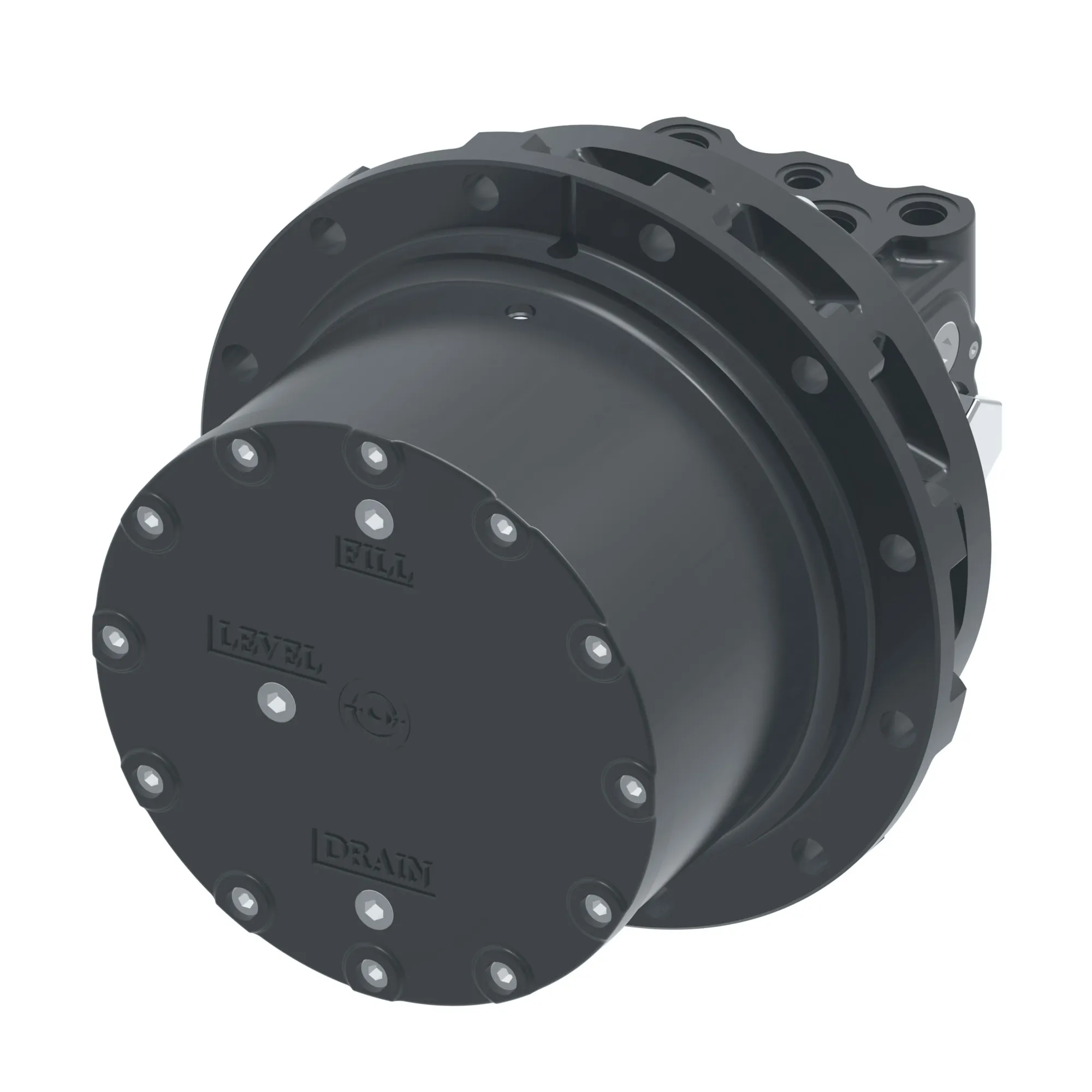

TM 1.5T A2S DEVICE (01) – 11010093001
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TM 1.5T A2S DEVICE (01) – 11010093001
Specification
| A B Main Port Size | BSPP 3/8 |
|---|---|
| Anti Cavitation | None |
| Application | Excavator |
| Brand | Danfoss |
| Danfoss Track Type | Danfoss Track Device (motor+gear box) |
| Design Code | First version |
| Device Mounting | Standard |
| Displacement (1St 2Nd) | 16.4 11.4 cm3/r (1 0.7 in3/r) |
| Flow Rate Gpm | 9.25 |
| Flow Rate Lpm | 35.0 |
| Gear Ratio | 42.6 two stage |
| Gearbox Mounting | Standard |
| Identification | Standard nameplate (Danfoss) |
| Maximum Output Speed Rpm | 3070 |
| Motor Mounting | Standard |
| Motor Shaft | Standard |
| Old Model Code | JMV016RR010004074300A00A |
| Output Torque Lbf In | 24649.2 |
| Output Torque Nm | 2785.0 |
| Paint | Standard: black |
| Parking Brake Setting | 14.7 bar (213 psi) |
| Product Height In | 8.460 |
| Product Height Mm | 214.884 |
| Product Length In | 10.100 |
| Product Length Mm | 256.540 |
| Product Width In | 8.460 |
| Product Width Mm | 214.884 |
| Relief Valve Setting | None |
| Special Requirement | None |
| Two Speed Setting | 180bar (2610psi) pilot 39bar (569psi) |
| Working Pressure Bar | 250.0 |
| Working Pressure Psi | 3626 |
