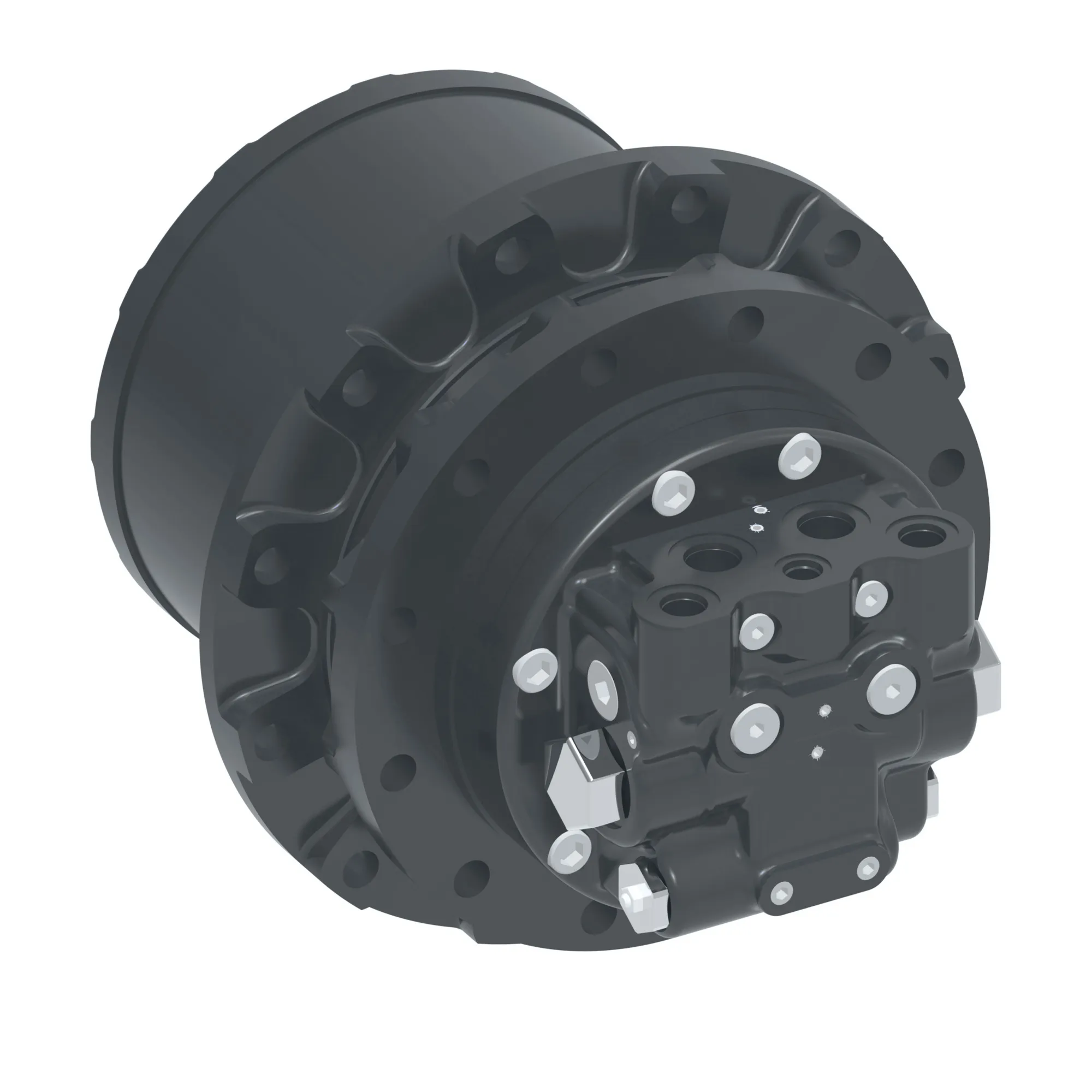

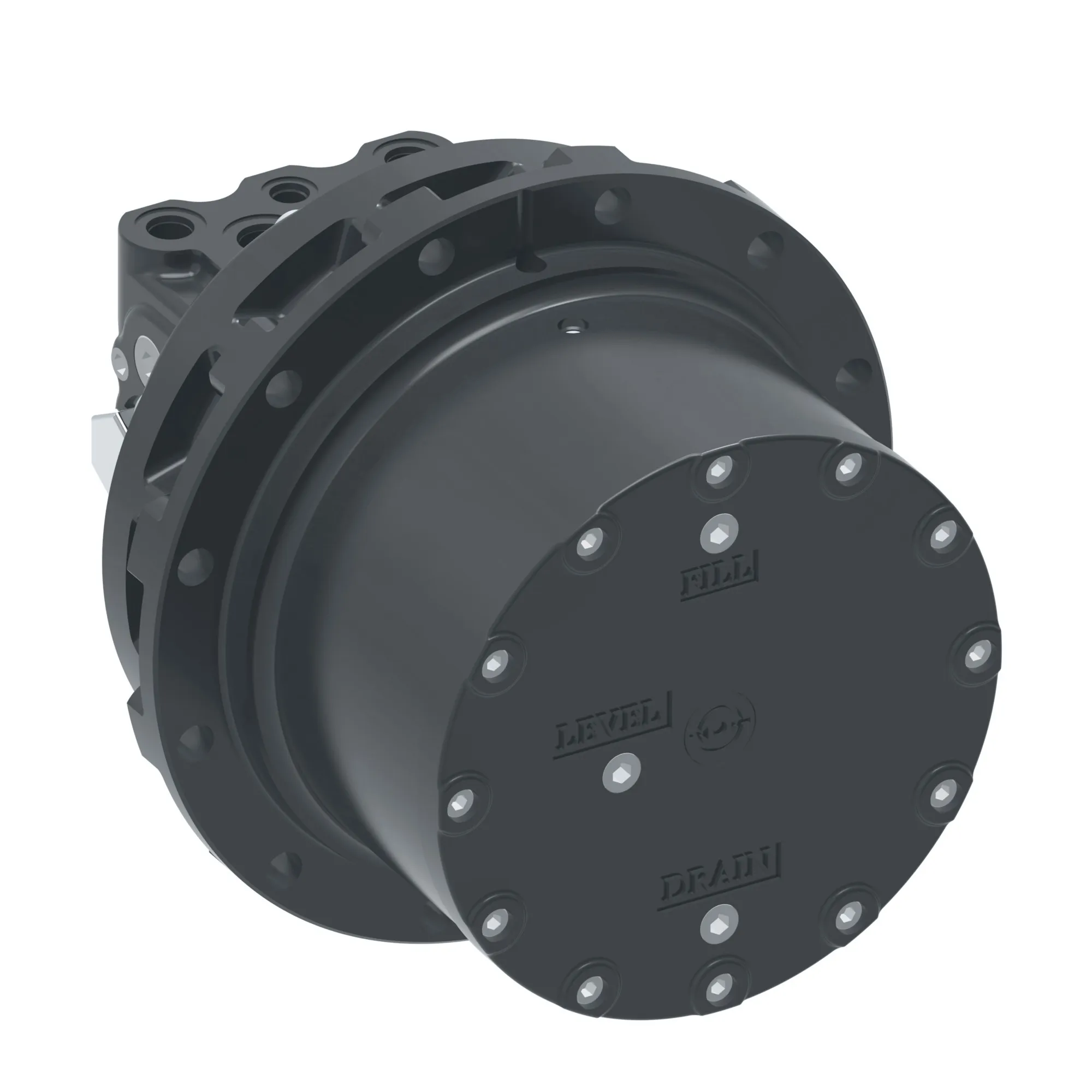

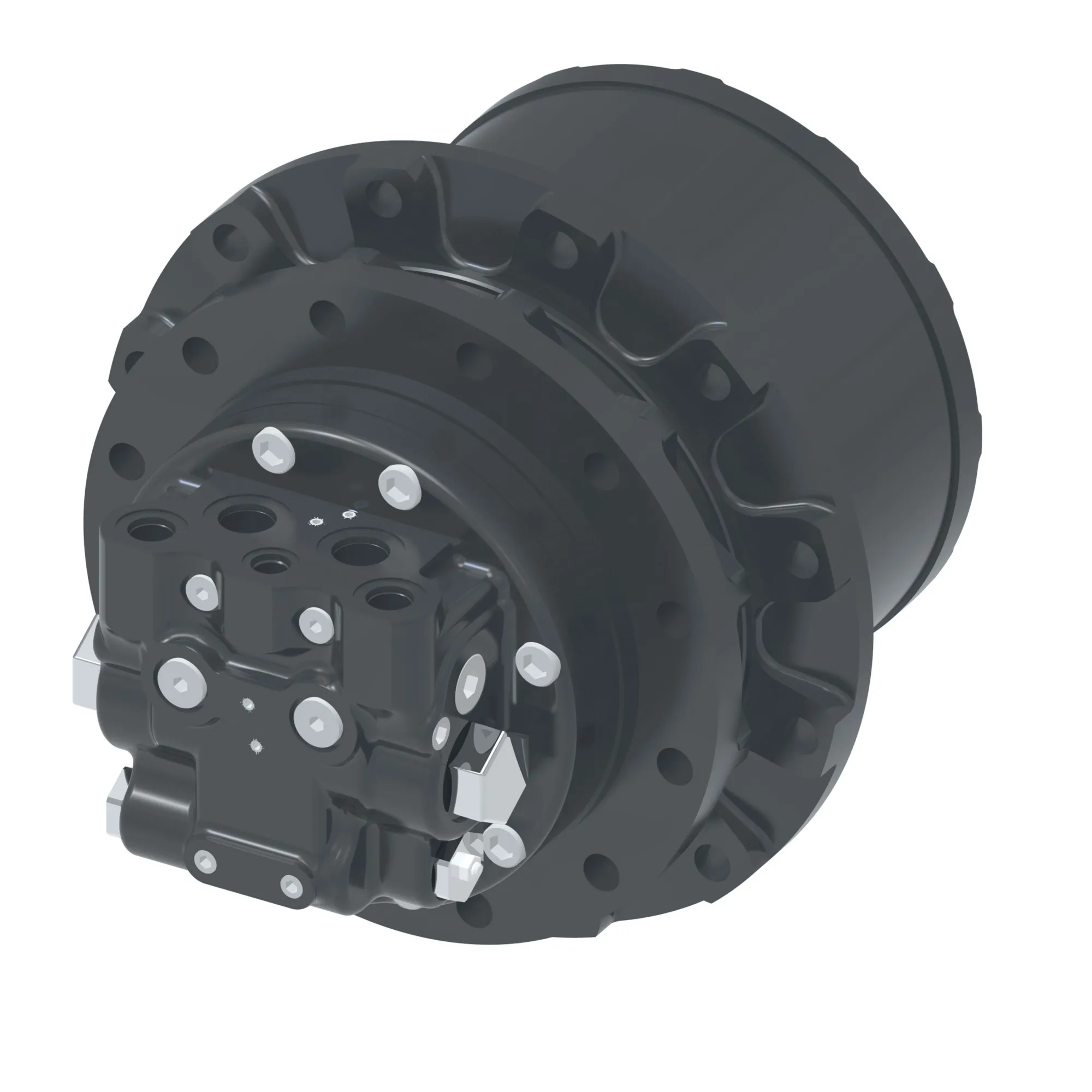

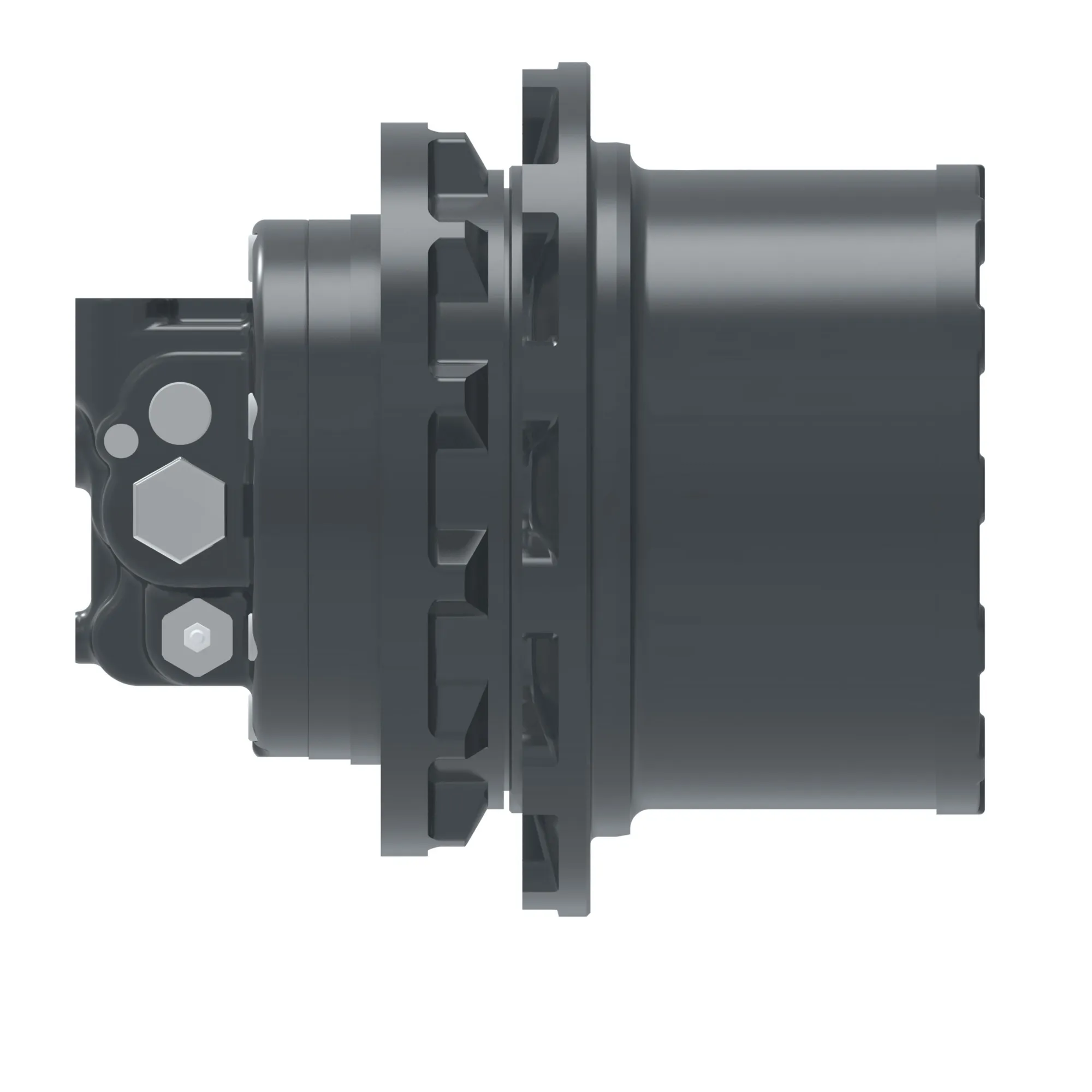

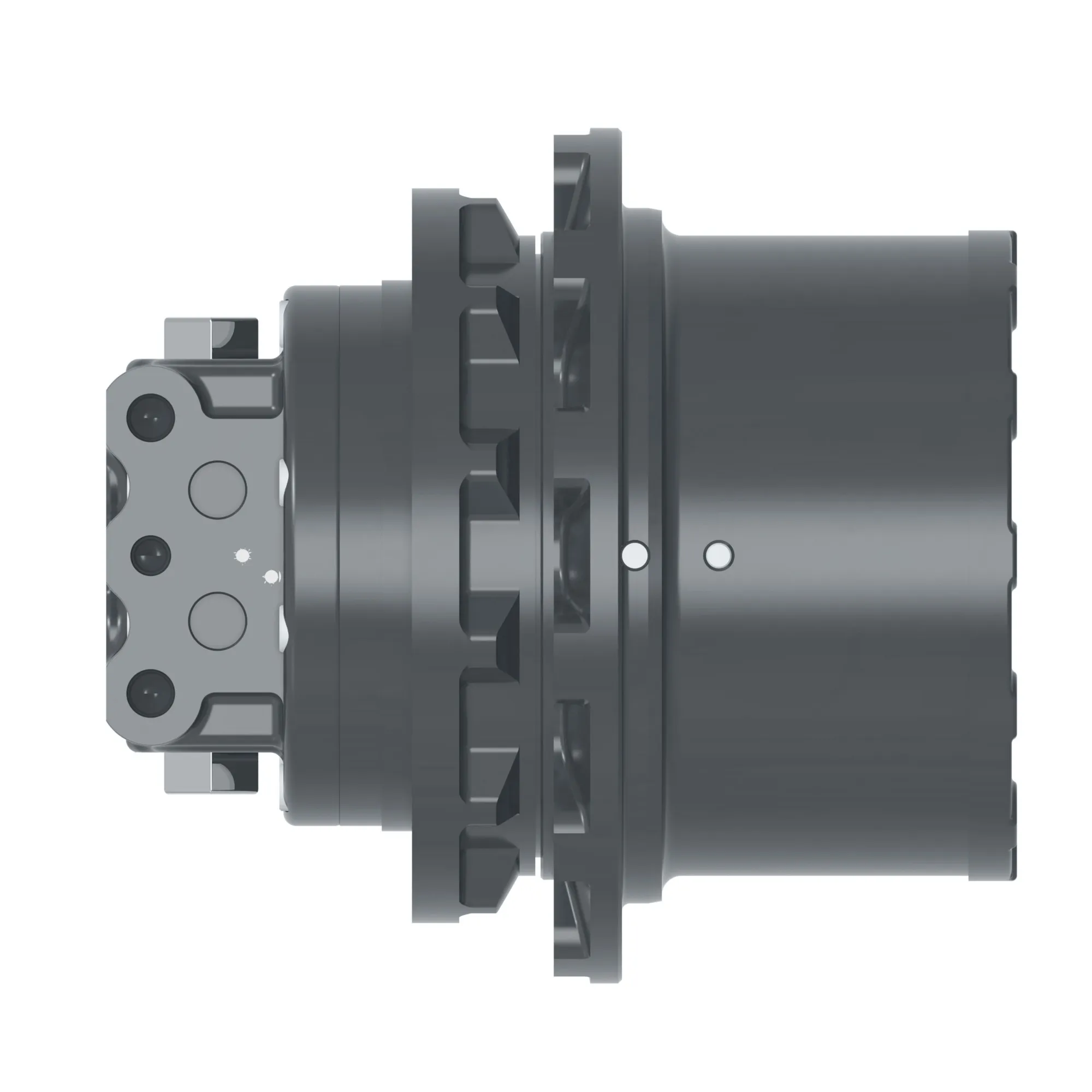

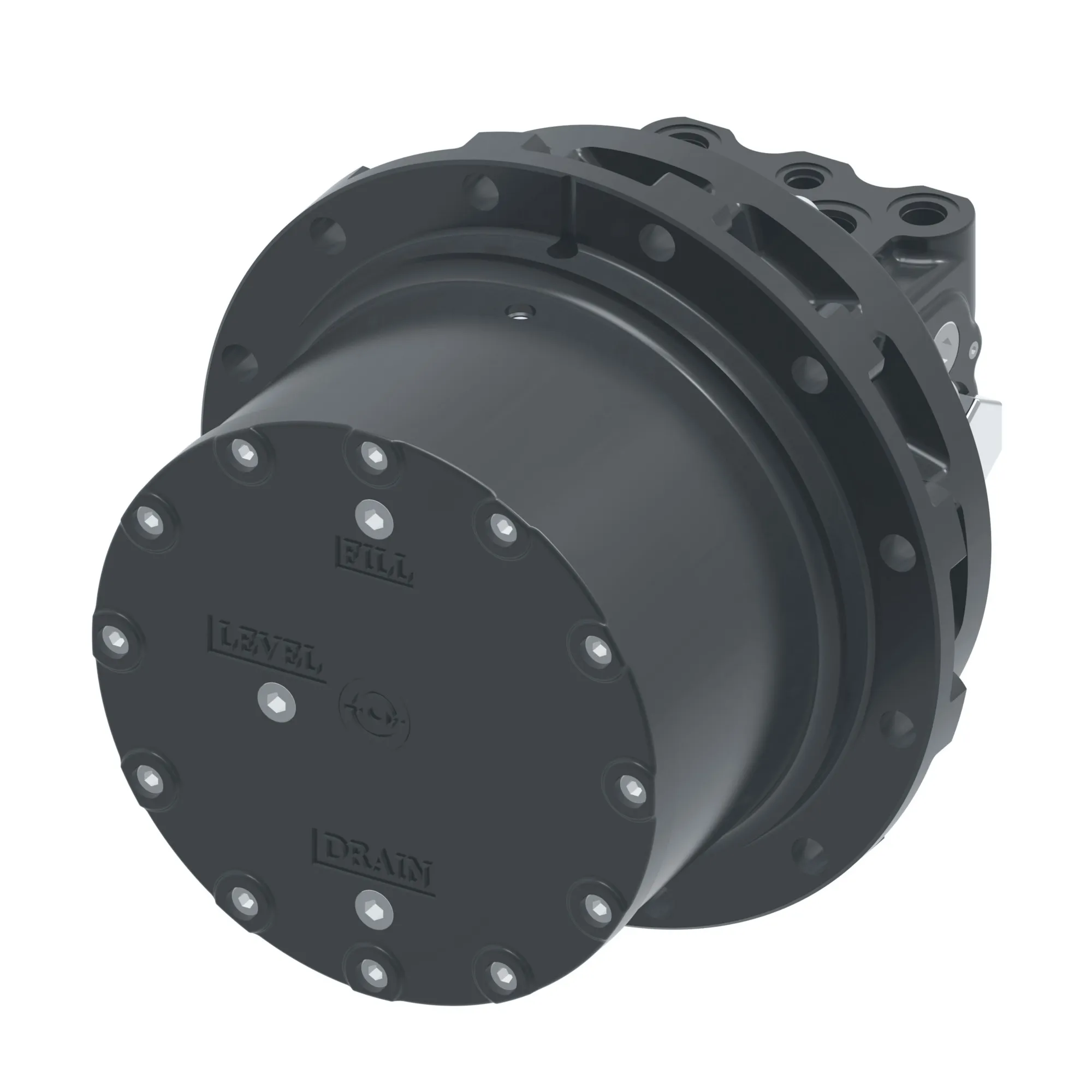

Danfoss (Drives) 11010092701
TM CN1.5T(16-01-31) – 11010092701
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TM CN1.5T(16-01-31) – 11010092701
Specification
| A B Main Port Size | BSPP 3/8 |
|---|---|
| Anti Cavitation | None |
| Application | Excavator |
| Brand | Danfoss |
| Danfoss Track Type | Danfoss Track Device (motor+gear box) |
| Design Code | First version |
| Device Mounting | Standard |
| Displacement (1St 2Nd) | 16 cm3/r (0.98 in3/r) |
| Flow Rate Gpm | 4.49 |
| Flow Rate Lpm | 17.0 |
| Gear Ratio | 31.0 two stage |
| Gearbox Mounting | Standard |
| Identification | Standard nameplate (Danfoss) |
| Maximum Output Speed Rpm | 1056 |
| Motor Mounting | Standard |
| Motor Shaft | Standard |
| Old Model Code | JMV016RR010004003100A00A |
| Output Torque Lbf In | 13709.7 |
| Output Torque Nm | 1549.0 |
| Paint | Standard: black |
| Parking Brake Setting | 14.7 bar (213 psi) |
| Product Height In | 8.400 |
| Product Height Mm | 213.360 |
| Product Length In | 10.100 |
| Product Length Mm | 256.540 |
| Product Width In | 8.460 |
| Product Width Mm | 214.884 |
| Relief Valve Setting | None |
| Special Requirement | None |
| Two Speed Setting | None |
| Working Pressure Bar | 182.0 |
| Working Pressure Psi | 2589 |
