Danfoss (Drives) 10511Y-20-06Z
HOSE FTG, 1P/06, DKOH-B/20, CS, STR – 10511Y-20-06Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

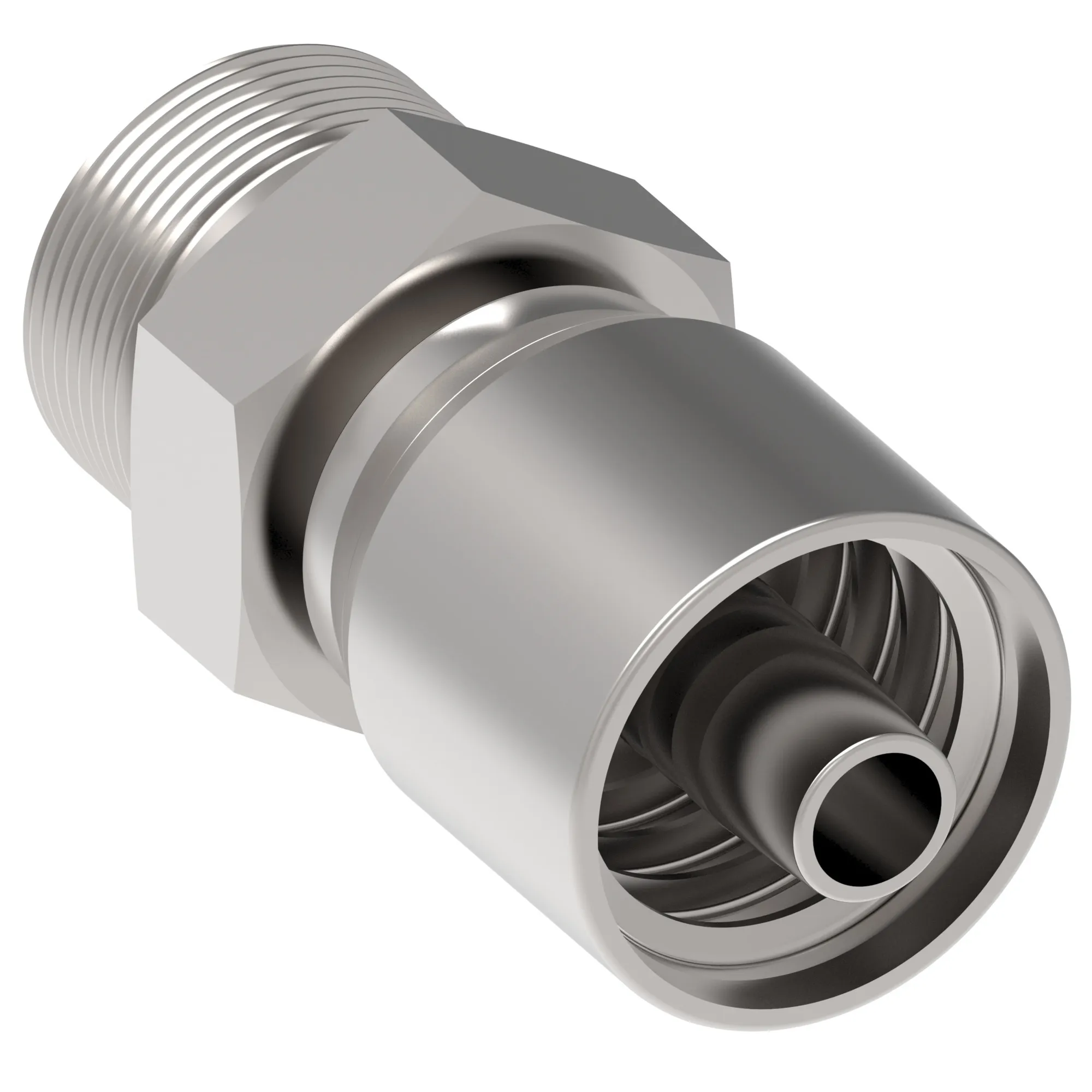

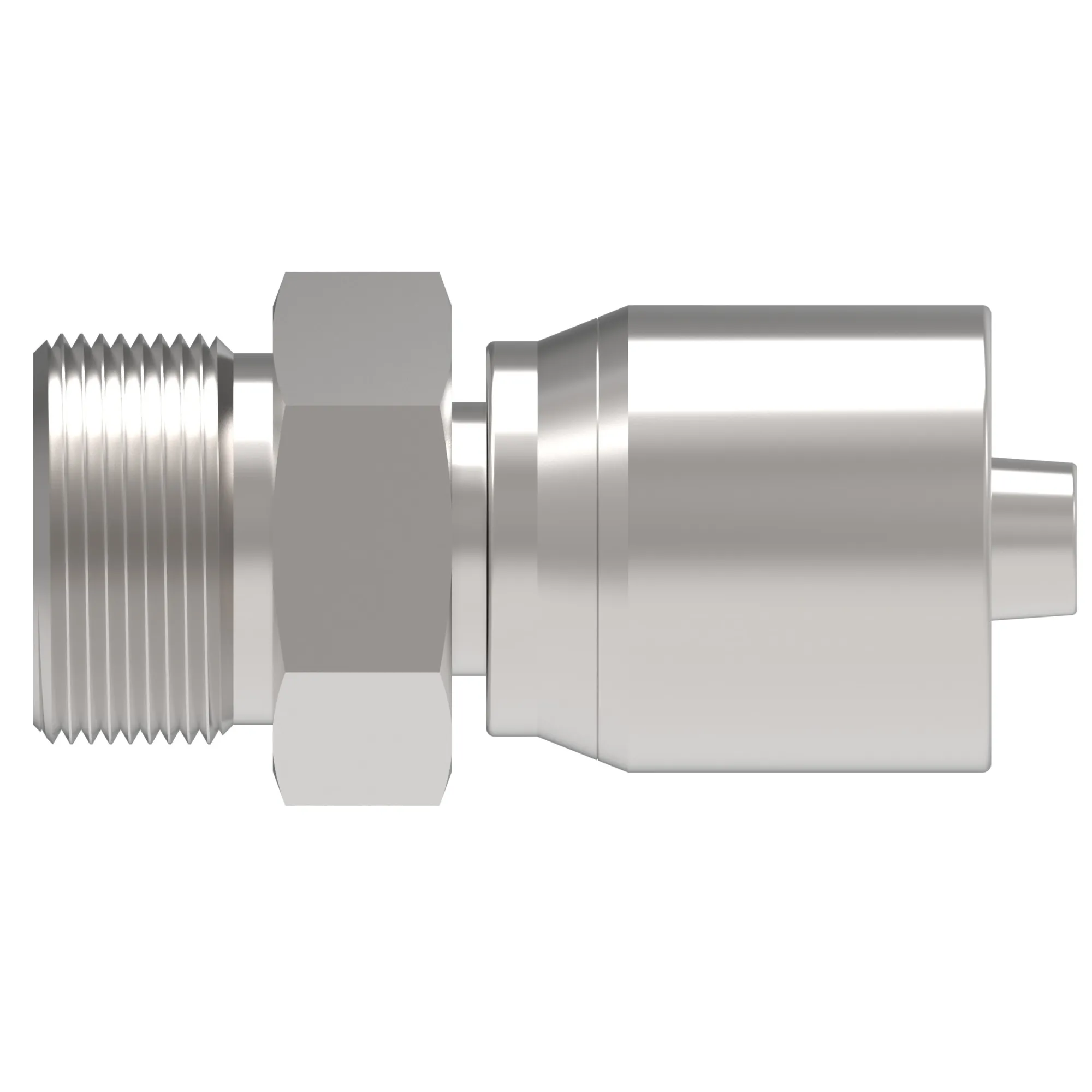

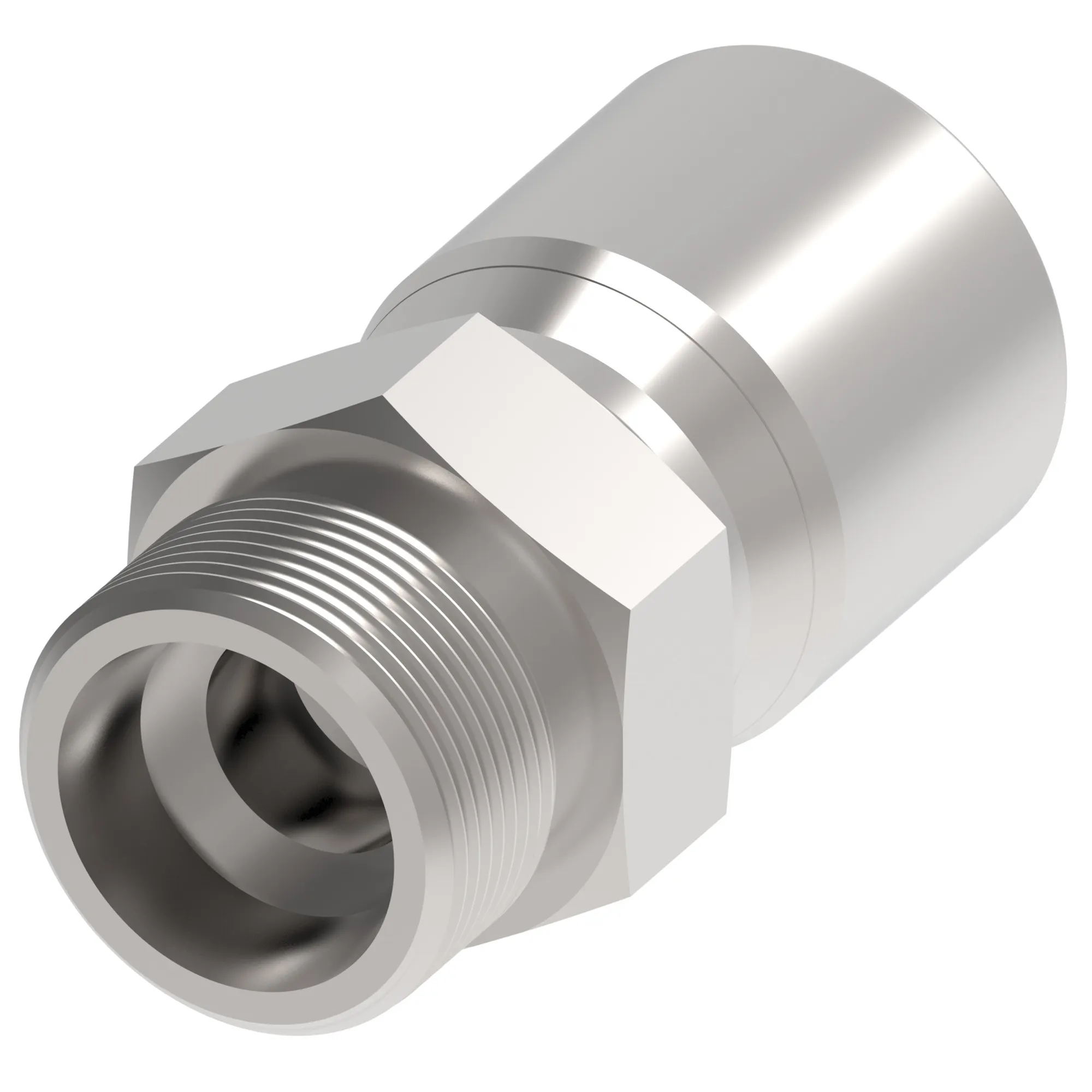

HOSE FTG, 1P/06, DKOH-B/20, CS, STR – 10511Y-20-06Z
Specification
| A Dimension In | 2.220 |
|---|---|
| A Dimension Mm | 56.500 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.380 |
| Compatible Hose Id Mm | 9.500 |
| Construction Style | Crimp |
| End Size 1 | -20 |
| End Type 1 | 24 deg. DKO swivel heavy duty |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 0.870 |
| Hex Size 1 Mm | 22.098 |
| Hose Cut Off Factor In | 1.040 |
| Hose Cut Off Factor Mm | 26.500 |
| Hose Size | -6 |
| Inside Diameter In | 0.2800 |
| Inside Diameter Mm | 7.0000 |
| Product Height In | 1.070 |
| Product Height Mm | 27.178 |
| Product Length In | 2.220 |
| Product Length Mm | 56.388 |
| Product Material | Carbon steel |
| Product Width In | 1.070 |
| Product Width Mm | 27.178 mm |
| Thread Sealant | No |
| Thread Size 1 | M20X1.5 |
| Working Pressure Max Bar | 172 |
| Working Pressure Max Psi | 2500 |
