Danfoss (Drives) 10511Y-16-04Z

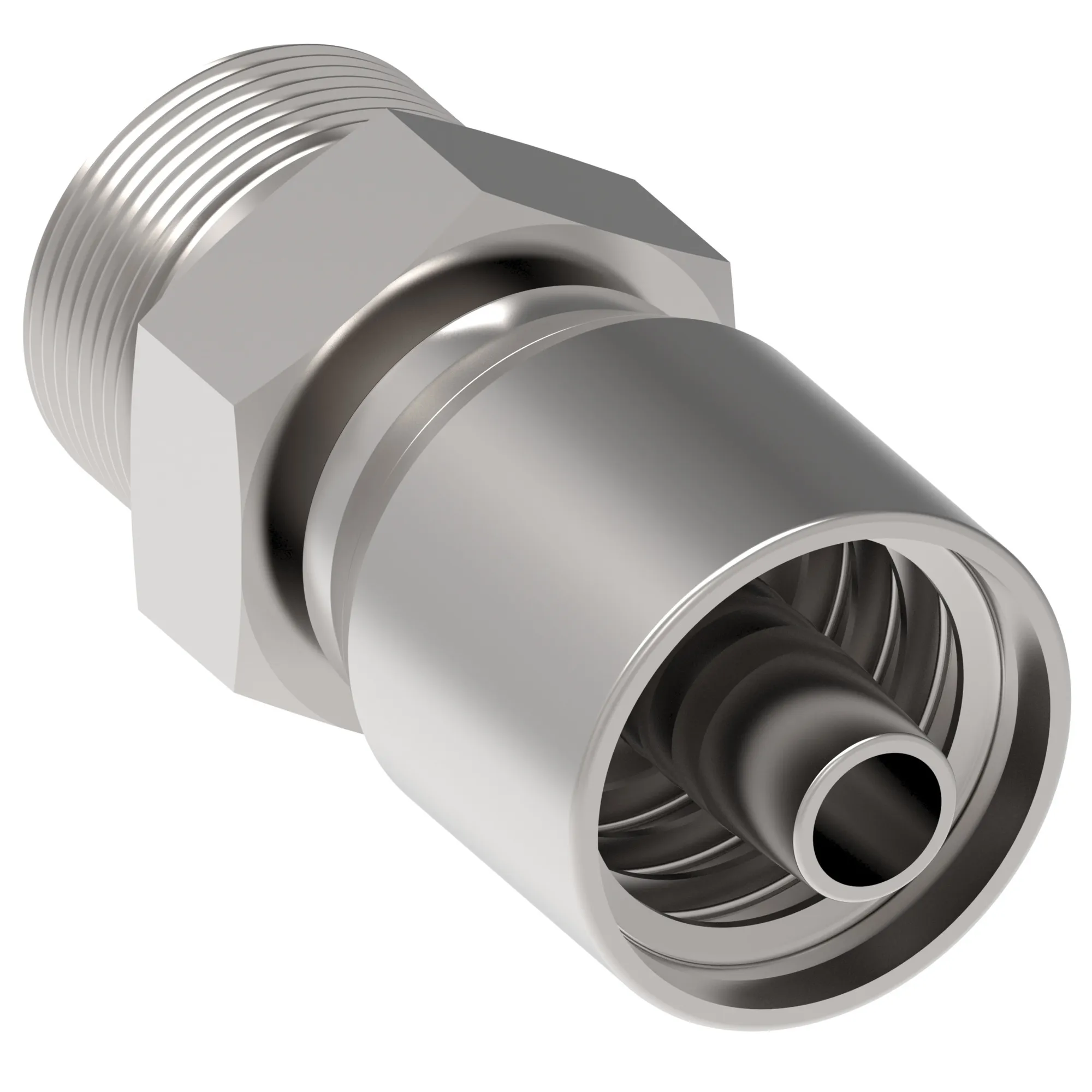

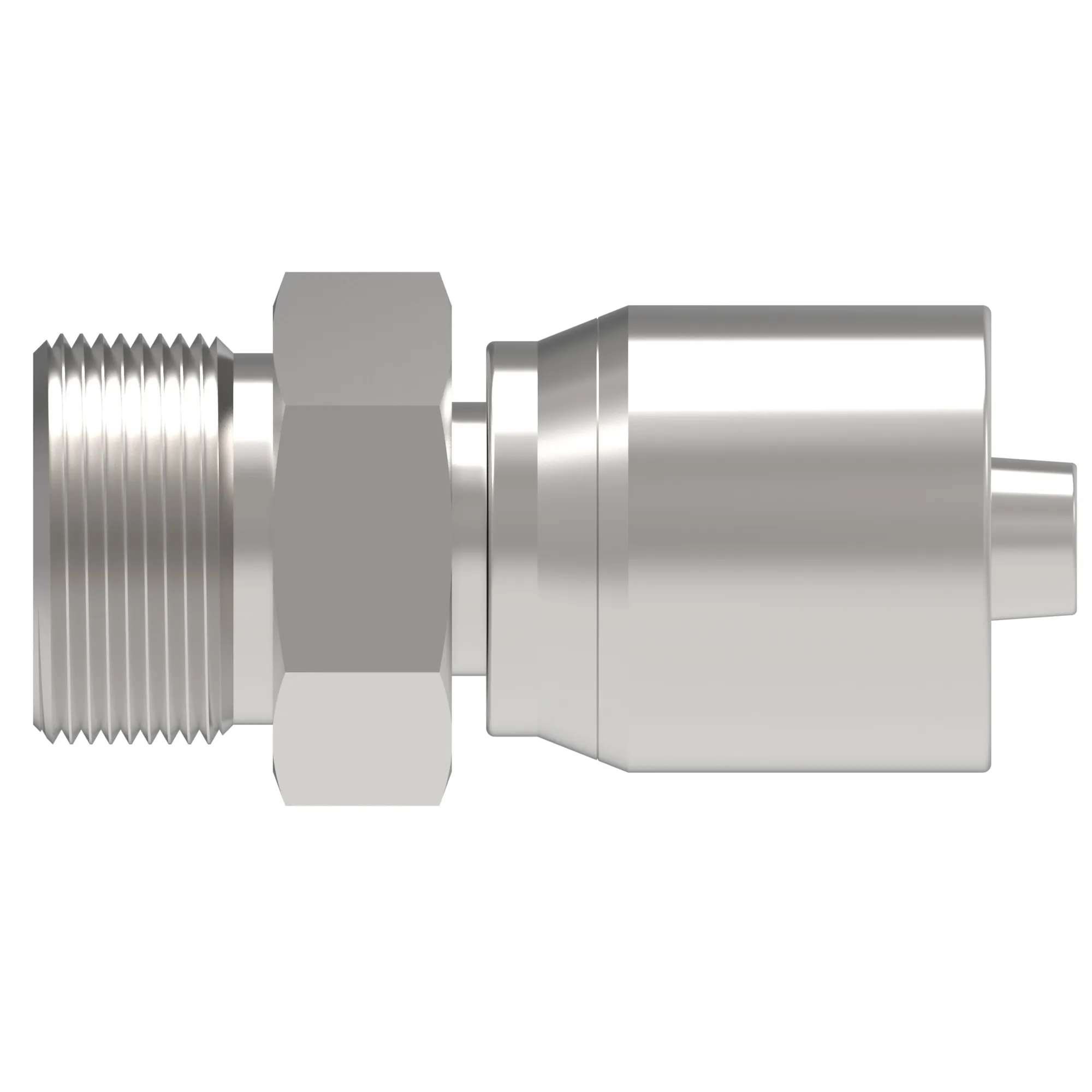

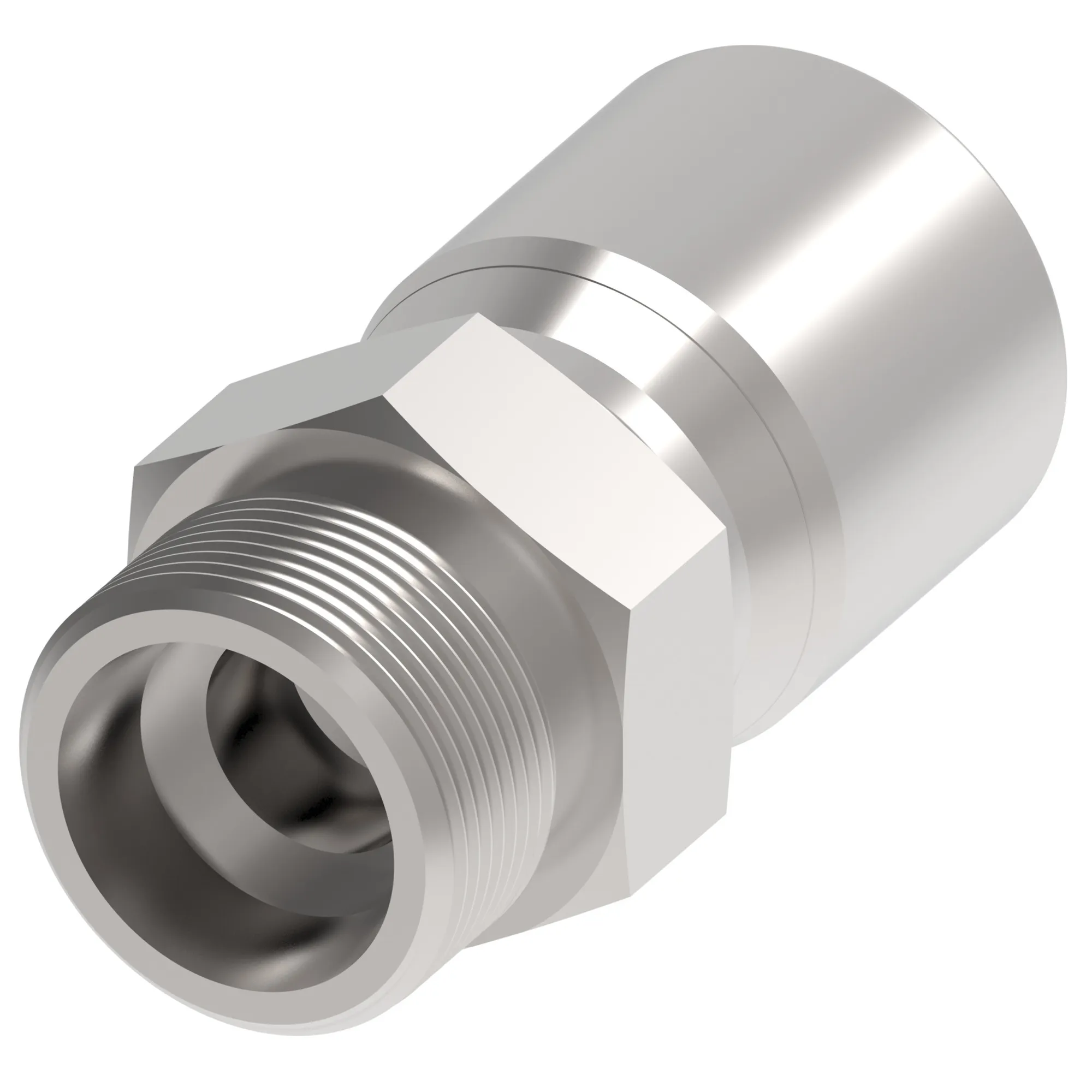

HOSE FTG, 1P/04, DKOH-B/16, CS, STR – 10511Y-16-04Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE FTG, 1P/04, DKOH-B/16, CS, STR – 10511Y-16-04Z
Specification
| A Dimension In | 2.140 |
|---|---|
| A Dimension Mm | 54.500 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.250 |
| Compatible Hose Id Mm | 6.400 |
| Construction Style | Crimp |
| End Size 1 | -16 |
| End Type 1 | 24 deg. DKO swivel heavy duty |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 0.670 |
| Hex Size 1 Mm | 17.018 |
| Hose Cut Off Factor In | 1.040 |
| Hose Cut Off Factor Mm | 26.500 |
| Hose Size | -4 |
| Inside Diameter In | 0.1500 |
| Inside Diameter Mm | 4.0000 |
| Product Height In | 0.890 |
| Product Height Mm | 22.606 |
| Product Length In | 2.140 |
| Product Length Mm | 54.356 |
| Product Material | Carbon steel |
| Product Width In | 0.890 |
| Product Width Mm | 22.606 mm |
| Thread Sealant | No |
| Thread Size 1 | M16X1.5 |
| Working Pressure Max Bar | 280 |
| Working Pressure Max Psi | 4050 |
