Danfoss (Drives) 10411-22-06Z

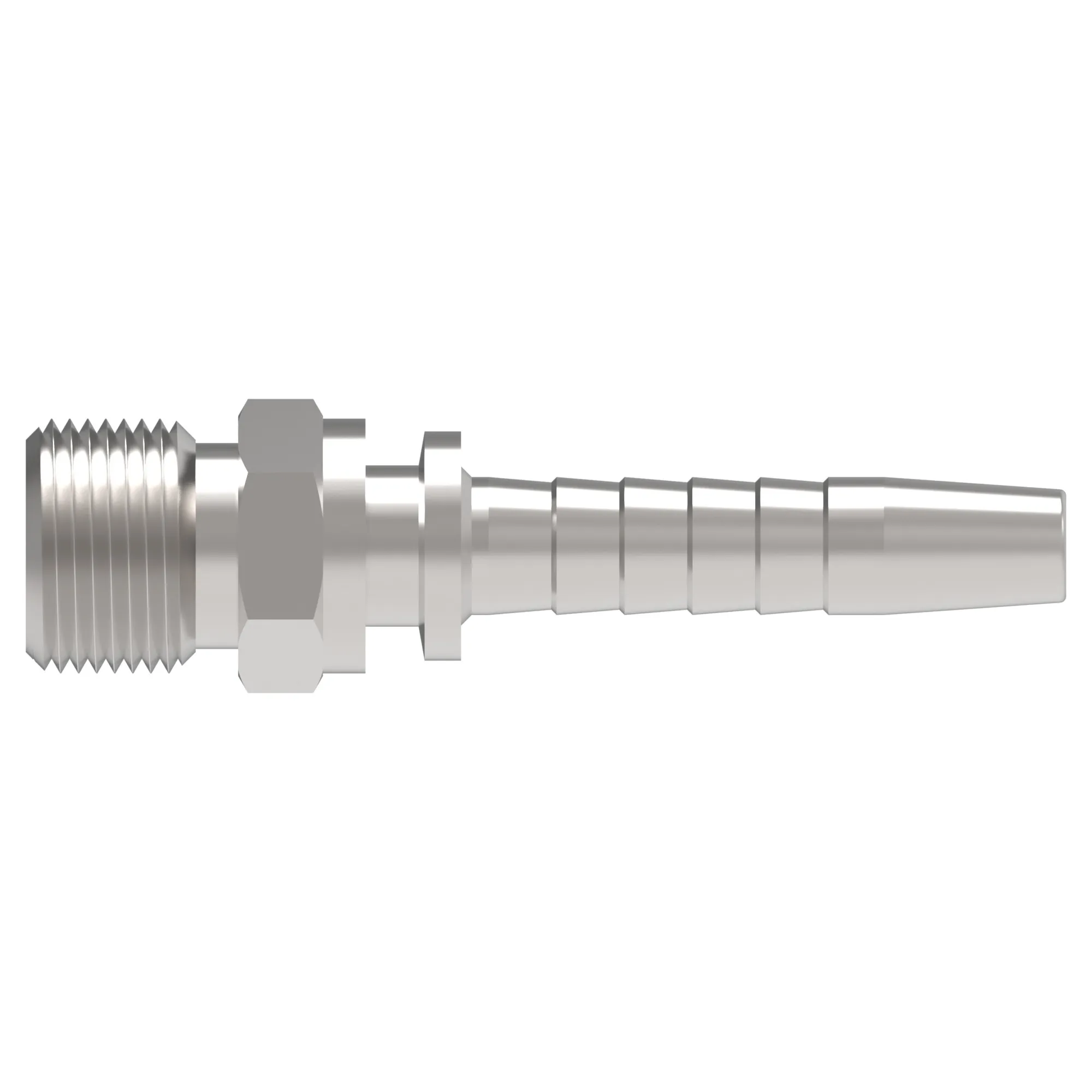

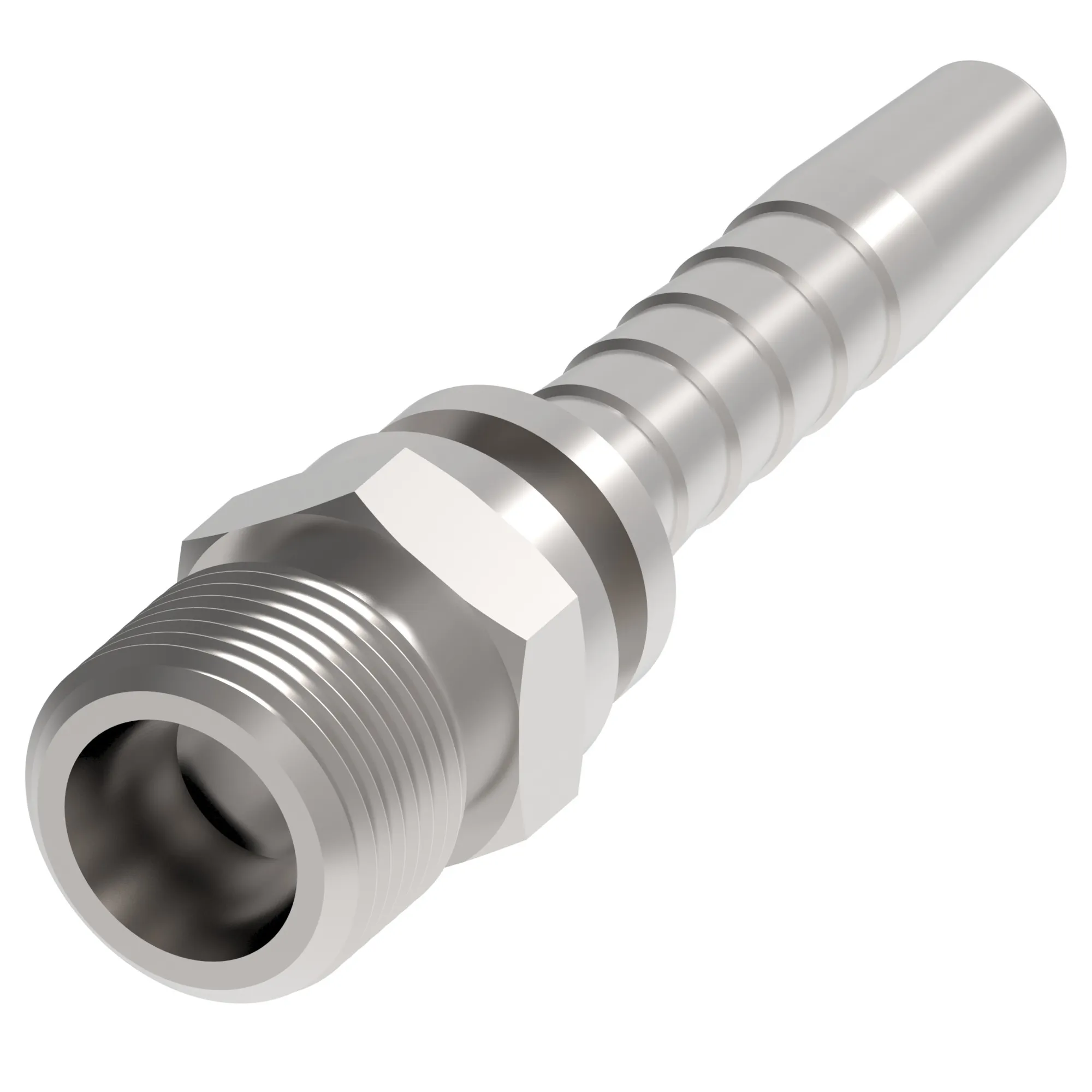

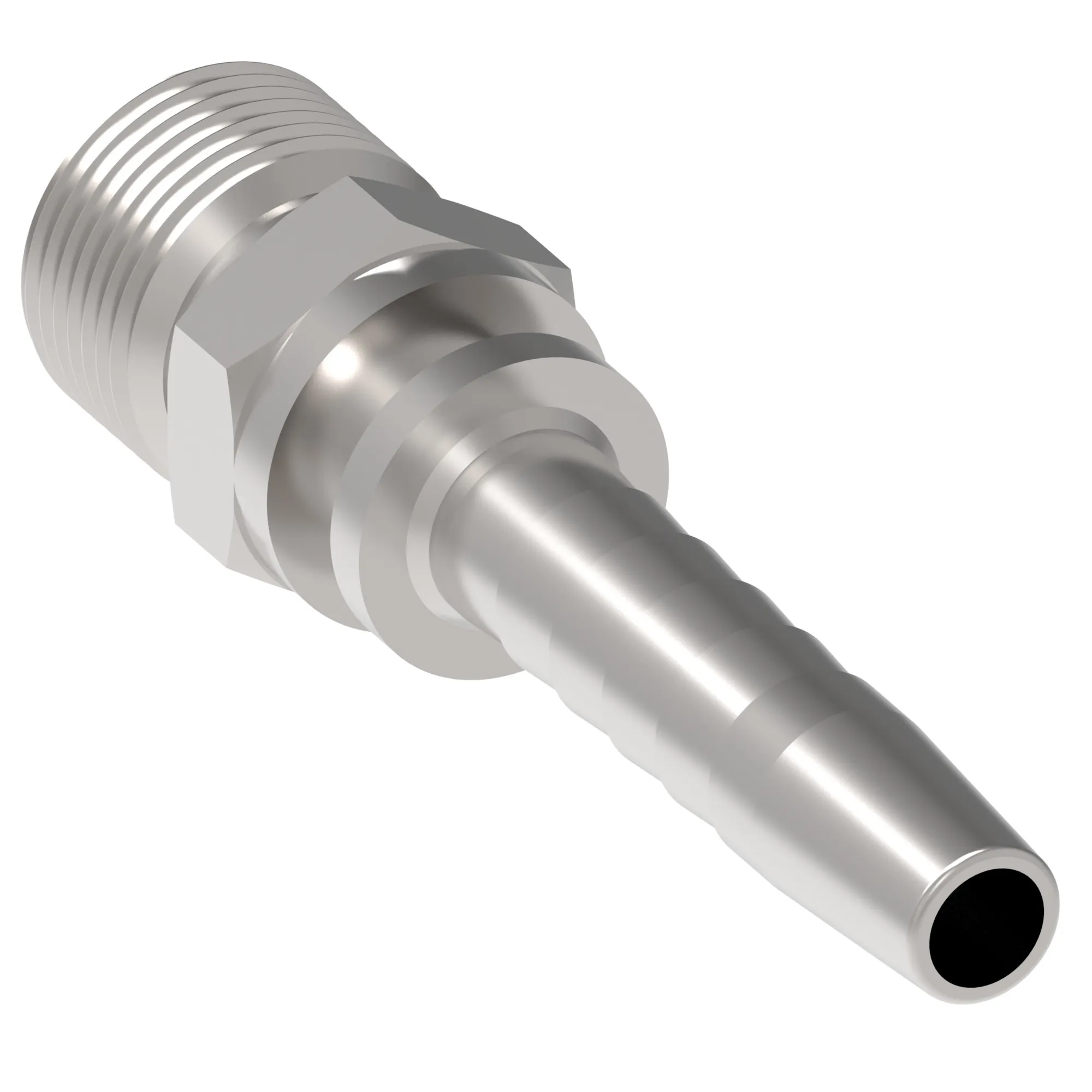

HOSE NIPPLE ASSY,2P/06,DKOL/22,CS,STR – 10411-22-06Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,2P/06,DKOL/22,CS,STR – 10411-22-06Z
Specification
| A Dimension In | 2.145 |
|---|---|
| A Dimension Mm | 54.500 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.380 |
| Compatible Hose Id Mm | 9.500 |
| Construction Style | Crimp |
| End Connection Torque | 46-50 lb-ft(62-68 Nm) |
| End Type 1 | 24 deg. DKO swivel light duty |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 0.944 |
| Hex Size 1 Mm | 24.000 |
| Hex Size 2 In | 0.000 |
| Hose Cut Off Factor In | 0.960 |
| Hose Cut Off Factor Mm | 24.500 |
| Hose Size | -6 |
| Inside Diameter In | 0.2700 |
| Inside Diameter Mm | 7.0000 |
| Product Height In | 1.091 |
| Product Height Mm | 27.701 |
| Product Length In | 2.146 |
| Product Length Mm | 54.501 |
| Product Material | Carbon steel |
| Product Width In | 0.945 |
| Product Width Mm | 24.000 mm |
| Proposition 65 | Cancer and Reproductive Harm |
| Series | Winner 2-Piece |
| Thread Size 1 | M22X1.5 |
