Description

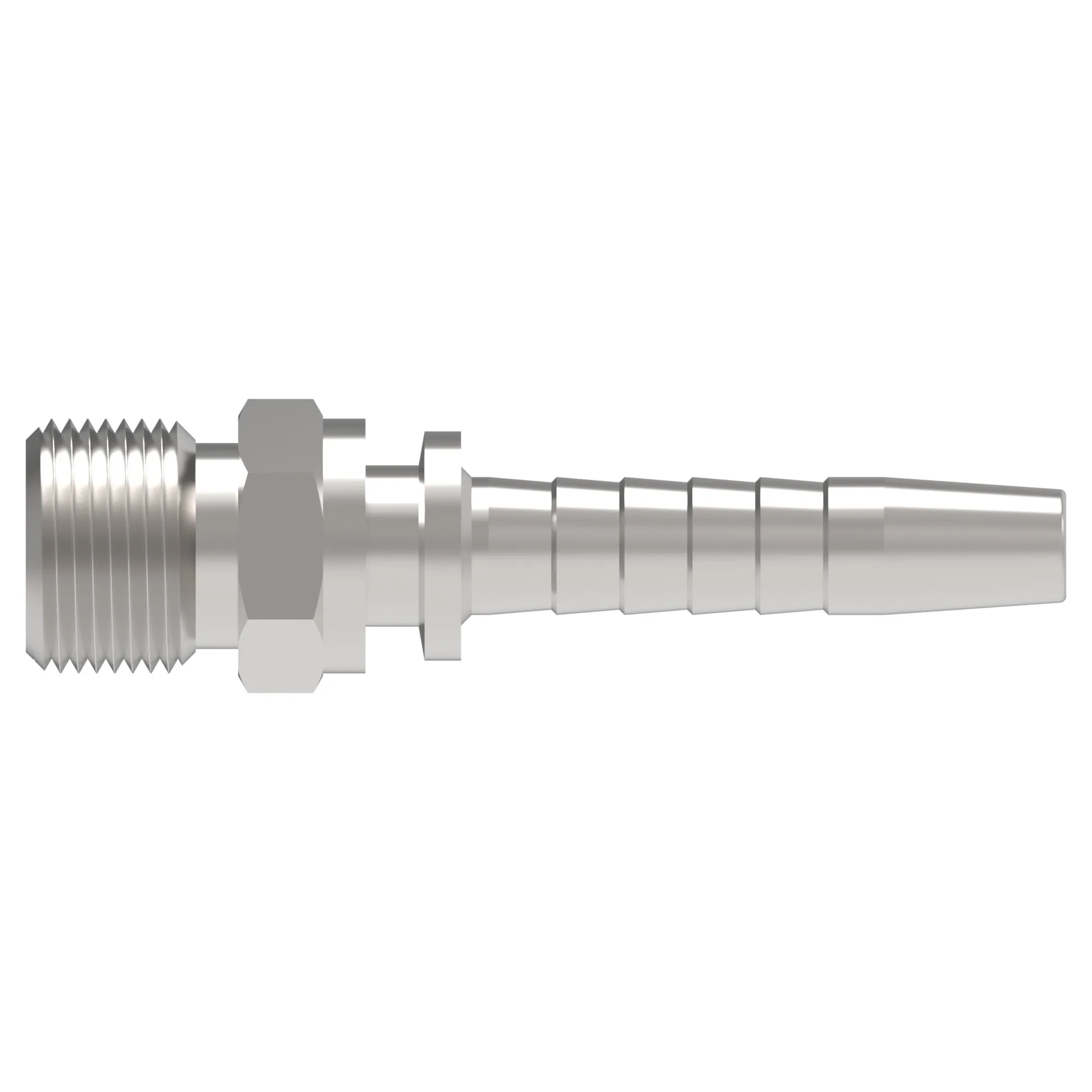

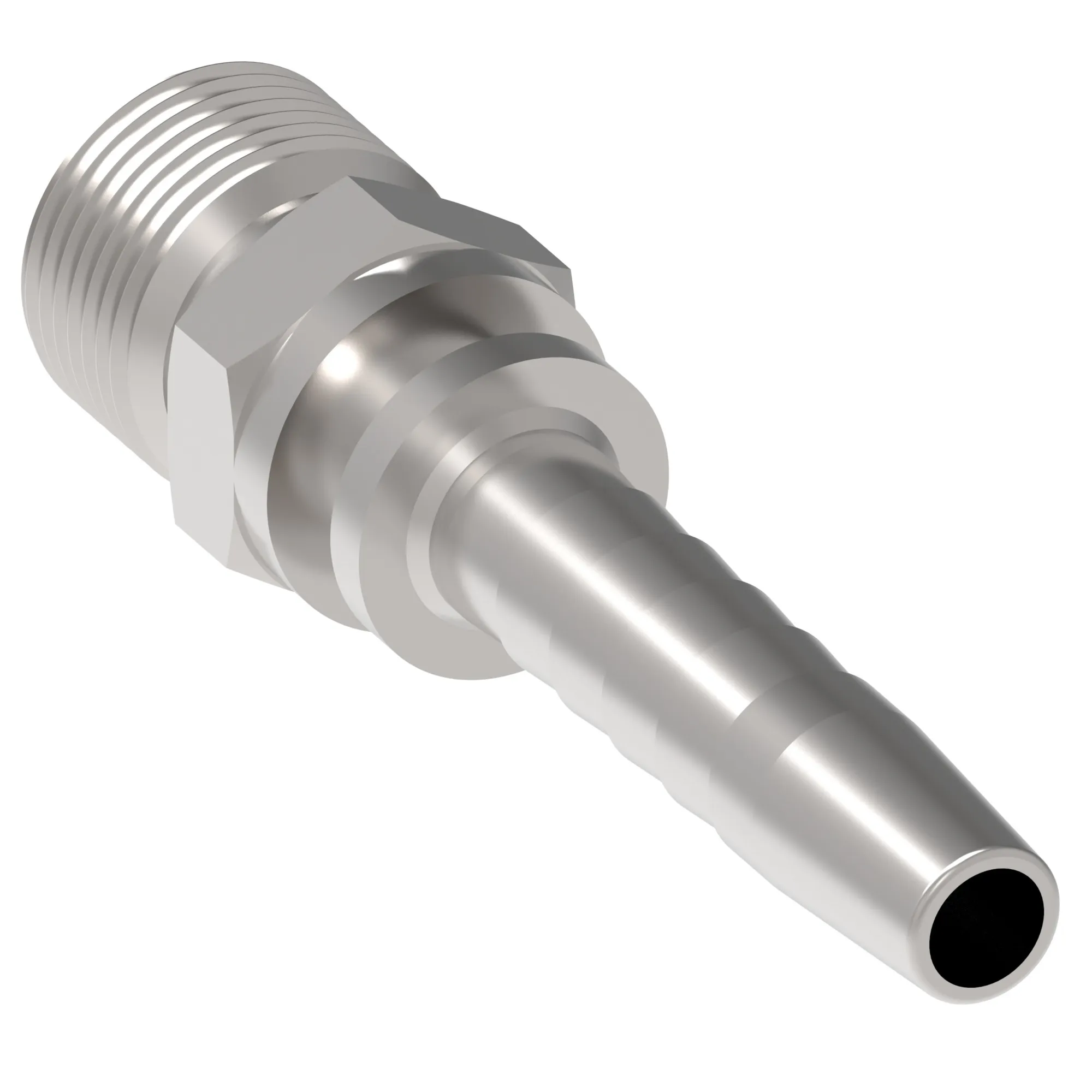

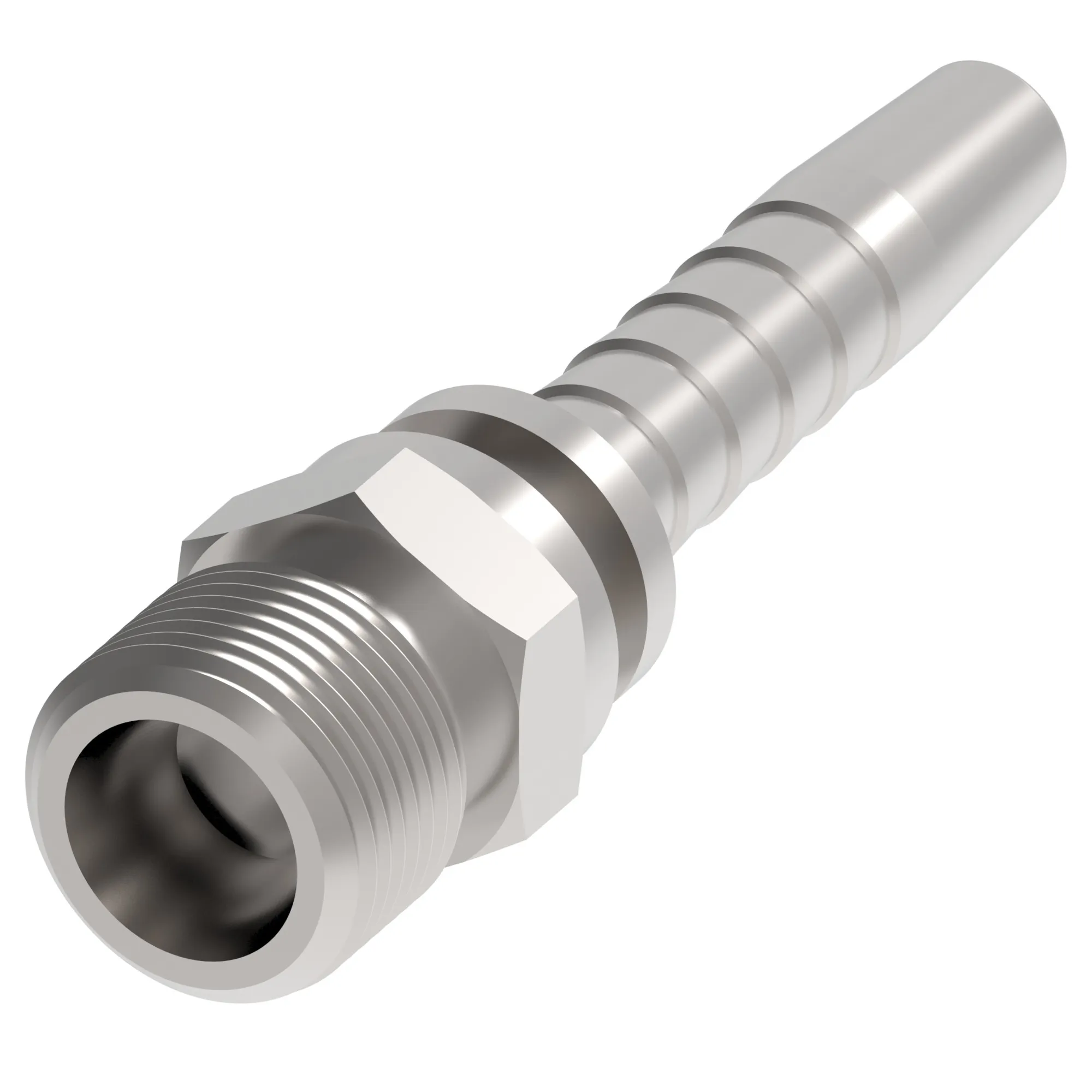

HOSE NIPPLE ASSY,2P/06,DKOL/20,CS,STR – 10411-20-06Z
Specification
| A Dimension In | 2.240 |
|---|---|
| A Dimension Mm | 57.000 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.380 |
| Compatible Hose Id Mm | 9.500 |
| Construction Style | Crimp |
| End Size 1 | -20 |
| End Type 1 | 24 deg. DKO swivel light duty |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 0.870 |
| Hex Size 1 Mm | 22.098 |
| Hose Cut Off Factor In | 1.060 |
| Hose Cut Off Factor Mm | 27.000 |
| Hose Size | -6 |
| Inside Diameter In | 0.2700 |
| Inside Diameter Mm | 7.0000 |
| Product Height In | 1.000 |
| Product Height Mm | 25.400 |
| Product Length In | 2.240 |
| Product Length Mm | 56.896 |
| Product Material | Carbon steel |
| Product Width In | 0.870 |
| Product Width Mm | 22.098 mm |
| Series | Winner 2-Piece |
| Thread Sealant | No |
| Thread Size 1 | M20X1.5 |
| Working Pressure Max Bar | 125 |
| Working Pressure Max Psi | 1800 |
