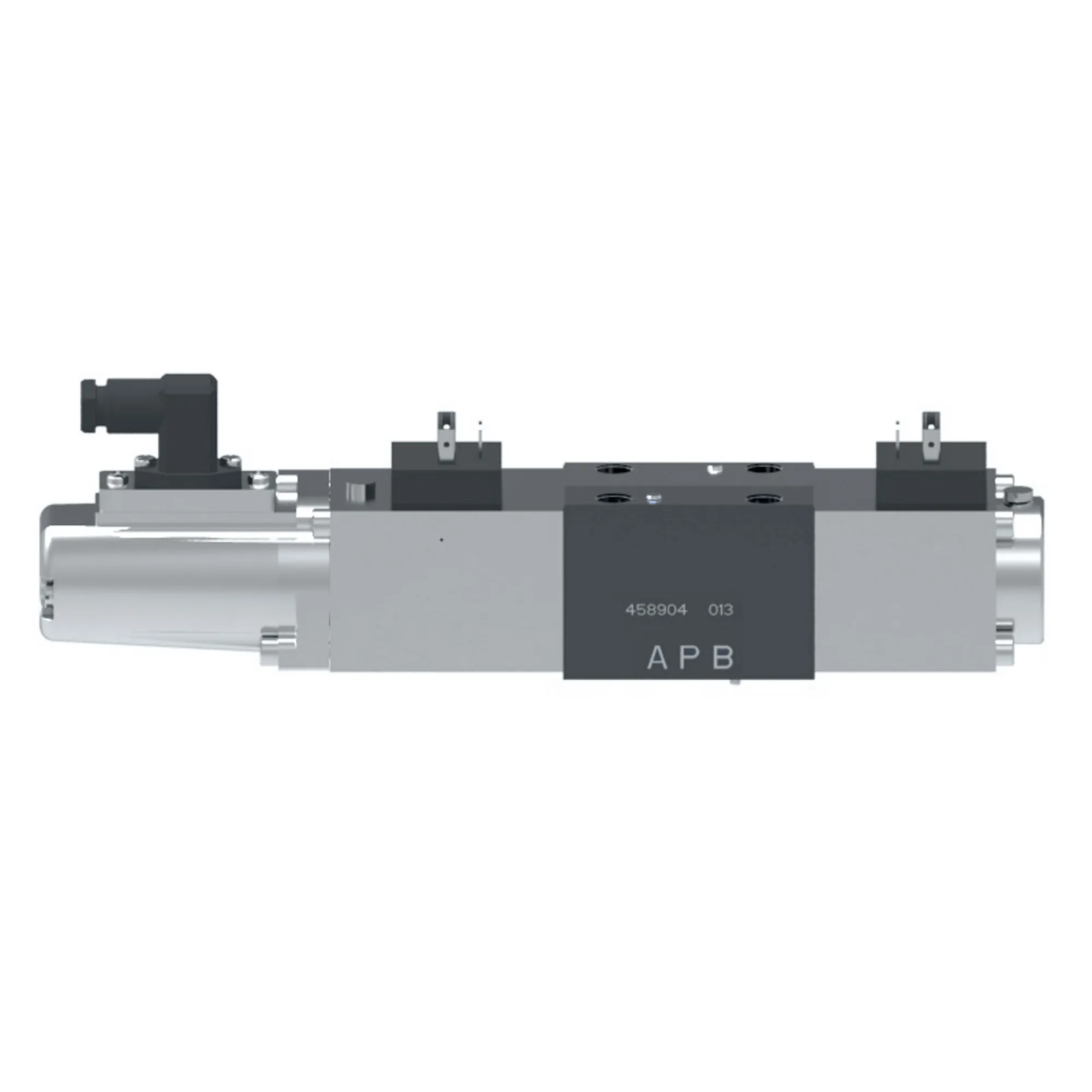

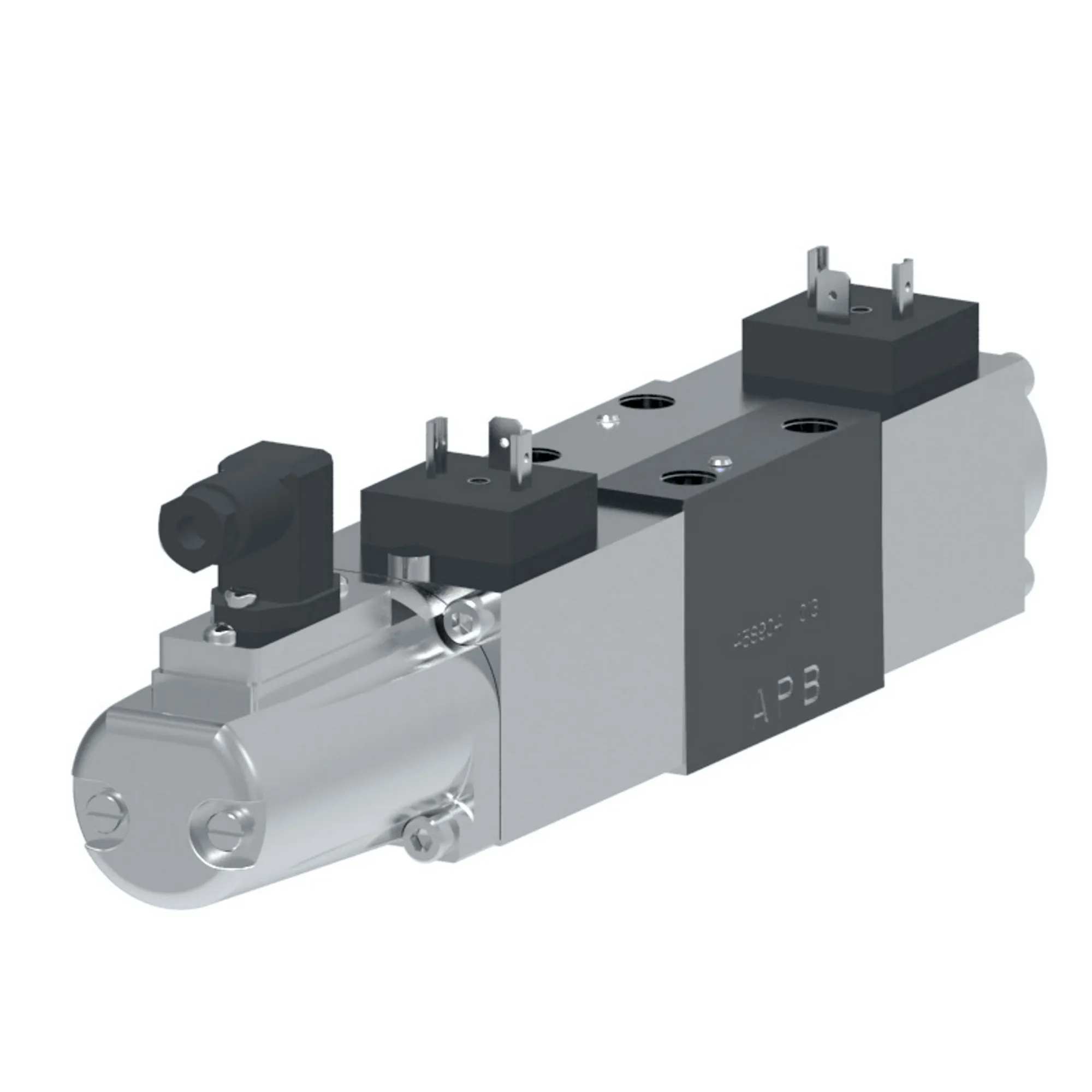

Danfoss (Drives) 02-108022
KFDG4V 3 2C03F Z VM U1 H7 20, KFDG4V32C03FZVMU1H720 – 02-108022
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
KFDG4V 3 2C03F Z VM U1 H7 20, KFDG4V32C03FZVMU1H720 – 02-108022
Specification
| A Port Flow Lpm | 3.00 |
|---|---|
| A Port Flow Usgpm | 0.80 |
| Actuation Type | Solenoid controlled |
| B Port Flow Lpm | 3.00 |
| B Port Flow Usgpm | 0.80 |
| Brand | Vickers by Danfoss |
| Build Orientation | Solenoid ‘A’ at port ‘A’ end of valve and solenoid ‘B’ at port ‘B’ end of valve |
| Build Type | Spring centered |
| Coil Voltage | 24 Volt DC |
| Command Input | None |
| Communication Protocol | None |
| Design Series | 20 Series |
| Electrical Connection | ISO4400 with fitted plugs |
| Feedback Sensor | Yes |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-03/NFPA D03/CETOP 3/NG06 |
| Manual Override | None |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 5000 |
| Metering | Fine meter in / fine meter out |
| Model Code 1 | KFDG4V32C03FZVMU1H720 |
| On Board Electronics | No |
| Performance | High |
| Product Height In | 3.430 |
| Product Height Mm | 87.122 |
| Product Length In | 10.630 |
| Product Length Mm | 270.002 |
| Product Width In | 1.890 |
| Product Width Mm | 48.006 mm |
| Profx Compatible | No |
| Reducer Module | No |
| Reverse Flow Check | No |
| Seal Type | Viton |
| Special Features | None |
| Spool Type | ISO4401-10/NFPA D10/CETOP 10/NG32 |
| Stage | Single stage |
| Symmetric Flow | Yes |
| Tank Port Rating Bar | 210 |
| Tank Port Rating Psi | 3000 |
| Valve Mount Type | Subplate |
| Valve Type | Proportional directional |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
