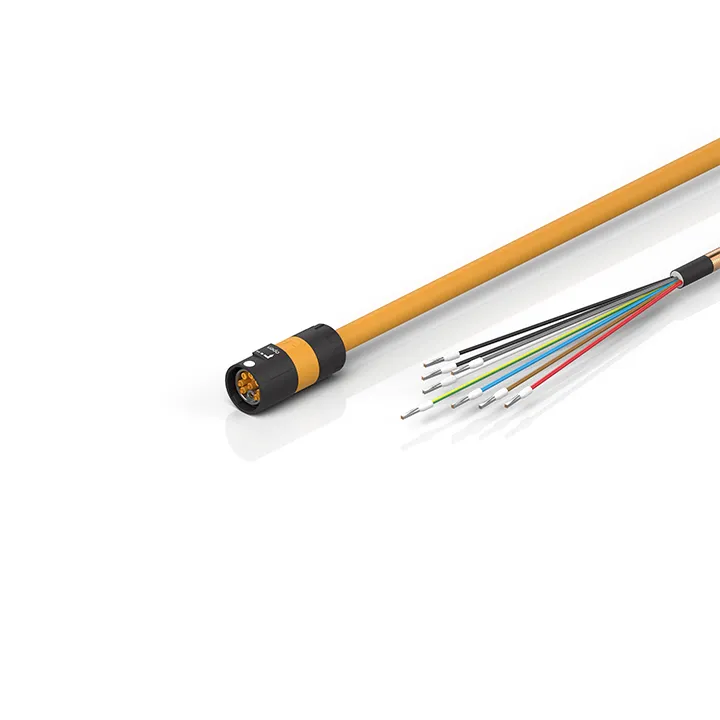

Beckhoff ZK4704-0401-2xxx
cables for fixed installation min. bending radius = 35 mm (5 x OD), (4 x 0.75 mm² + (2 x 0.25 mm²) + (2 x AWG26)) The cable is UL and CSA listed. suitable for: AM81xx with itec® plug (OCT) Servo
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
cables for fixed installation min. bending radius = 35 mm (5 x OD), (4 x 0.75 mm² + (2 x 0.25 mm²) + (2 x AWG26)) The cable is UL and CSA listed. suitable for: AM81xx with itec® plug (OCT) Servo
Specification
| Installation Size | open end |
|---|---|
| Connector Type | plug |
| Contact Type | female |
| Number Of Positions (Face) | 8-wire + shield |
| Mating Cycles | 500 |
| Wire Termination | crimp connection |
| Operating Voltage | max. 300 V AC (UL), Uo/U 300/500 V (VDE) |
| Cross Section (Power) | 0.75 mm² (approx. AWG18) |
| Cross Section (Signal) | 0.14 mm² (AWG26) |
| Use | fixed installation |
| Material Jacket | PVC (polyvinyl chloride) |
| Outer Cable Diameter | 7.0 mm ± 0.3 mm (0.2756″ ± 0.0118″) |
| Min. Bending Radius, Fixed Installation | 5 x outer cable diameter |
| Jacket Color | orange |
| A1 | 44.00 mm |
| A2 | 19.00 mm |
