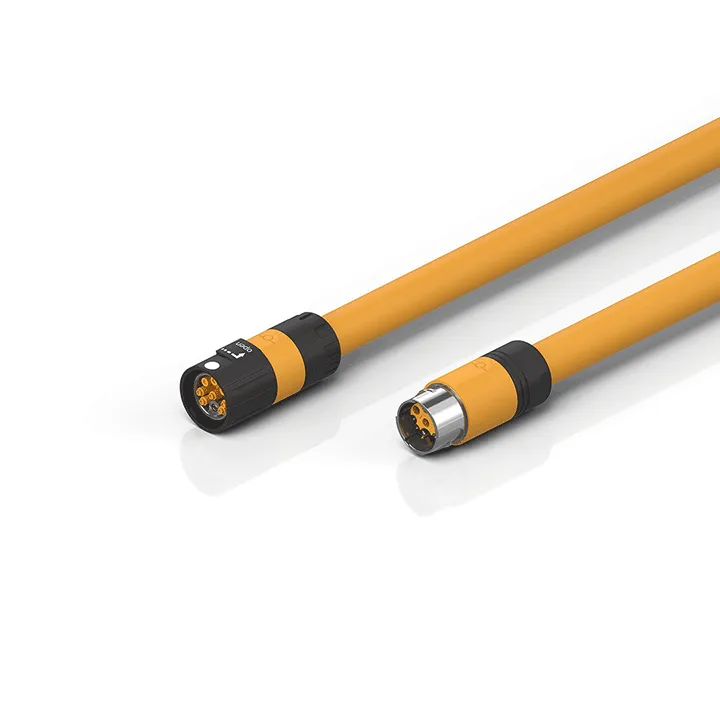

Beckhoff ZK4701-0461-2xxx
highly flexible, torsion-resistant cable with 2 mio. bending cycles, max. 240 m/min, max. 30 m/s², min. bending radius = 144 mm (12 x OD), max. drag-chain length horizontal 20 m, vertical 5 m, (4 x 0….
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
highly flexible, torsion-resistant cable with 2 mio. bending cycles, max. 240 m/min, max. 30 m/s², min. bending radius = 144 mm (12 x OD), max. drag-chain length horizontal 20 m, vertical 5 m, (4 x 0.75 mm² + (2 x 0.34 mm²) + (2 x AWG22)) The cable is UL
Specification
| Installation Size | itec® (Series 915) |
|---|---|
| Connector Type | socket |
| Contact Type | male |
| Number Of Positions (Face) | Power: 3+PE, Signal: 5 |
| Mating Cycles | 500 |
| Wire Termination | crimp connection |
| Max. Wire Cross Section | AWG16 (1.5 mm²) |
| Max. Cable Outer Diameter | 10.5 – 12.0 mm |
| Operating Voltage | max. 300 V AC (UL), Uo/U 300/500 V (VDE) |
| Cross Section (Power) | 0.75 mm² (approx. AWG18) |
| Cross Section (Signal) | AWG22 (approx. 0.34 mm²) |
| Use | suitable for torsion/robotic application |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 12.0 mm ± 0.2 mm (0.472″ ± 0.0079″) |
| Min. Bending Radius, Moved | 12 x outer cable diameter |
| Min. Bending Radius, Fixed Installation | 5 x outer cable diameter |
| Max. Number Of Cycles | 5 million |
| Jacket Color | orange |
| A1 | 44.00 mm |
| A2 | 19.00 mm |
| B1 | 44.00 mm |
| B2 | 19.00 mm |
