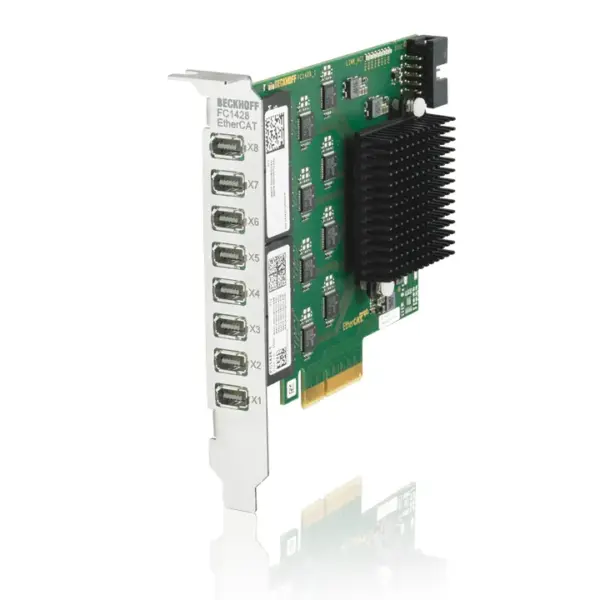

Beckhoff FC1428
The FC1428 EtherCAT card can be used to integrate an industrial PC into an EtherCAT G network as a master. The card has over eight EtherCAT G channels and a total of eight ix-Industrial® type A connec…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The FC1428 EtherCAT card can be used to integrate an industrial PC into an EtherCAT G network as a master. The card has over eight EtherCAT G channels and a total of eight ix-Industrial® type A connectors. Type ZK1096-969A-0005 adapter cables are
Specification
| Fieldbus | EtherCAT |
|---|---|
| Pc Interface | PCIe® x4 (PCIe® 2.0) |
| Number Of Channels | 8 EtherCAT master channels |
| Connections | 8 x ix Industrial® type A |
| Data Transfer Rates | 10/100/1000 Mbit/s |
| Design Form | PCIe® |
| Control Software | TwinCAT 3 runtime (XAR) from TwinCAT 3.1 Build 4026 (XAE) |
| Max. Power Consumption | 7.5 W |
| Dimensions (W X H X D) | 116 mm x 98 mm x 22 mm |
| Operating Temperature | 0…55°C |
| Storage Temperature | -20…+65°C |
| Relative Humidity | 95%, no condensation |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Approvals/Markings | CE |
