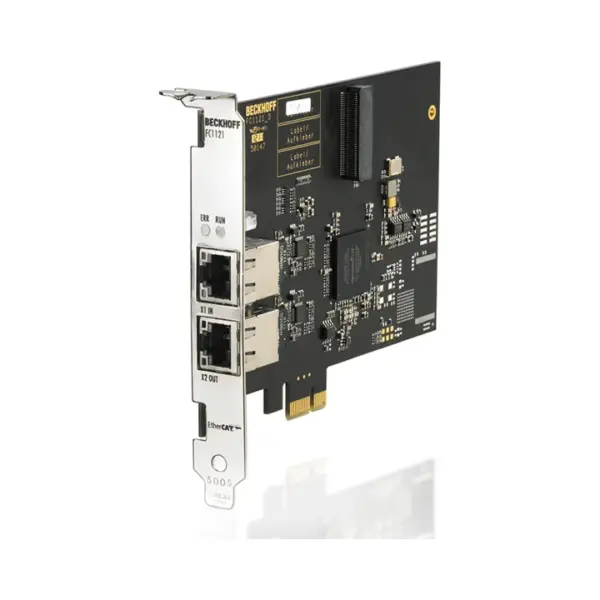

Beckhoff FC1121
The FC1121 PCIe® (PCI-Express®) EtherCAT card can be used to integrate a PC as a slave in an EtherCAT network. The card has an EtherCAT channel with two ports (IN/OUT) and can be used in three ways: –…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The FC1121 PCIe® (PCI-Express®) EtherCAT card can be used to integrate a PC as a slave in an EtherCAT network. The card has an EtherCAT channel with two ports (IN/OUT) and can be used in three ways: – Under TwinCAT it is simply recognized as an EtherCAT
Specification
| Fieldbus | EtherCAT (direct mode) |
|---|---|
| Pc Interface | PCI Express® x1 |
| Number Of Ethercat Ports | 2 x RJ45, EtherCAT IN/OUT |
| Data Transfer Rates | 100 Mbit/s |
| Ethercat Slave Controller | FPGA |
| R A M | 8 kbytes |
| Sync Manager | 4 |
| F M M Us | 3 |
| Cable Length | up to 100 m |
| Hardware Diagnostics | 2 LEDs per channel, activity, link |
| Driver | TwinCAT driver for EtherCAT, support in the EtherCAT Slave Stack Code ET9300 |
| Dimensions (W X H X D) | single slot, approx. 100 mm x 130 mm |
| Operating Temperature | 0…55°C |
