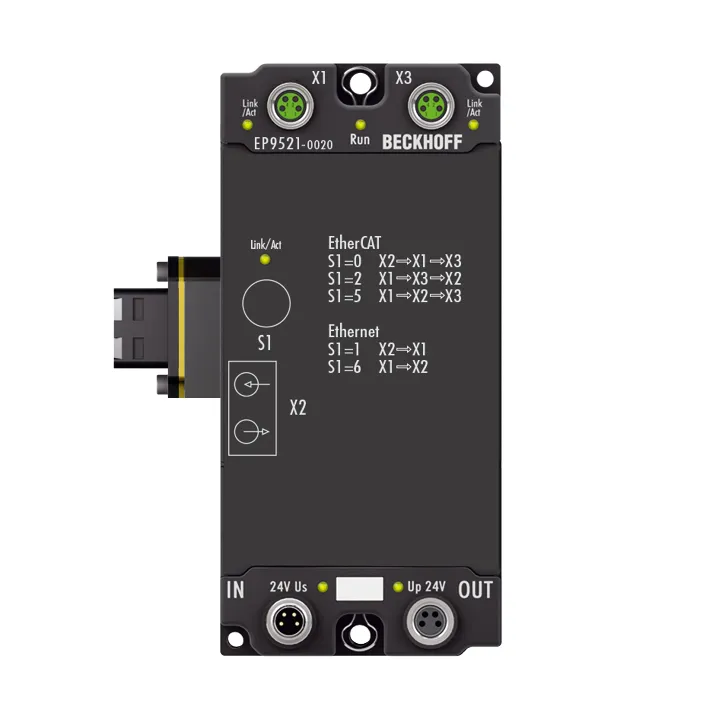

Beckhoff EP9521-0020
The EtherCAT/Industrial Ethernet module EP9521-0020 for Industrial Fast Ethernet/100 Mbit/s serves as media converter from optical fiber to copper and vice versa. The media converter is suitable for m…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The EtherCAT/Industrial Ethernet module EP9521-0020 for Industrial Fast Ethernet/100 Mbit/s serves as media converter from optical fiber to copper and vice versa. The media converter is suitable for multi-mode fiber-optic cables and is used for direct
Specification
| Protocol | EtherCAT/Industrial Fast Ethernet |
|---|---|
| Bus Interface | 1 x LC Duplex; 2 x M8, shielded |
| Task Within Ethercat System | media transition from M8 copper physics to multi-mode fiber optic and back |
| Number Of Channels | 1 |
| Data Transfer Medium | multi-mode glass fiber 50/125 µm; Ethernet/EtherCAT cable (min. Cat.5), shielded |
| Distance Between Stations | max. 2000 m (100BASE-FX); max. 100 m (100BASE-TX) |
| Delay | approx. 1 µs |
| Data Transfer Rates | 100 Mbit/s |
| Configuration | per rotary switch |
| Power Supply | 24 V DC (-15%/+20%) |
| Dimensions (W X H X D) | 60 mm x 126 mm x 26.5 mm |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. Rating/Installation Pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/Markings | CE, UL |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
