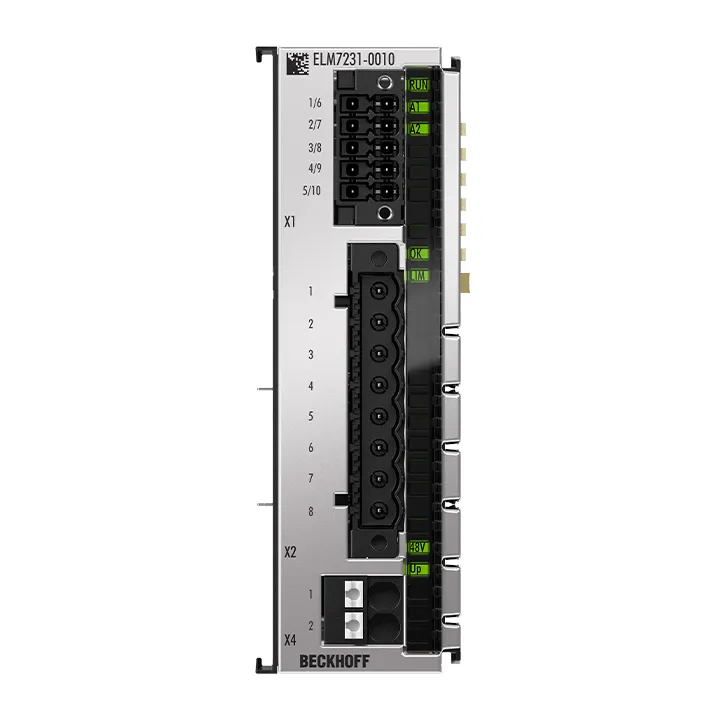

Beckhoff ELM7231-0010
The ELM72xx-0010 servomotor EtherCAT Terminal with integrated absolute value interface offers high servo performance in a very compact design. The fast control technology, based on field-oriented curr…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The ELM72xx-0010 servomotor EtherCAT Terminal with integrated absolute value interface offers high servo performance in a very compact design. The fast control technology, based on field-oriented current and PI speed control, supports fast and highly
Specification
| Technology | compact drive technology |
|---|---|
| Load Type | permanent magnet-excited three-phase synchronous motor |
| Number Of Channels | 1 |
| Number Of Outputs | 1 x servomotor, 1 x motor brake, 1 x braking resistor |
| Number Of Inputs | 2 x digital input, 1 x feedback |
| Connection Technology | direct motor connection with OCT |
| Supply Voltage Electronics | 24 V DC (via power contacts) |
| Supply Voltage Power | 8…48 V DC (external) |
| Output Current (Rms) | 16 A |
| Peak Current (Rms) | max. 30 A for 1 s |
| Pwm Clock Frequency | 16 kHz |
| Current Controller Frequency | 32 kHz |
| Rated Speed Controller Frequency | 16 kHz |
| Rotating Field Frequency | 0…599 Hz |
| Output Voltage Motor Brake | 24 V DC |
| Output Current | max. 0.7 A |
| Power Loss | typ. 10 W |
| Current Consumption Power Contacts | typ. 100 mA + holding current motor brake |
| Current Consumption E Bus | 120 mA |
| Distributed Clocks | yes |
| Special Features | compact (30 mm wide), absolute feedback, One Cable Technology (OCT) |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Weight | approx. 390 g |
| Operating Temperature | 0…55°C |
| Storage Temperature | -25…+85°C |
| Relative Humidity | 95%, no condensation |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. Rating/Installation Pos. | IP20/see documentation |
| Approvals/Markings | CE, UL |
| Design Form | metal housing with signal LEDs |
| Material | zinc die-cast |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Wiring | specific push-in connection |
| Dimensions (W X H X D) | 30 mm x 100 mm x 95 mm |
