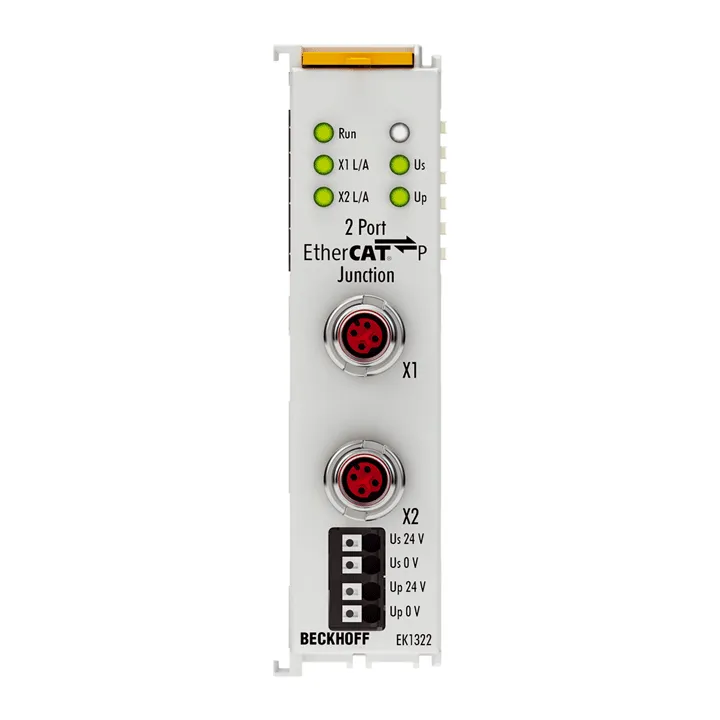

Beckhoff EK1322
The EK1322 2-port EtherCAT P junction can be used in an EtherCAT Terminal segment at any desired position between the EtherCAT Terminals and enables configuration of EtherCAT P star topologies. A modu…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The EK1322 2-port EtherCAT P junction can be used in an EtherCAT Terminal segment at any desired position between the EtherCAT Terminals and enables configuration of EtherCAT P star topologies. A modular EtherCAT P star hub can be realized by using
Specification
| Task Within Ethercat System | coupling of EtherCAT P junctions |
|---|---|
| Data Transfer Medium | EtherCAT P cable, shielded, to 100BASE-TX EtherCAT P networks |
| Bus Interface | 2 x M8 socket, P-coded, shielded |
| Power Supply | external feed-in: 24 V DC (-15 %/+20 %) for US and UP |
| Sum Current | max. 3 A per US and UP for all EtherCAT P ports in total |
| Current Consumption From Us | typ. 3 mA |
| Current Consumption From Up | typ. 3 mA |
| Current Consumption E Bus | 200 mA |
| Operating Temperature | -25…+55°C |
| Storage Temperature | -40…+85°C |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. Rating/Installation Pos. | IP20/variable |
| Approvals/Markings | CE, UL |
| Design Form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side By Side Mounting By Means Of | double slot and key connection |
| Marking | – |
| Wiring | depending on module |
| Connection Cross Section | s*: 0.2…1.5 mm², st*: 0.2…1.5 mm², f*: 0.25…0.75 mm² |
| Connection Cross Section Awg | s*: AWG28…14, st*: AWG28…14, f*: AWG28…14 |
| Stripping Length | 8…9 mm |
| Dimensions (W X H X D) | 24 mm x 100 mm x 52 mm without connector |
