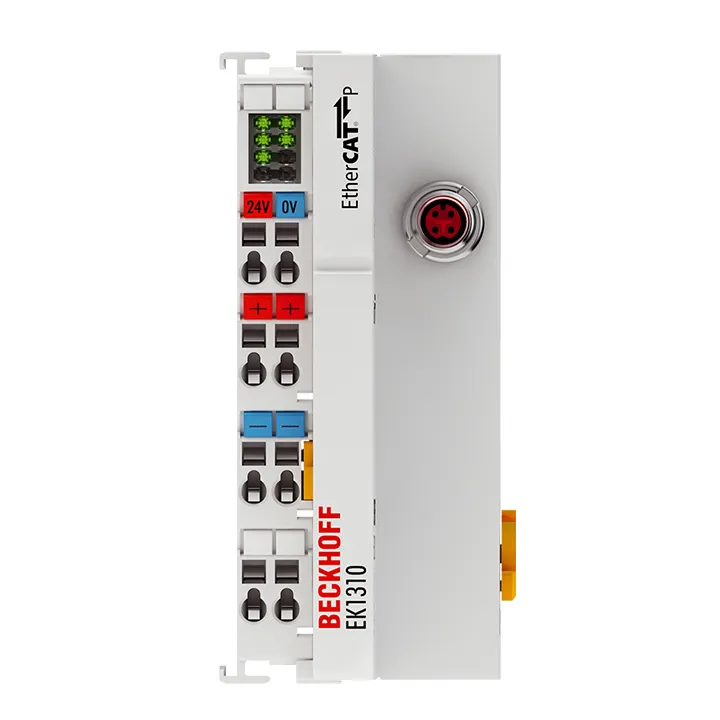

Beckhoff EK1310
The EK1310 EtherCAT P power supply offers the option of converting from an EtherCAT segment, which is configured via an EtherCAT Coupler or an Embedded PC from the CX series, to EtherCAT P or extendin…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The EK1310 EtherCAT P power supply offers the option of converting from an EtherCAT segment, which is configured via an EtherCAT Coupler or an Embedded PC from the CX series, to EtherCAT P or extending an EtherCAT P network in line topology. Special
Specification
| Task Within Ethercat System | conversion of the E-bus signals to 100BASE-TX Ethernet for feed-in in the EtherCAT P network |
|---|---|
| Data Transfer Medium | EtherCAT P cable, shielded, to 100BASE-TX EtherCAT P networks |
| Bus Interface | 1 x M8 socket, shielded, screw type, P-coded |
| Power Supply | external feed-in: 24 V DC (-15 %/+20 %) for US and UP |
| Sum Current | max. 3 A per US and UP |
| Current Consumption From Us | typ. 3 mA |
| Current Consumption From Up | typ. 3 mA |
| Current Rating Per Port | max. 3 A per US and UP |
| Current Consumption E Bus | typ. 110 mA |
| Electrical Isolation | 500 V (supply voltage Us/supply voltage Up/EtherCAT) |
| Storage Temperature | -40…+85°C |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. Rating/Installation Pos. | IP20/variable |
| Approvals/Markings | CE, UL |
| Design Form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side By Side Mounting By Means Of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection Cross Section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection Cross Section Awg | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping Length | 8…9 mm |
| Current Load Power Contacts | Imax: 10 A |
| Dimensions (W X H X D) | 44 mm x 100 mm x 68 mm |
