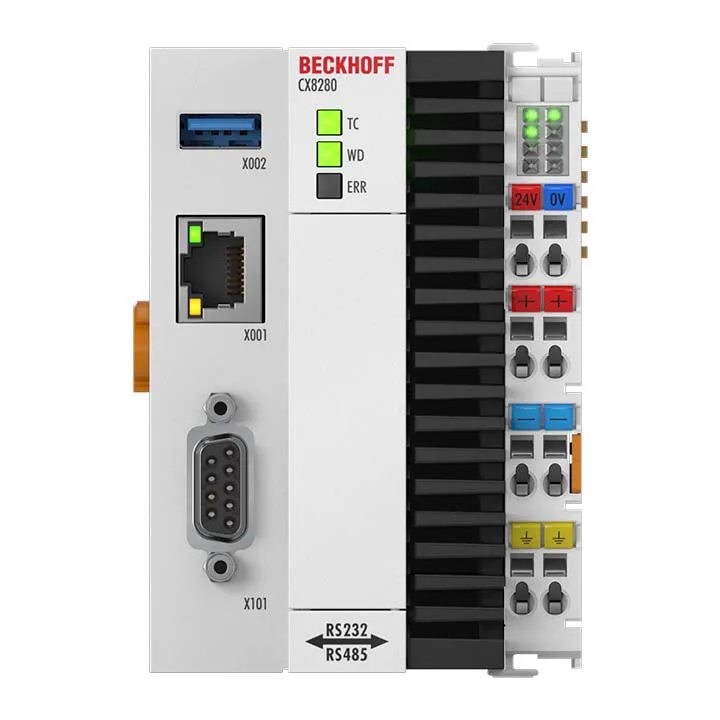

Beckhoff CX8280
The CX8280 Embedded PC has two serial interfaces, one with RS232 and one with RS485 physics. These are both located on the D-sub socket. They are not bound to any particular protocol and can be used w…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The CX8280 Embedded PC has two serial interfaces, one with RS232 and one with RS485 physics. These are both located on the D-sub socket. They are not bound to any particular protocol and can be used with the corresponding TwinCAT 3 Functions for the
Specification
| Processor | Arm® Cortex®-A53, 1.2 GHz |
|---|---|
| Number Of Cores | 2 |
| Flash Memory | slot for microSD card, card not included (requires a microSD card with a minimum capacity of 16 GB) |
| Main Memory | 1 GB LPDDR4 RAM (not expandable) |
| 1 Second Ups | integrated (1 MB on microSD card) |
| Interfaces | 1 x RJ45 10/100/1000 Mbit/s, 1 x USB 3.0, 1 x bus interface |
| Cooling | passive |
| Bus Interface | D-sub socket, 9-pin, 1 x RS232, 1 x RS485 |
| Data Transfer Rates | 300 baud…115 kbaud |
| Diagnostics Led | 1 x TC status, 1 x WD, 1 x error |
| Clock | internal, capacitor-buffered real-time clock for time and date (storage capacity > 21 days) |
| Operating System | Beckhoff RT Linux® |
| Control Software | TwinCAT 3 runtime (XAR) from TwinCAT 3.1 Build 4026 (XAE) |
| I/O Connection | E-bus or K-bus, automatic recognition |
| Power Supply | 24 V DC (-15%/+20%) |
| Ups Oct Capable | no |
| Current Supply E Bus/K Bus | 2 A |
| Max. Power Consumption | 4 W |
| Max. Power Consumption (With Loading Ups) | 7.5 W |
| Max. Power Consumption E Bus/K Bus | 10 W (5 V/max. 2 A) |
| Dimensions (W X H X D) | 71 mm x 100 mm x 73 mm |
| Weight | approx. 220 g |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, no condensation |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection Rating | IP20 |
| Approvals/Markings | CE, UL |
| Twincat 3 Platform Level | Economy (20); please see here for an overview of all the TwinCAT 3 platform level |
