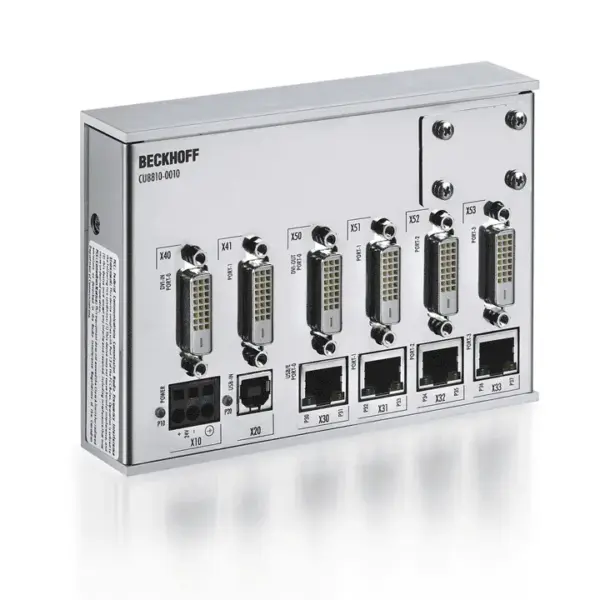

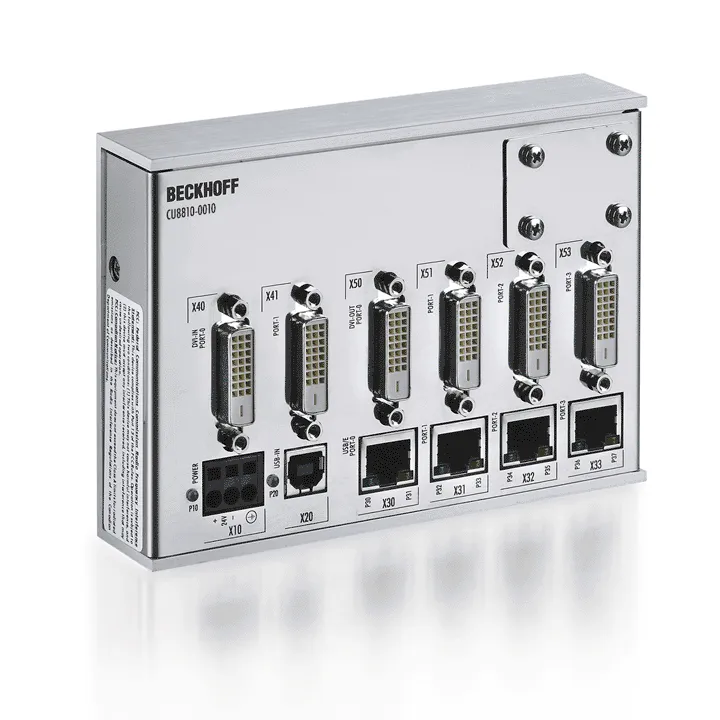

Beckhoff CU8810-0010
A common application in machine and plant construction is the simultaneous display of a PC screen on several monitors. Up to four CP29xx-0000, CP39xx-0000, CP69xx-0010 or CP79xx-0010 DVI/USB Control P…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
A common application in machine and plant construction is the simultaneous display of a PC screen on several monitors. Up to four CP29xx-0000, CP39xx-0000, CP69xx-0010 or CP79xx-0010 DVI/USB Control Panels can be connected to a PC via the CU8810-0010 DVI
Specification
| Type | DVI splitter with USB 2.0 extension for CP29xx-0000, CP39xx-0000, CP69xx-0010 and CP79xx-0010 |
|---|---|
| Special Features | compact industrial design |
| Housing | metal housing for DIN rail installation |
| Interfaces | 2 DVI-D inputs and 4 DVI-D outputs; 1 USB input with USB B socket and 4-port USB hub with 4 USB Extended 2.0 outputs as RJ45 connectors |
| Dvi Data Range | up to 1.65 Gbit/s |
| Usb Transfer Rate | up to 480 Mbit/s according to USB 2.0 |
| Power Supply | 24 V DC |
| Dimensions (W X H X D) | 146.5 mm x 100 mm x 38 mm |
| Operating Temperature | 0…55°C |
| Protection Rating | IP20 |
| Additional Information | assignment of the 4 DVI outputs to the 2 inputs freely configurable via DIP switches; unused DVI input and outputs can be switched off to save energy |
