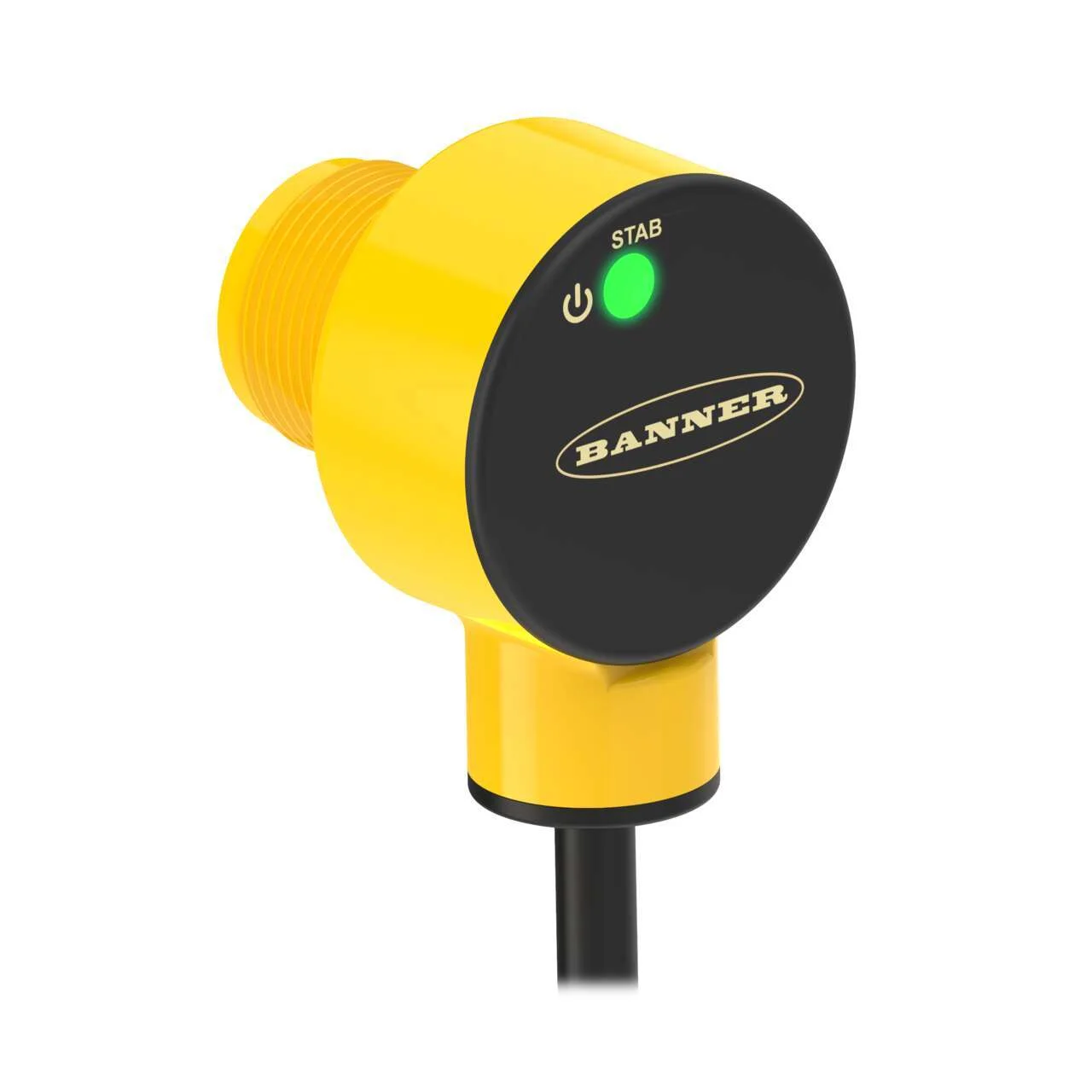

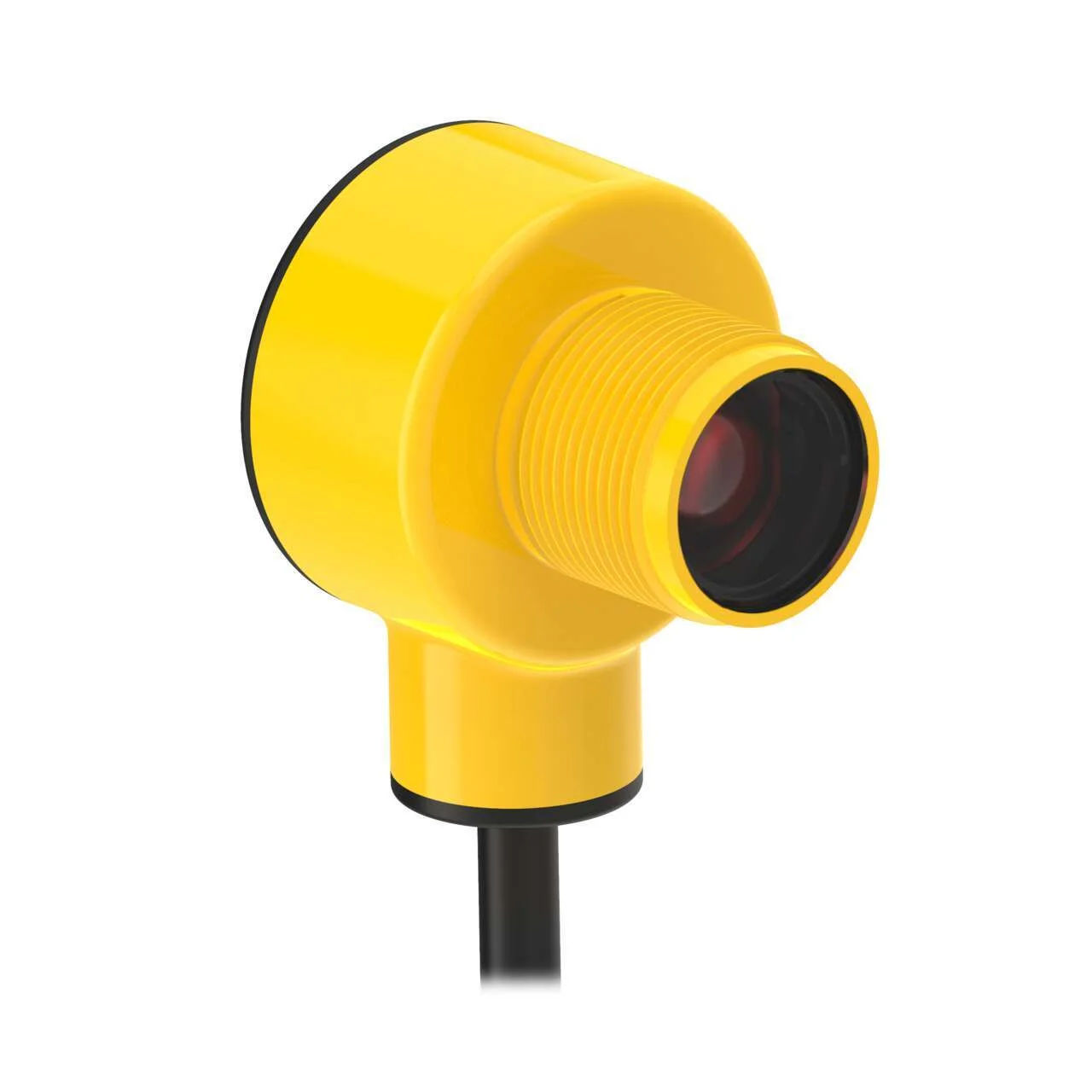

Banner Engineering T18-2NAEJ-2M
T18-2 Series: Emitter with Beam Inhibit Input
Range: 25 m; Input: 10-30 V dc
Outputs: none; Input: Beam Inhibit
2 m 3-conductor PVC Cable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
T18-2 Series: Emitter with Beam Inhibit Input
Range: 25 m; Input: 10-30 V dc
Outputs: none; Input: Beam Inhibit
2 m 3-conductor PVC Cable
Specification
| Power | DC |
|---|---|
| Sensing Beam | Visible Red LED |
| Cable Length (M) | 2 |
| Ip Rating | IP67, IP68, IP69K |
| Nema / Ul Type Rating | NEMA 4X |
| Supply Voltage | 10-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Emitter |
| Housing Style | Barrel |
| Primary Housing Material | Thermoplastic |
| Max Sensing Distance (Mm) | 25000 |
| Connection | Cable |
| Operation | N/A |
| Min Op. Temperature (C) | -40 |
| Max Op. Temp. (C) | 70 |
| Output Response Time (Ms) | N/A |
| Special Feature: Intrinsically Safe | No |
| Special Feature: Remote Teach | No |
| Special Feature: Water Detection | No |
| Sensing Beam Wavelength | 624 |
| Delay At Power Up (Ms) | 500 |
| Repeatability (µS) | 170 |
| Number Of Pins | 2 |
| Max Op. Relative Humidity [%] | 95% @ 50°C |
| Lens Material | Acrylic |
| Adjustments | N/A |
| Barrel Diameter (Mm) | 18 |
| Indicator | Indicator LEDs |
| Opposed Mode Emitter/Receiver | Emitter |
| Feature: Washdown Rated | Yes |
| Feature: Clear Object Detection | No |
| Feature: Timing (Hold/Delay) | No |
| Feature: Ecolab Certified | Yes |
| Feature: Encapsulated | Yes |
| Feature: Chemical Resistant | Yes |
| Feature: Quick Disconnect | No |
| Feature: Health/Marginal Signal Output | No |
| Device Net | No |
