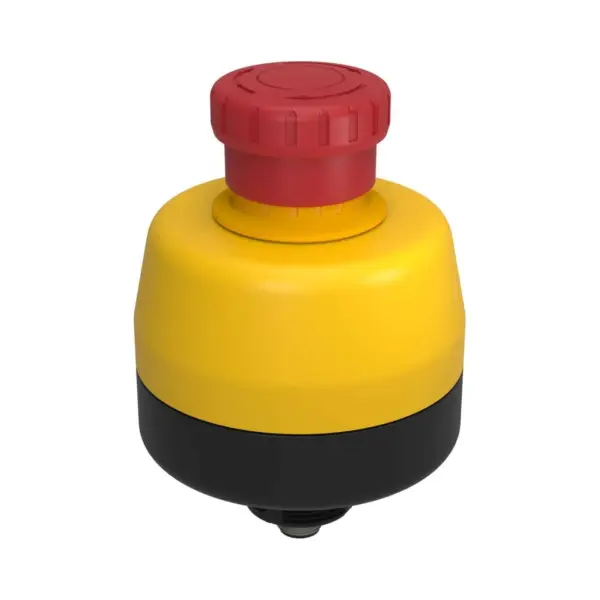

Banner Engineering SSA-EB1P-02ECQ4

SSA-EB1 30 mm Mount Emergency Stop Push Button. Part number: 25298. model: SSA-EB1P-02ECQ4. part_number: 25298. list_price: 171 USD. is_new: 0. is_in_stock: 1. product_manual: —. BAN_InSeriesDiagnostics: No. BAN_Illuminated: No. BAN_Safety_ES_RP_IlluminType: —. BAN_Safety_ES_RP_Armed_Color: —. BAN_Safety_ES_RP_Actuated_Colo: —. BAN_Washdown_Rated: No. BAN_Actuation: Twist/Pull-to-Release. BAN_Safety_ES_RP_Button_Dia: 40. BAN_Safety_ES_RP_ButtonShroud: No. Connection Type: M12. Min Operating Temperature (C): -25. Max Operating Temperature (C): 55. Button Shroud: No. IP Rating: IP65. Item Status: RELEASED. Housing Style: Base. Device Type: Push Button. Primary Housing Material: Polycarbonate. In-Series Diagnostics: No. Actuation: Twist/Pull-to-Release. Connection: Integral QD. Feature: Washdown Rated: No. Feature: Illuminated: No. Feature: Lockable: No. Feature: Quick Disconnect: Yes. Mounting Thread/Style: 30 mm. Contact Quantity: 2 NC. Contact Rating: 2 A @ 24 V dc. Button Diameter (mm): 40. Actuator/Button Material: Thermoplastic. Dimensions (HxWxD mm ): 120 x 80. EPLAN Status: Published. EPLAN Original Sent Date: 06/20/2022
