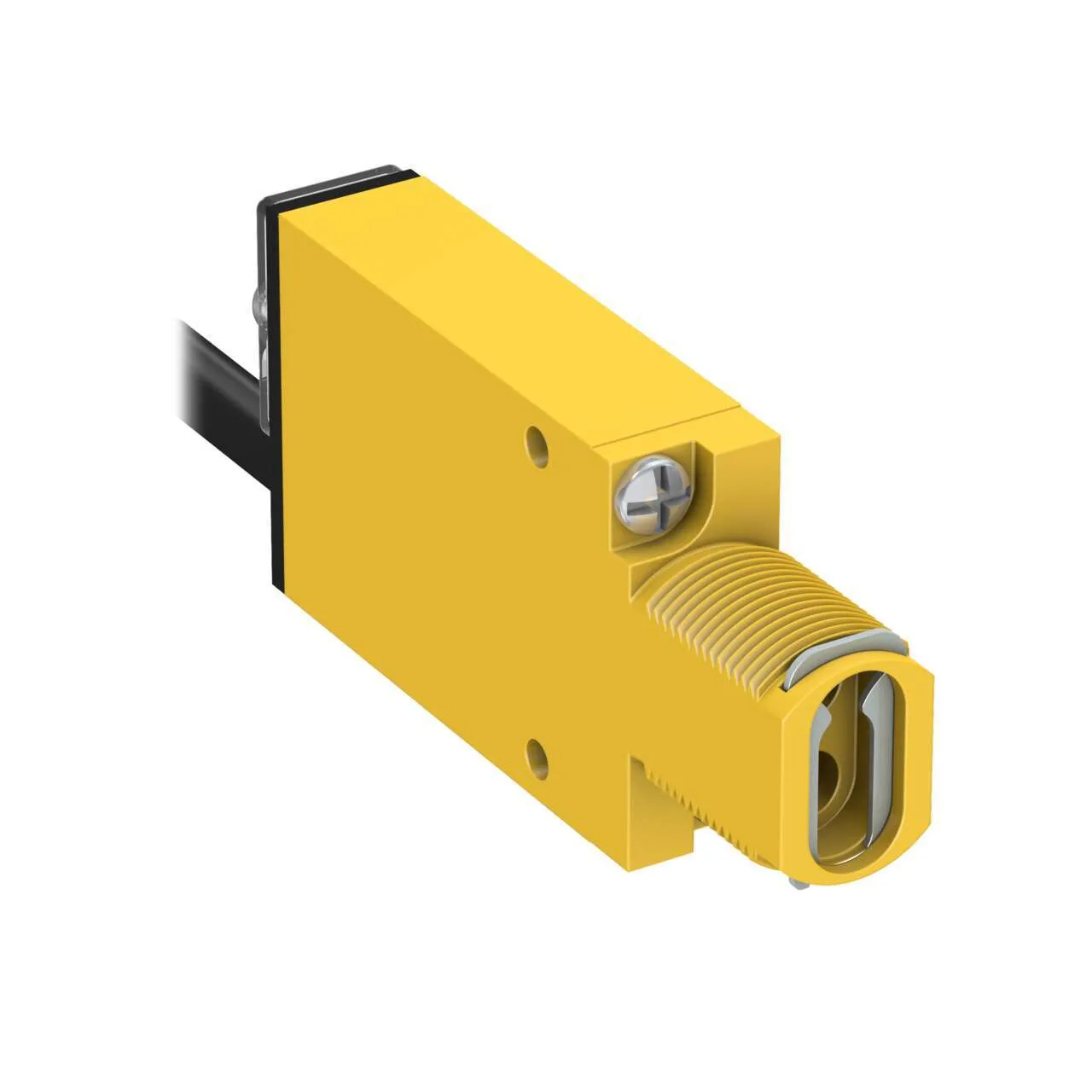

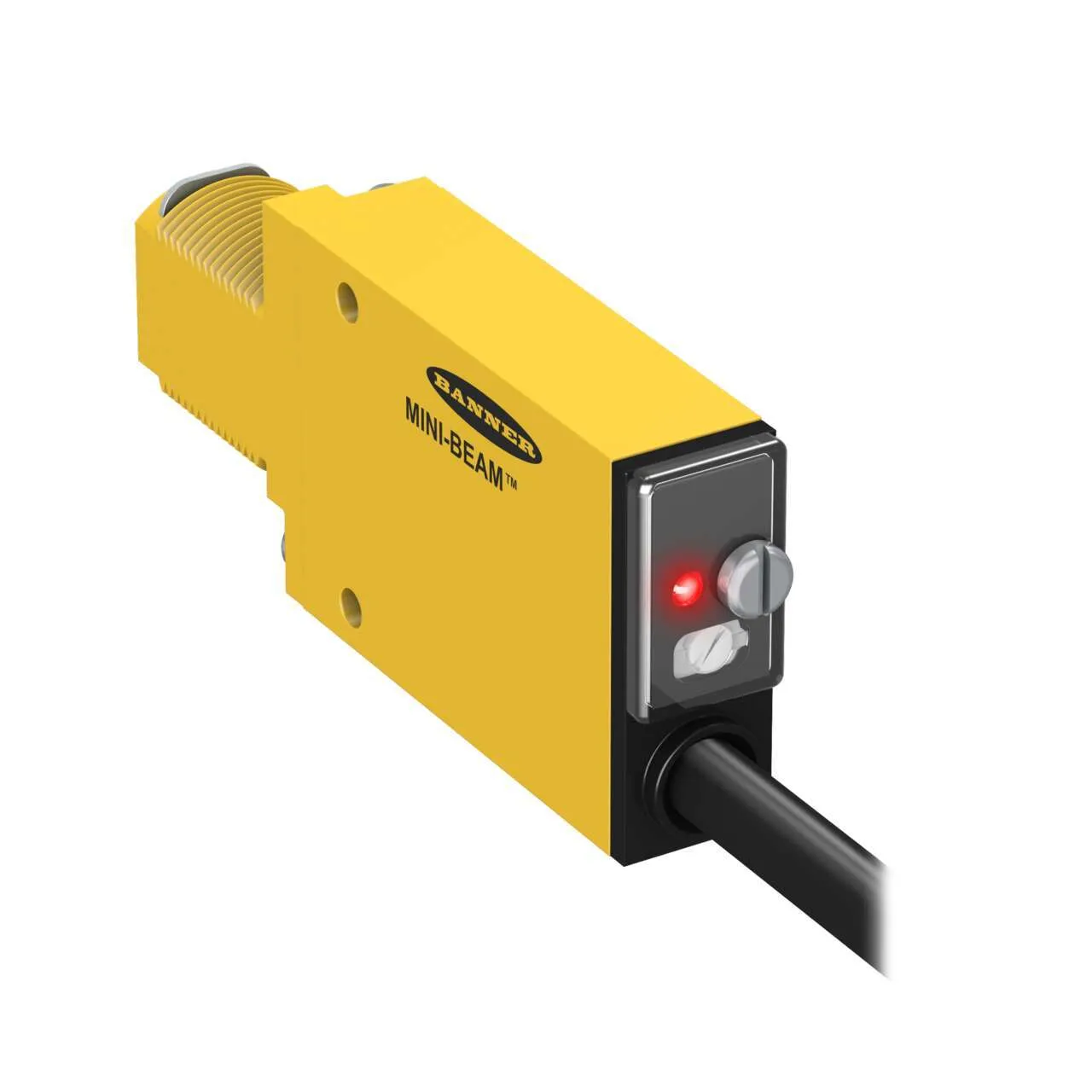

Banner Engineering SMU315FV

MINI-BEAM UNIVERSAL: Visible Red Glass Fiber Optic. Part number: 52573. model: SMU315FV. part_number: 52573. list_price: 245 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/69944.pdf. BAN_Housing_Style: Rectangular w/M18 Mount. BANSensors_FOA_FiberType: Glass Only. BANSensors_FOA_Output: SPDT e/m Relay. BANSensors_FOA_SF_Intrinsicall: No. BAN_Connection: Cable. BAN_QDType: —. BAN_CableLength: 2. Power: AC/DC Universal. Cable Length (m): 2. IP Rating: IP67. Accepts Fiber Termination Type: Glass Fiber Termination. NEMA / UL Type Rating: NEMA 4X. Item Status: RELEASED. Housing Style: Rectangular w/M18 Mount. Primary Housing Material: Thermoplastic. Input/Output: Discrete. Color LED – Amplifiers: Red. Fiber Type: Glass Only. Output: SPDT e/m Relay. Connection: Cable. Output Type (Specific): Single Discrete. Repeatability (µs): 1000. Number of Pins: 5. Max Op. Temperature (C): 55. Min Op. Temperature (C): -20. Max Op. Relative Humidity (%): 90% @ 50°C. Special Feature: Remote Teach: No. Intrinsically Safe: No. Adjustments: Potentiometer. Power Supply/Supply Voltage: 24-240 V ac/dc. Delay at Power-up (ms): 1000. Indicator Display Type: Indicator LEDs. Minimum response time (ms): 20. Special Feature: Bussable Power: No. Feature: Washdown Rated: No. Feature: Timing (Hold/Delay): No. Feature: Audible: No. Feature: Quick Disconnect: No. Feature: Health/Marginal Signal Output: No. Housing Material: Thermoplastic. EPLAN Status: Published. EPLAN Original Sent Date: 02/15/2024
