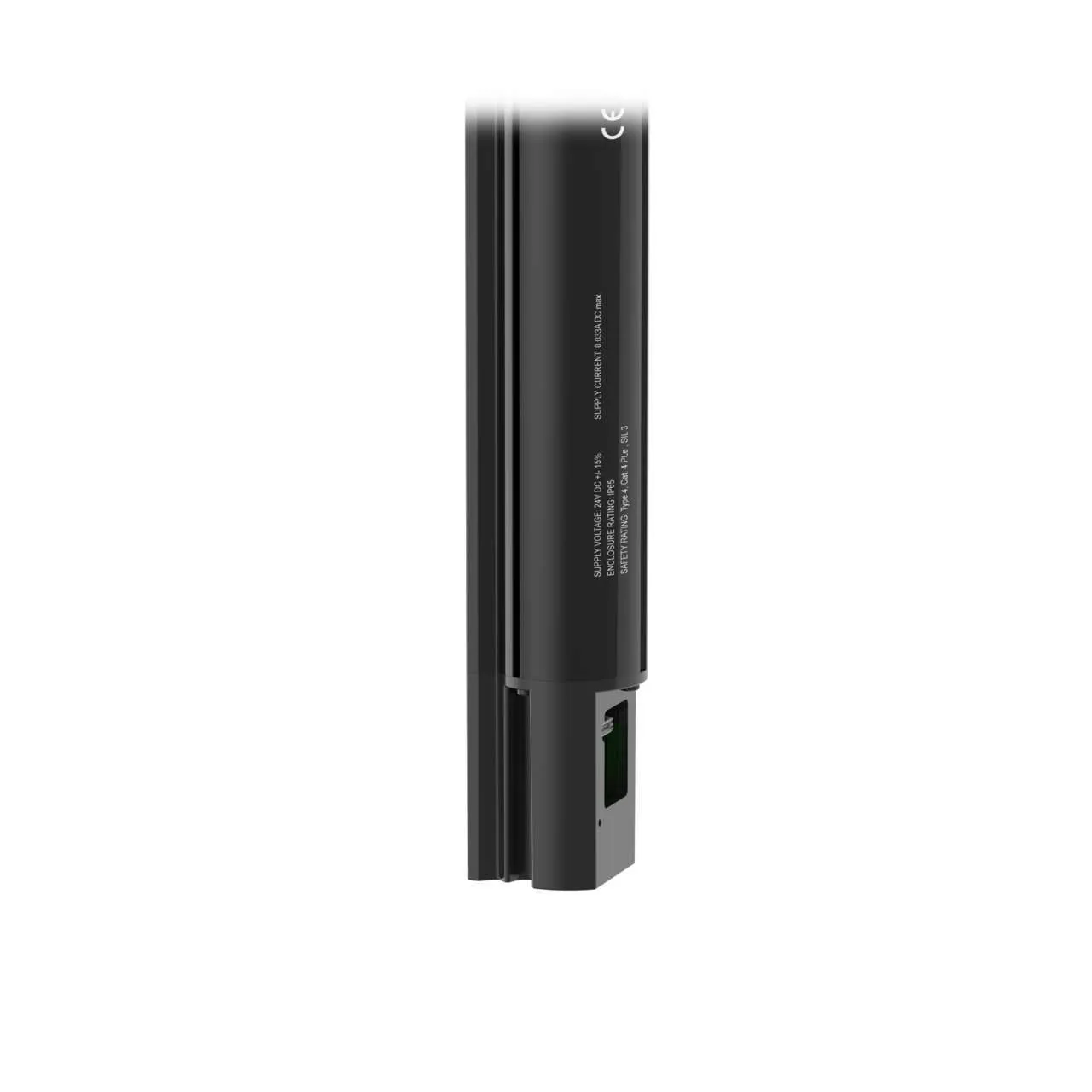

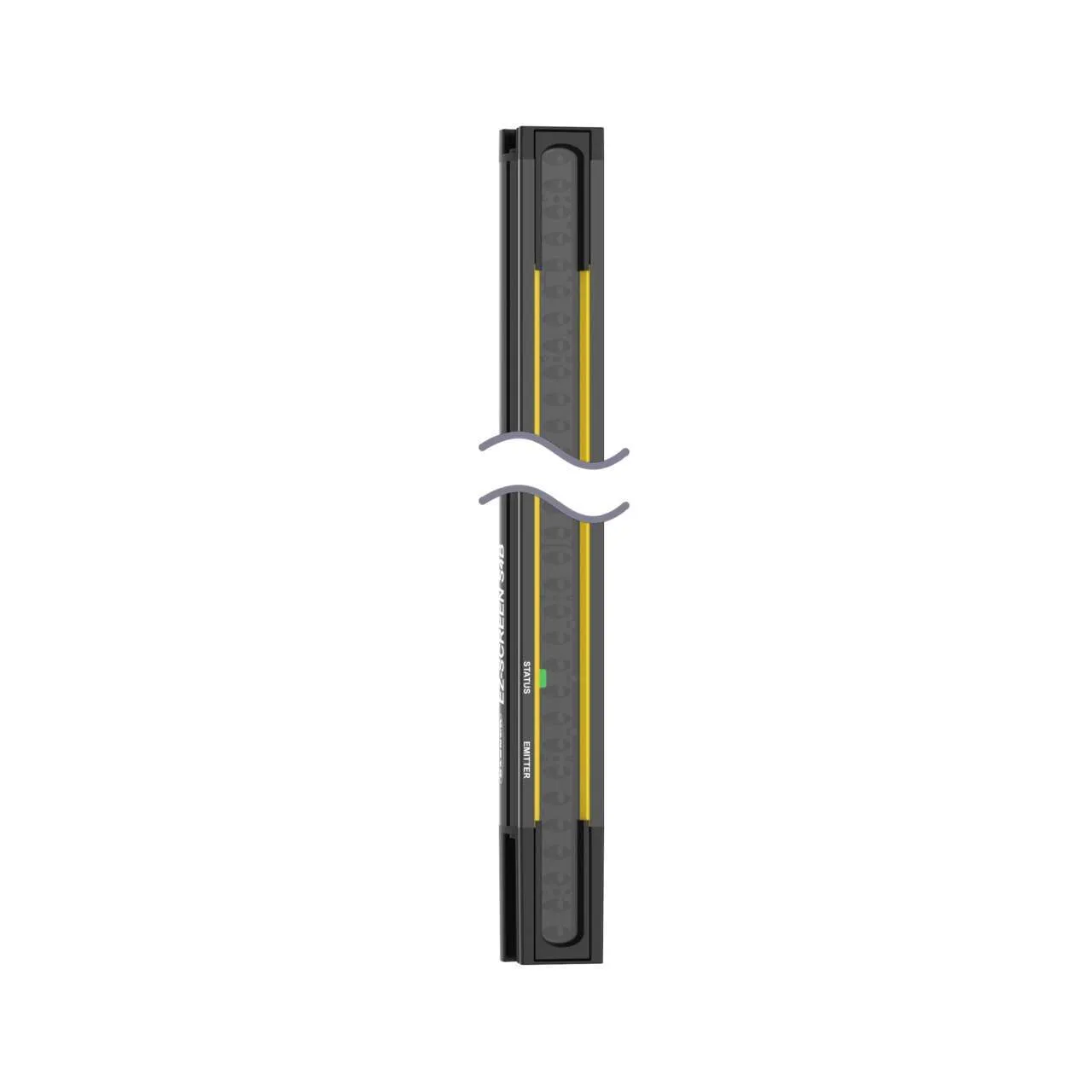

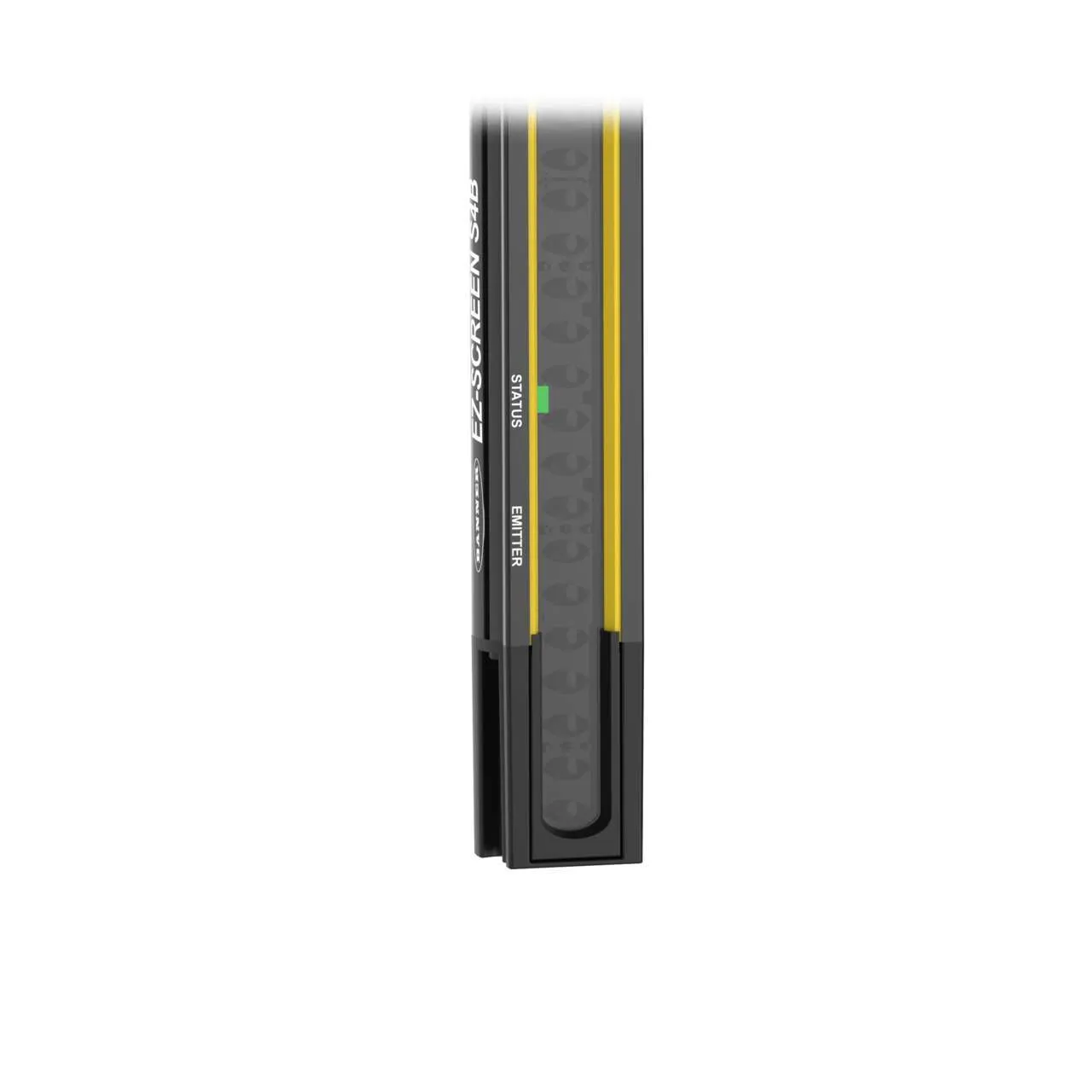

Banner Engineering S4BE14-1050-S
S4B SLC, Emitter. Part number: 812359. model: S4BE14-1050-S. part_number: 812359. list_price: 1315 USD. is_new: 0. is_in_stock: 1. BAN_Safety_LC_System_Type: Emitter. BAN_Safety_LC_Resolution: 14. BAN…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
S4B SLC, Emitter. Part number: 812359. model: S4BE14-1050-S. part_number: 812359. list_price: 1315 USD. is_new: 0. is_in_stock: 1. BAN_Safety_LC_System_Type: Emitter. BAN_Safety_LC_Resolution: 14. BAN_Safety_DefinedArea: 1050. BAN_Safety_LC_Length: 1057. Max Operating Range (m): >8 – 950 –
Specification
| Model | S4BE14-1050-S |
|---|---|
| Part_number | 812359, https://www.bannerengineering.com/us/en/products/part.812359.html |
| List_price | 1315 USD |
| Is_new | |
| Is_in_stock | 1 |
| BAN_Safety_LC_System_Type | Emitter |
| BAN_Safety_LC_Resolution | 14 |
| BAN_Safety_DefinedArea | 1050 |
| BAN_Safety_LC_Length | 1057 |
| Max Operating Range (m) | >8 – <=20 |
| Defined Area Height Range (mm) | >950 – <=1300 |
| IP Rating | IP65 |
| Heavy Duty | Yes |
| Supply Voltage | 24 V dc |
| Item Status | RELEASED |
| Primary Housing Material | Aluminum |
| Safety Level | Type 4 |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Connector Type | Removable Disconnect |
| Defined Area Height (mm) | 1050 |
| Dimensions WxD (mm) | 38 x 40 |
| Overall Length (mm) | 1057 |
| External Monitoring Device | N/A |
| Housing Finish | Black Anodized |
| Operating Distance (m) | 0.1 – 12 |
| Operating Temperature | -20 to +55 deg. C; RH 95% |
| PL Rating | Ple |
| Recovery Time | 124 / 240 |
| Resolution (mm) | 14 |
| Reduced Resolution | No |
| SIL Rating | SIL3; CL3 |
| Electrical Safety Class | III |
| Scan Code | Selectable |
| Shock | 10g at 16ms (6000 cycles) |
| Short Protection | Yes |
| System Type | Emitter |
| Vibration | 10-55 Hz at 0.35 mm |
| Auxiliary Output | Yes |
| Fault Output | No |
| Housing Material | Aluminum; Zinc; Acrylic |
| OSSD Rating | N/A |
| Supply Current | 33 mA Typical |
| Trip/Latch Output | Trip |
| Test Input | No |
| Feature: Washdown Rated | No |
| Feature: Cascade | Yes |
| Feature: End-to-End Sensing | Yes |
| Feature: ESD Safe | No |
| Feature: Integral Muting | No |
| EPLAN Status | Published |
