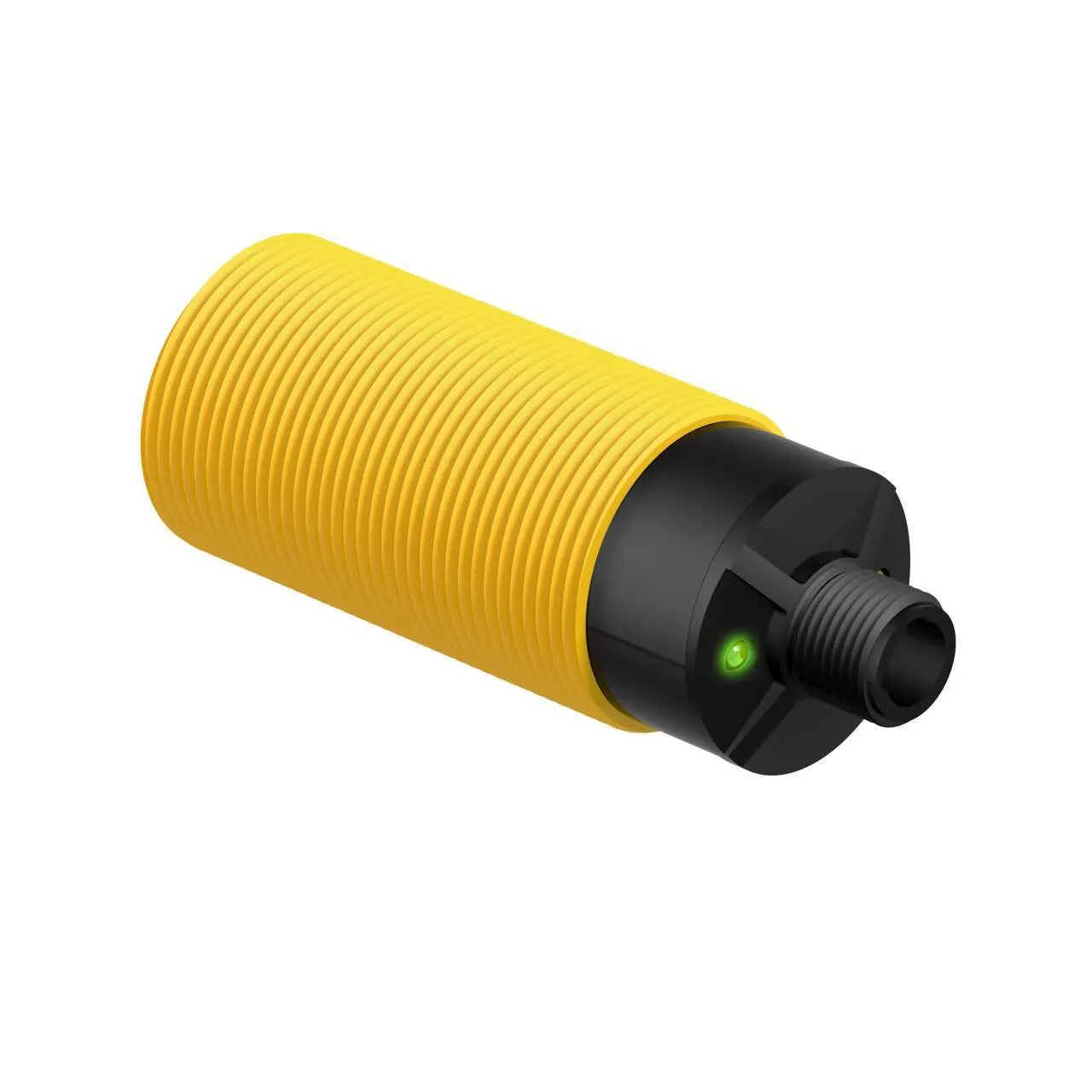

Banner Engineering S30SP6RQ

EZ-BEAM S30 Series: Receiver. Part number: 33378. model: S30SP6RQ. part_number: 33378. list_price: 101 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/121520.pdf. BAN_Sensing_Mode_General: Opposed. BAN_Sensing_Mode_Detailed: Receiver. BAN_IO_General: Discrete. BANSensors_SensRange: 60000. BANSensors_Output: PNP. BAN_Supply_Voltage: 10-30 V dc. BAN_Connection: Integral QD. BAN_QDType: M12. BAN_CableLength: —. BAN_SensingBeam: Infrared LED. BANSensors_Operation: Light/Dark Operate. BANSensors_ResponseTime: 3 ON/1.5 OFF. BAN_Washdown_Rated: Yes. BAN_Encapsulated: Yes. BAN_Health_Marg_Signal_Output: Yes. Power: DC. Sensing Beam: Infrared LED. IP Rating: IP69K. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Opposed. Sensing Mode (Detailed): Receiver. Housing Style: Barrel. Primary Housing Material: Thermoplastic. Input/Output: Discrete. Max Sensing Distance (mm): 60000. Outputs: PNP. Connection: Integral QD. Quick Disconnect Type: M12. Operation: Light/Dark Operate. Min Op. Temperature (C): -40. Max Op. Temp. (C): 70. Output response time (ms): 3 ON/1.5 OFF. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Delay at Power-up (ms): 100. Repeatability (µs): 375. Number of Pins: 4. Max Op. Relative Humidity [%]: 90% @ 50°C. Lens Material: Acrylic. Adjustments: N/A. Barrel Diameter (mm): 30. Indicator: LEDs. Opposed Mode Emitter/Receiver: Receiver. Feature: Washdown Rated: Yes. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Ecolab Certified: Yes. Feature: Encapsulated: Yes. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: Yes. DeviceNet: No. EPLAN Status: Published. EPLAN Original Sent Date: 10/27/2022
