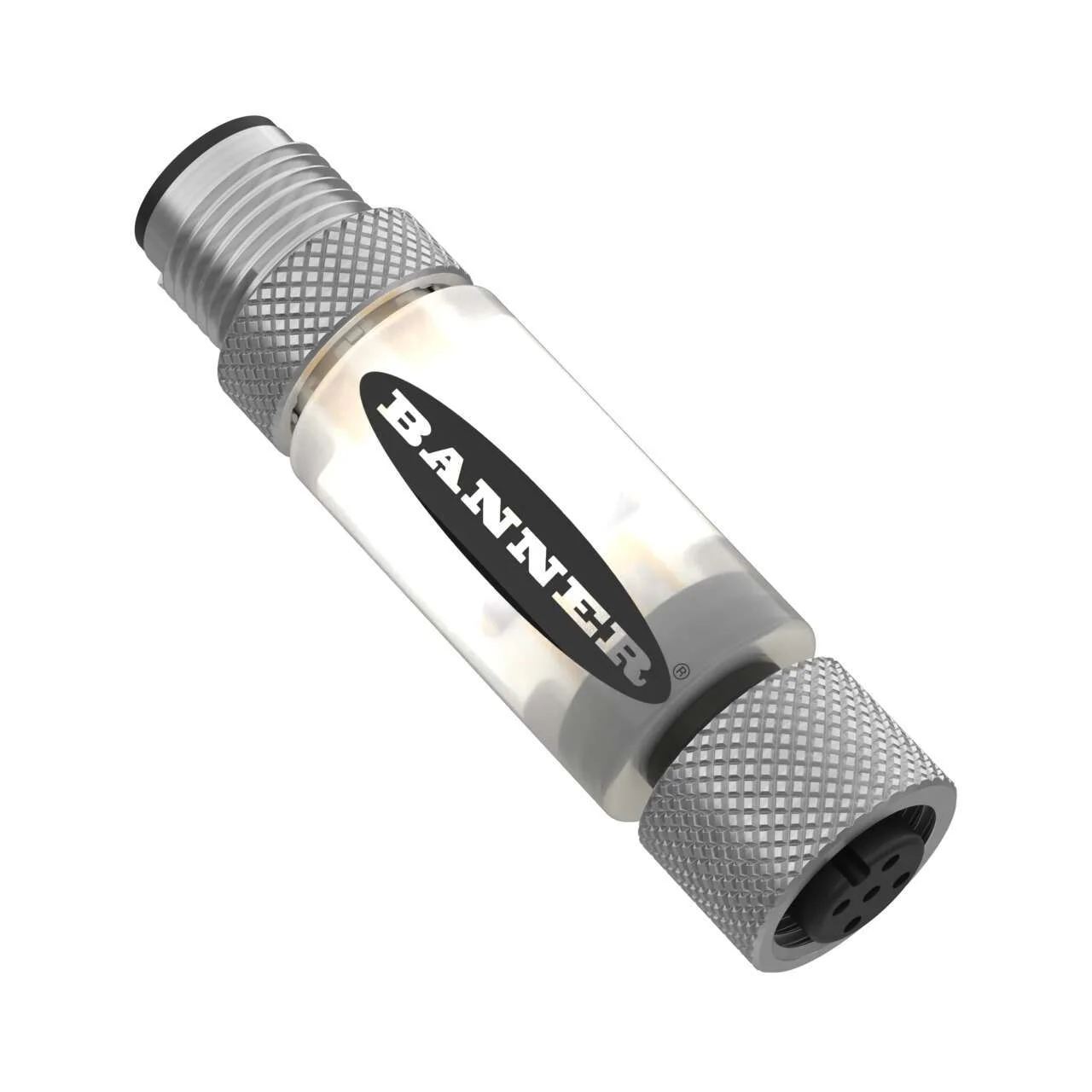

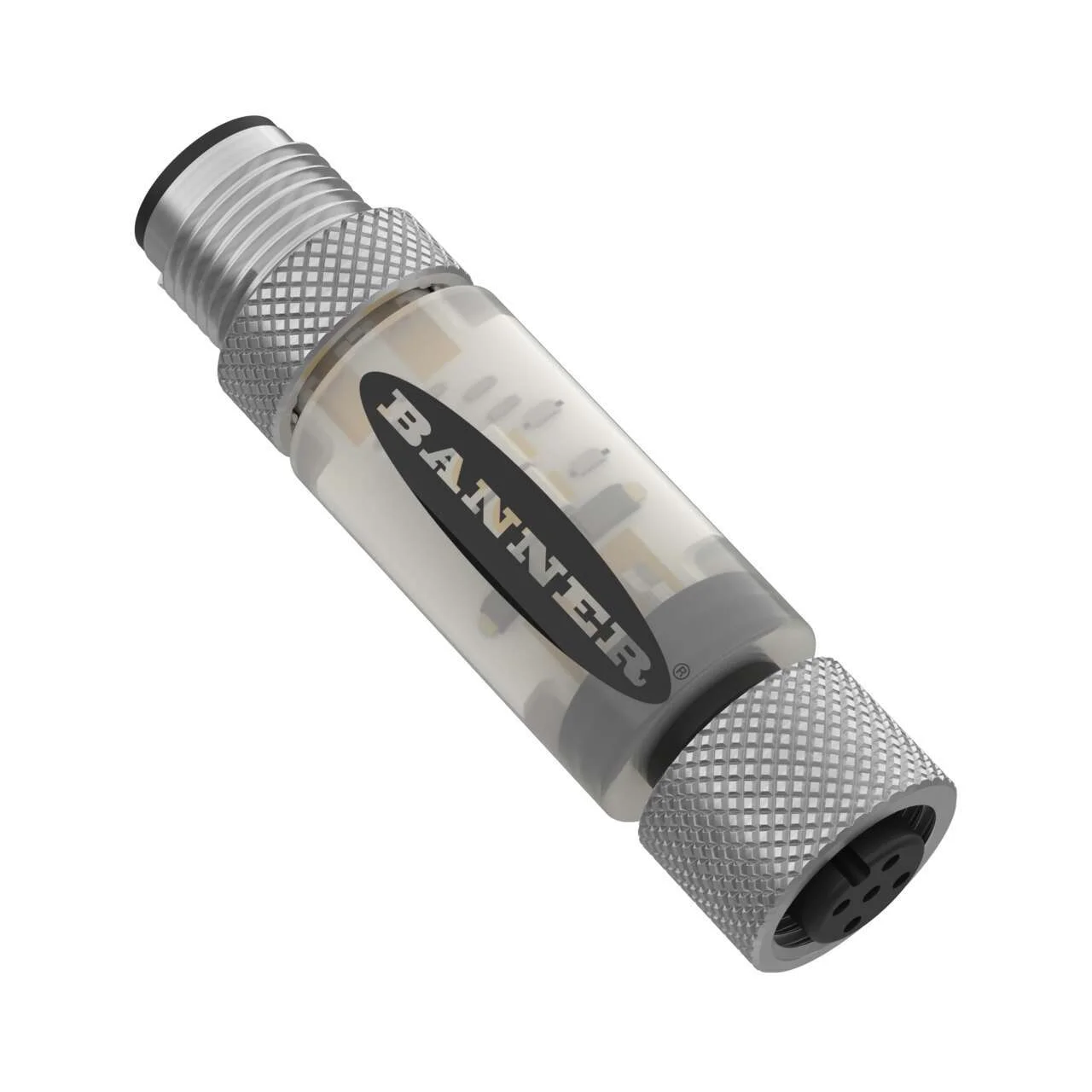

Banner Engineering S15WLWQ
S15WL Series: 1-Color In-Line Illuminator
Voltage: 24 V dc; Housing: PVC; IP67
Colors: Cool White
Male-Female 5-pin M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
S15WL Series: 1-Color In-Line Illuminator
Voltage: 24 V dc; Housing: PVC; IP67
Colors: Cool White
Male-Female 5-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP65, IP67, IP68 |
| Display | No |
| Supply Voltage | 24 V dc |
| Item Status | RELEASED |
| Housing Style | Inline |
| Primary Housing Material | PVC |
| Indication | No |
| Illumination | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 1 |
| Product Size (Mm) | 15 |
| Color Technology | Standard LED |
| Color Option 1 | Cool White |
| Animation Option 1 | Solid On |
| Connection | Integral QD |
| Lumens Color 1 | 55 |
| Quick Disconnect Type | M12 |
| Color 1 Wavelength/Color Temp/Coordinates | 6500K (Cool) |
| Max Current Color (Ma) | 80 |
| Dimming Option | PWM |
| Number Of Input Pins/Conductors | 4 |
| I/O Block Compatible | No |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 15.0 X 58.0 |
| Environmental Rating | IP65; IP67; IP68 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 95% @ 50°C |
| High Temperature (Up To 100 C) | 45 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | Yes |
| Feature: Chemical Resistant | No |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Wireless | No |
| U S B | No |
| Eplan Status | Pending Publish |
| Eplan Original Sent Date | 12/18/2025 |
