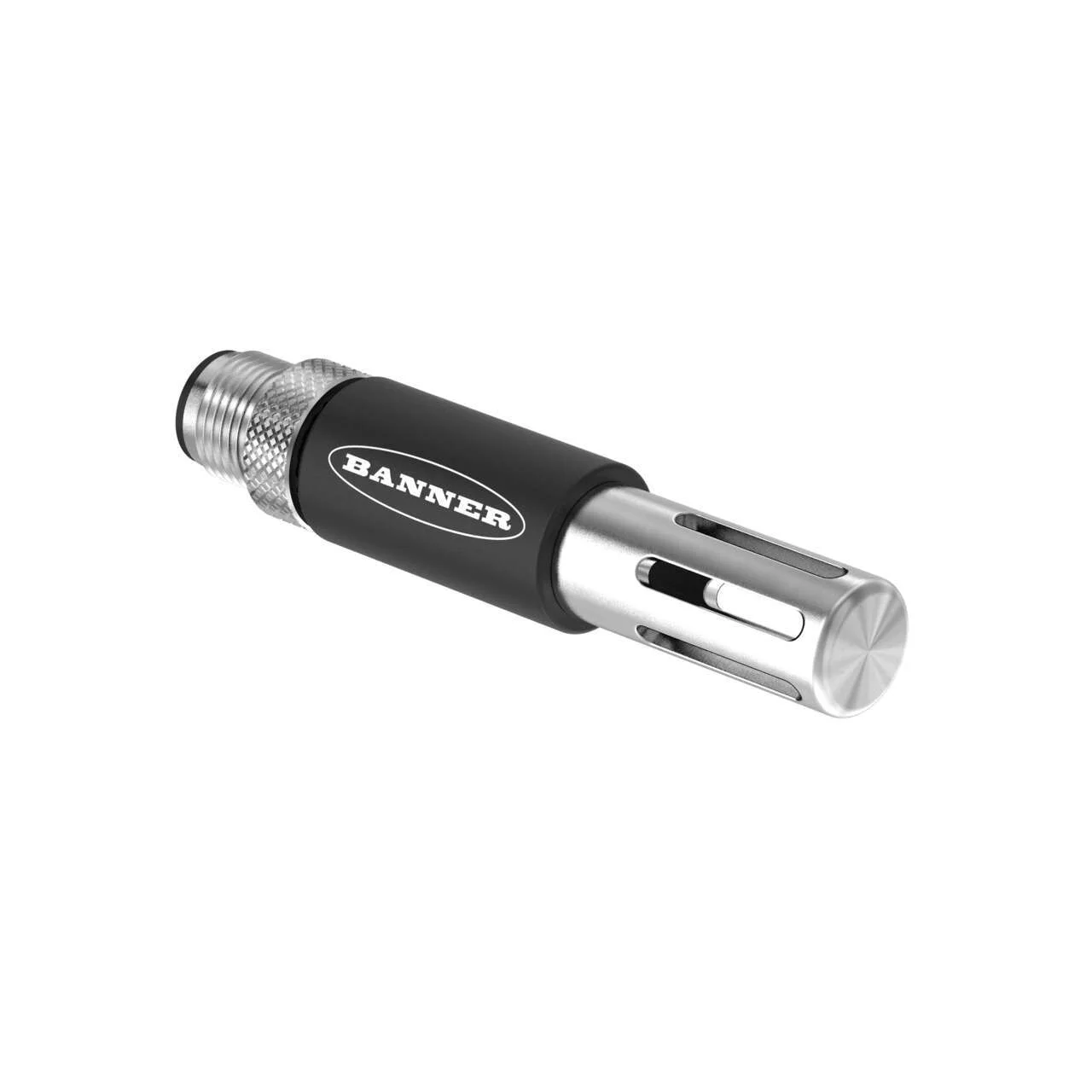

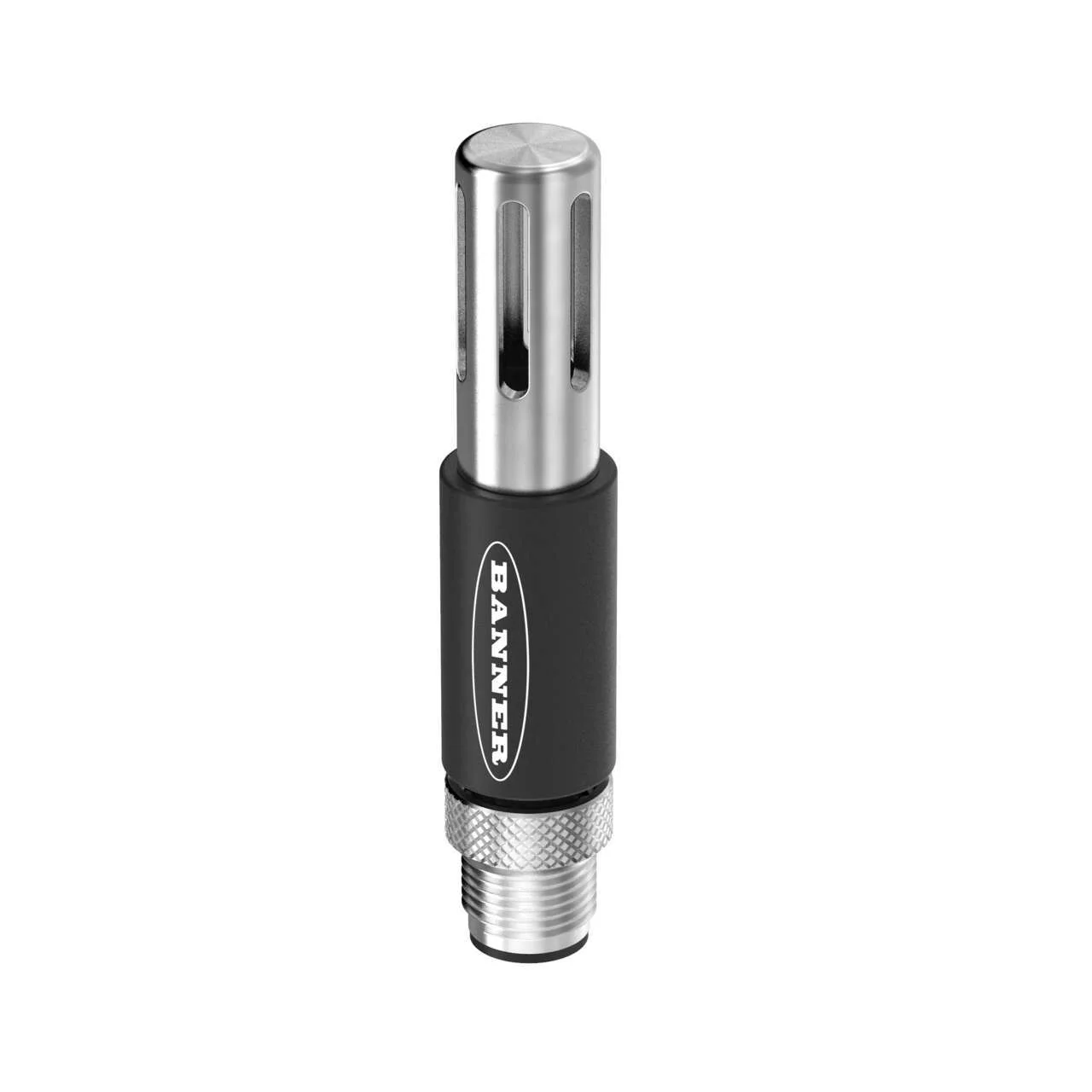

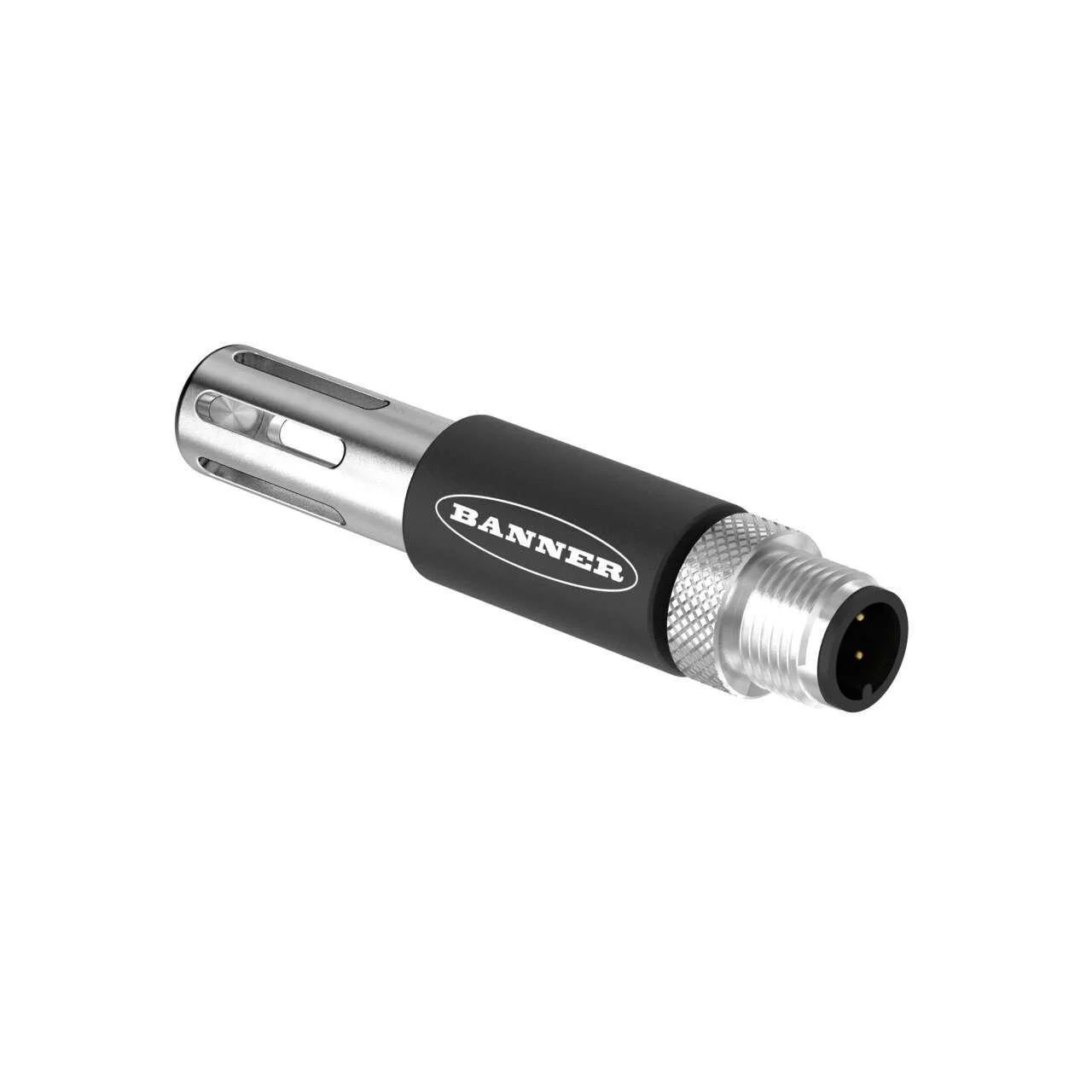

Banner Engineering S15S-TH-MQ
Temperature and Humidity Sensor
10-30 V dc
Sensor With Modbus RTU
RS-485 Interface
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Temperature and Humidity Sensor
10-30 V dc
Sensor With Modbus RTU
RS-485 Interface
Specification
| Power | DC |
|---|---|
| Ip Rating | IP67 |
| Nema / Ul Type Rating | NEMA 4X |
| Condition Monitoring Sensor Type | Temperature, Humidity & Dew Point |
| Supply Voltage | 10-30 V dc or 3.6-5.5 V dc low power option |
| Item Status | RELEASED |
| Housing Style | S15 |
| Device Type | Sensor |
| Input/ Output | Serial (Modbus) |
| Occupancy | No |
| Analog Inputs | No |
| Analog Outputs | No |
| Discrete Inputs | No |
| Discrete Outputs | No |
| Input Details | Temperature/Humidity |
| Quick Disconnect Type | M12 |
| Intrinsically Safe | No |
| Max Temp Operating Conditions (C) | 85 |
| Lcd Display | No |
| Min Temp Operating Conditions (C) | -40 |
| Dimension Length (Mm) | 74 |
| Feature: Hazardous Area | Yes |
| Feature: Quick Disconnect | Yes |
| Application: Relative Humidity Input | Yes |
| Application: Temperature Input | Yes |
| Ether Net/ I P | No |
| Modbus Rtu | Yes |
| Modbus/ T C P | No |
| P R O F I N E T | No |
| R S 232 | No |
| R S 485 | Yes |
| Wireless | No |
| 1 Wire Serial Interface | No |
| Eplan Status | Pending Publish |
| Eplan Original Sent Date | 12/18/2025 |
