Acim Nidec R180
The R180 automatic voltage regulator (AVR) for the TAL series of industrial alternators provides excitation current up to 6 A with excellent reliability for permanent magnet (PMG) or AREP+ excitation…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

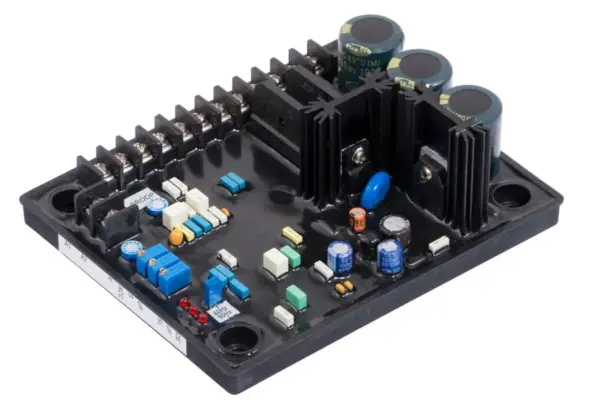

The R180 automatic voltage regulator (AVR) for the TAL series of industrial alternators provides excitation current up to 6 A with excellent reliability for permanent magnet (PMG) or AREP+ excitation types.Â
The R180 includes advanced protections such as over-excitation limitation and voltage sensing loss, and also features voltage droop for genset parallel operation. Â
Specification
|  Technology |  Analog  Analog |
|---|---|
| Â Excitation mode | AREP+, PMG AREP+, PMG |
|  Rated excitation current |  6 A/ 9 A for 5 s  6 A/ 9 A for 5 s |
| Â Regulation accuracy (+/- %) | 0.5 % 0.5 % |
|  Frequency range | 20 – 100 Hz 20 – 100 Hz |
| Â Voltage setting range (+/- %) | 5 % 5 % |
| Â kU/F limitation | K = 1.2 K = 1.2 |
|  Loss of sensing voltage | ✓ ✓ |
|  Over-excitation limitation | ✓ ✓ |
| Â Short circuit current limitation | – – |
|  Voltage droop | ✓ ✓ |
|  Parallel operation between alternators | ✓ ✓ |
| Â Load Acceptance Module (LAM) | – – |
