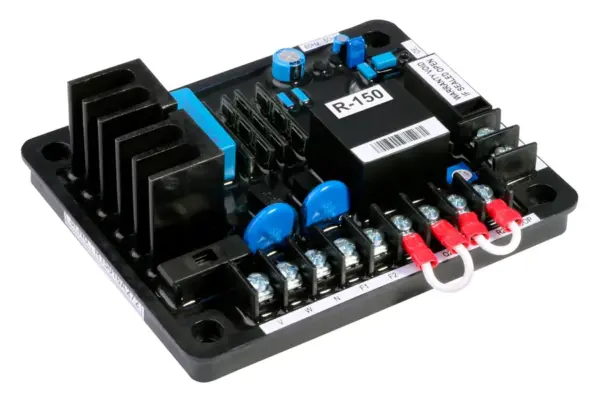

Acim Nidec R150
The R150 automatic voltage regulator (AVR) for the TAL series of industrial alternators provides excitation current up to 6 A with excellent reliability.
The R150 includes advanced protections such…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The R150 automatic voltage regulator (AVR) for the TAL series of industrial alternators provides excitation current up to 6 A with excellent reliability.
The R150 includes advanced protections such as over-excitation limitation and voltage sensing loss, and also features voltage droop for genset parallel operation.
Specification
| Technology | Analog Analog |
|---|---|
| Excitation mode | SHUNT SHUNT |
| Rated excitation current | 6 A / 8 A for 30 s 6 A / 8 A for 30 s |
| Regulation accuracy (+/- %) | 0.8% 0.8% |
| Frequency range | 20 – 100 Hz 20 – 100 Hz |
| Voltage setting range (+/- %) | 10 % 10 % |
| kU/F limitation | K= 1.2 K= 1.2 |
| Loss of sensing voltage | â â |
| Over-excitation limitation | â â |
| Short circuit current limitation | – – |
| Voltage droop | â â |
| Parallel operation between alternators | â â |
| Load Acceptance Module (LAM) | – – |
