Wago 899-8035/000-101

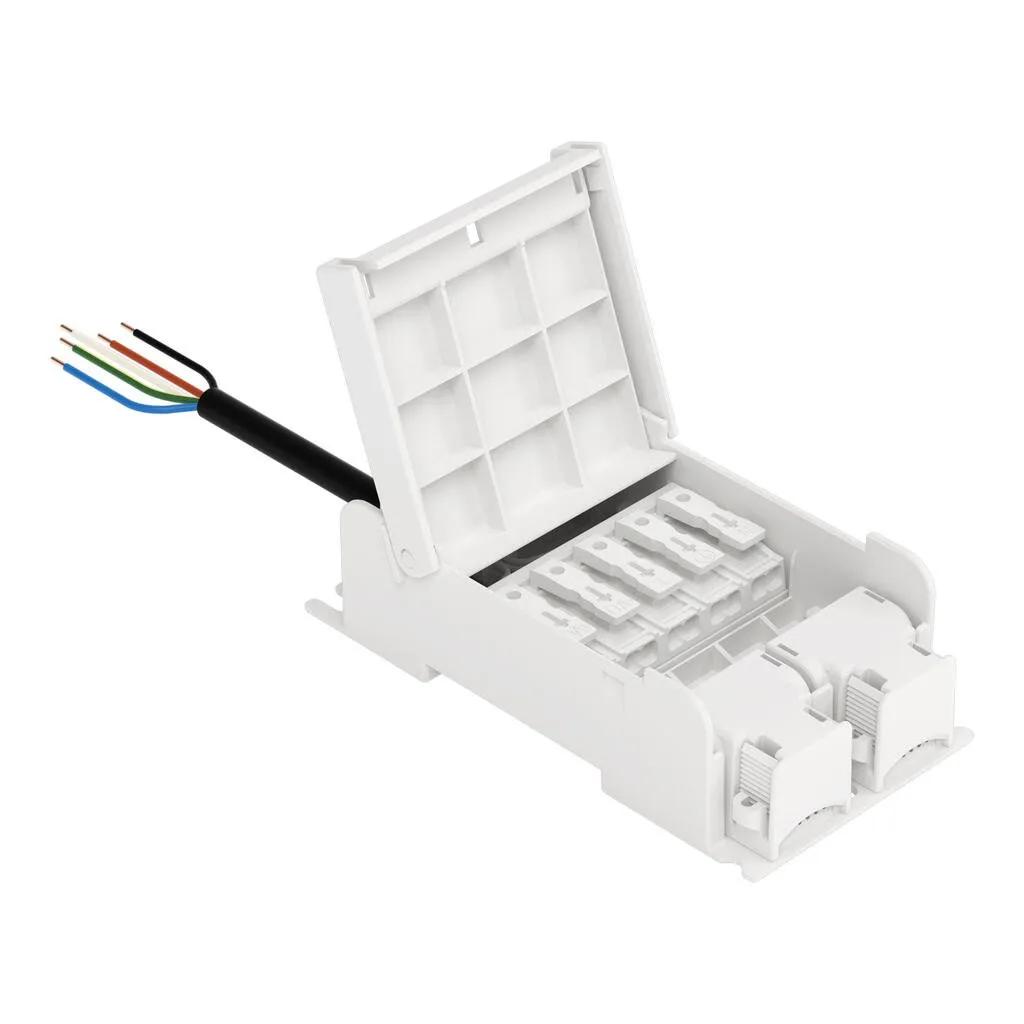

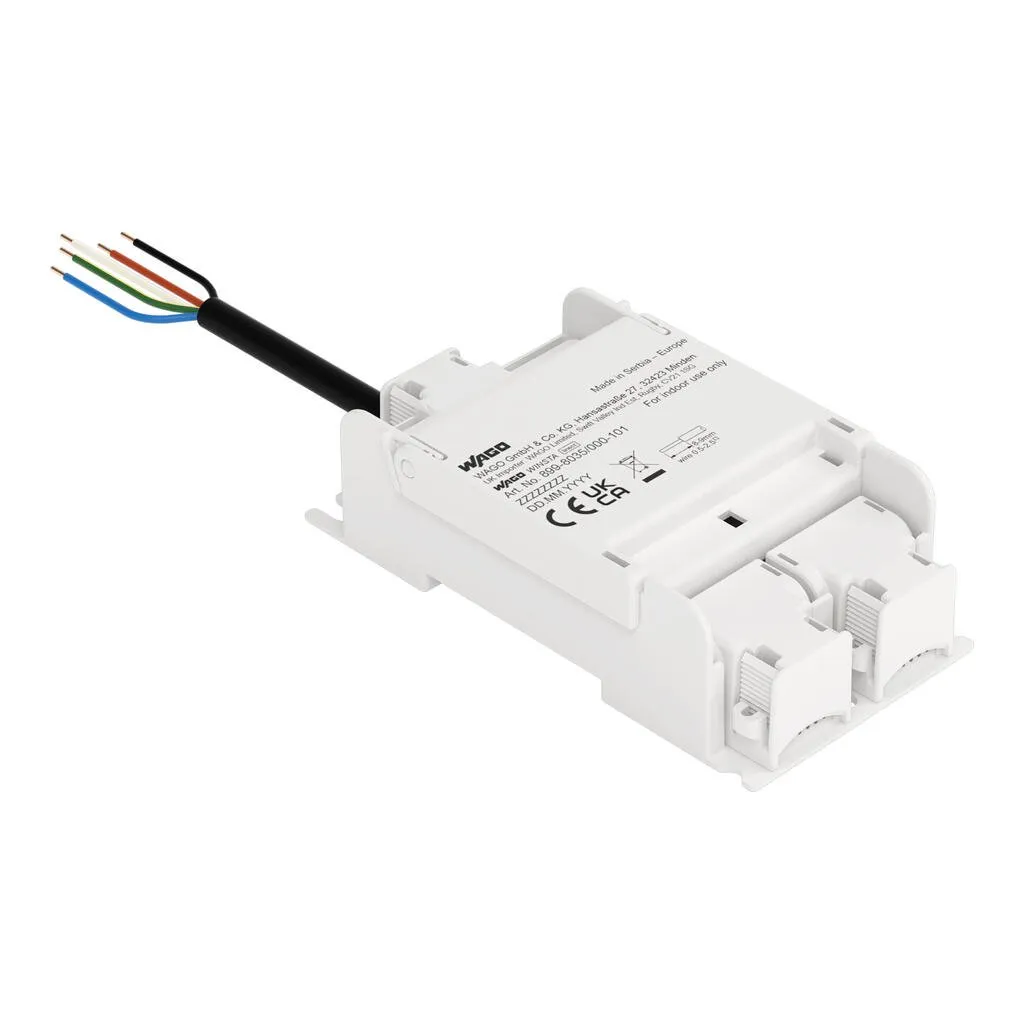

Field-wiring terminal block, 899 Series, whiteThis field-wiring terminal block (item number 899-8035/000-101) is designed for quick and simple connections. The item’s dimensions are (58 x 105 x 30) mm…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Field-wiring terminal block, 899 Series, whiteThis field-wiring terminal block (item number 899-8035/000-101) is designed for quick and simple connections. The item’s dimensions are (58 x 105 x 30) mm (width x height x depth).
Specification
Electrical data - Ratings per IEC/EN
| Ratings | Connection points |
|---|---|
| Ratings per | IEC/EN 60998-1 |
| Nominal voltage (II/2) | 500 V |
| Rated impulse withstand voltage (II/2) | 4 kV |
| Rated current | 24 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings | Connection points / Connection points / Connection points |
| Ratings per | IEC/EN 60998-1 / IEC/EN 60998-1 / IEC/EN 60998-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 500 V |
| Rated impulse withstand voltage | 4 kV |
| Rated current | 24 A |
Electrical data - Ratings per IEC/EN 2
| Ratings | Connection points |
|---|---|
| Ratings per | IEC/EN 60998-2-2 |
| Rated voltage (II/2) | 500 V |
| Rated impulse withstand voltage (II/2) | 4 kV |
| Rated current | 24 A |
| Ratings | Connection points / Connection points / Connection points |
| Ratings per | IEC/EN 60998-2-2 / IEC/EN 60998-2-2 / IEC/EN 60998-2-2 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 500 V |
| Rated impulse withstand voltage | 4 kV |
| Rated current | 24 A |
Electrical data - Ratings per IEC/EN 3
| Ratings | Linect® plug-in connection |
|---|---|
| Ratings per | IEC/EN 61984 |
| Rated voltage (II/2) | 500 V |
| Rated impulse withstand voltage (II/2) | 4 kV |
| Rated current | 16 A |
| Ratings | Linect® plug-in connection / Linect® plug-in connection / Linect® plug-in connection |
| Ratings per | IEC/EN 61984 / IEC/EN 61984 / IEC/EN 61984 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 500 V |
| Rated impulse withstand voltage | 4 kV |
| Rated current | 16 A |
Connection data
| Number of connection types | 1 |
|---|
Connection data - Connection 1
| Pole number | 5 |
|---|

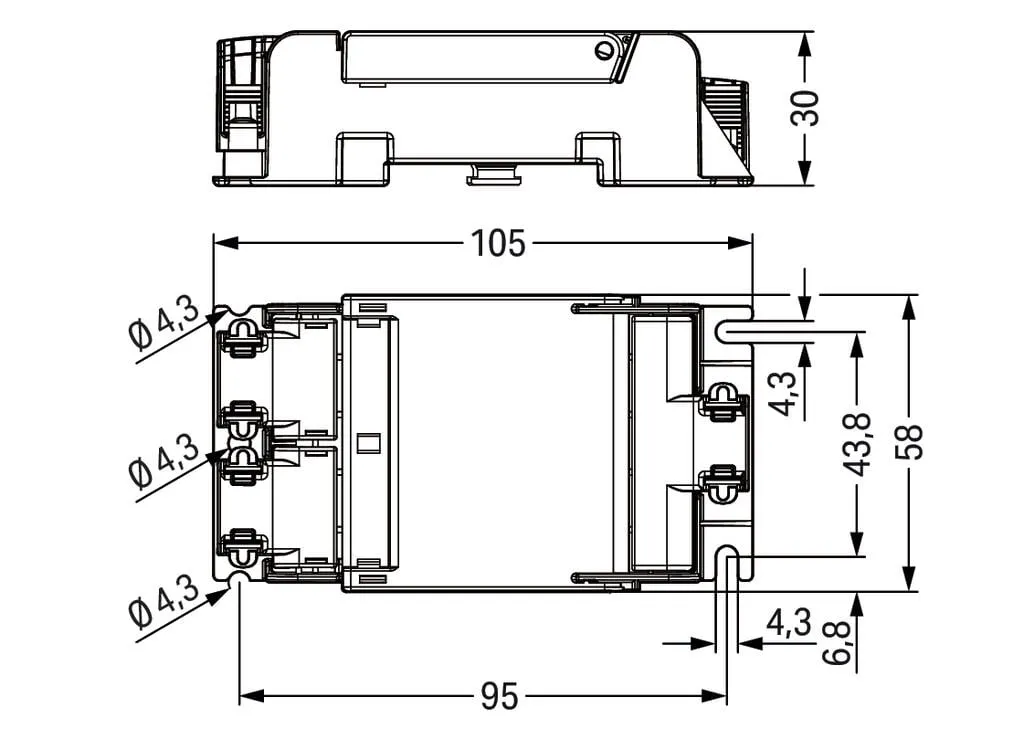

Physical data
| Width | 58 mm / 2.283 inches |
|---|---|
| Height | 105 mm / 4.134 inches |
| Depth | 30 mm / 1.181 inches |
Mechanical data
| Marking | N ⏚ L DA- DA+ |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | white |
| Cover color | white |
| Insulation material (main housing) | Polycarbonate (PC) |
| Flammability class per UL94 | V0 |
| Weight | 74 g |
Commercial data
| PU (SPU) | 10 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | XS |
| GTIN | 4066966343168 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121308 |
|---|---|
| ETIM 9.0 | EC002567 |
| ETIM 10.0 | EC002567 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
