Wago 897-1650

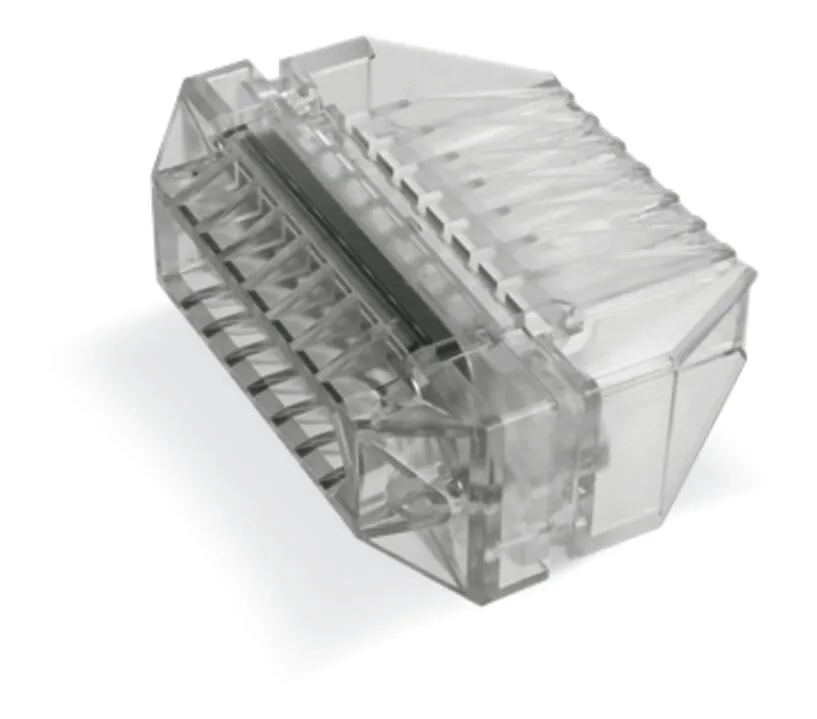

Cover WINSTA® IDCThe cover from the WINSTA® IDC product line is the intelligent solution for reliable installation. A comprehensive range of accessories complements the WINSTA® product line from WAGO….
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Cover WINSTA® IDCThe cover from the WINSTA® IDC product line is the intelligent solution for reliable installation. A comprehensive range of accessories complements the WINSTA® product line from WAGO.Lower costs through fast commissioning and elimination of service expenses – solutions from WINSTA® IDCThe WINSTA® Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs. Choose quality and durability – with protection against mismating from WAGO makes the electrical installation of electrical components significantly easier. saves time, since no wiring is required at the construction sitequick replacement of defective units during ongoing operation
Specification
Mechanical data
| Variable coding | No |
|---|---|
| Suitable | for flat cable 5 x 16 mm² |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 1.116 MJ |
| Weight | 53.9 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
|---|---|
| PU (SPU) | 4 pcs |
| Packaging type | box |
| Country of origin | CH |
| GTIN | 4045454006402 |
| Customs tariff number | 85472000900 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 |
| ETIM 9.0 | EC002863 |
| ETIM 10.0 | EC002863 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
