Description

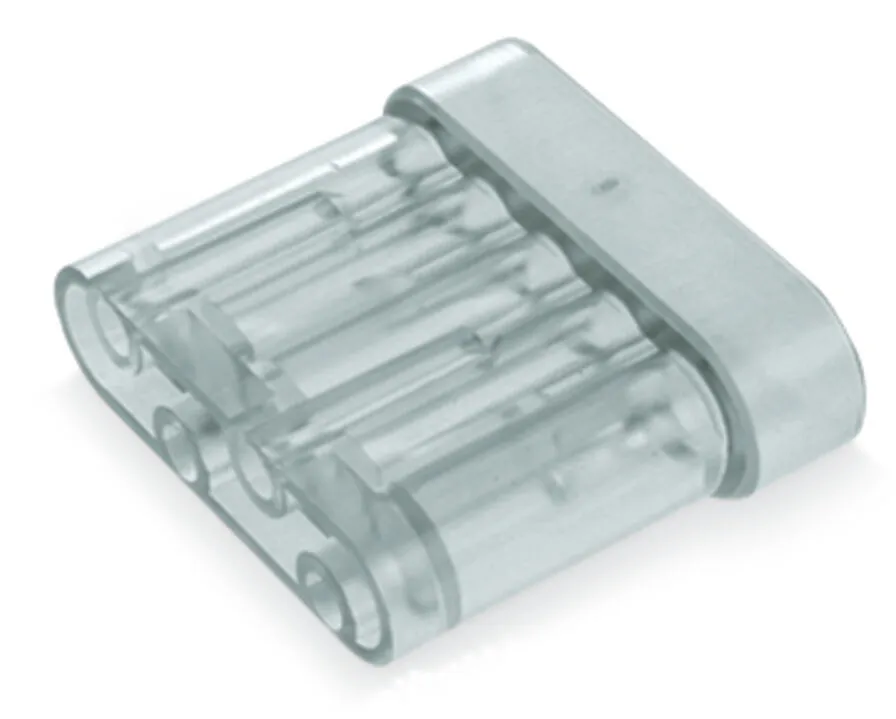

Cover WINSTA® IDCWith the cover from the WINSTA® IDC product line, error-free electrical installation is guaranteed. An extensive range of accessories rounds out the WINSTA® product line from WAGO.WINSTA® IDC solutions for your electrical installation – protected against mismating and maintenance-freeWINSTA® is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with protection against mismating from WAGO. products perfectly tailored to your requirements guarantee safe usequick replacement of defective units during ongoing operation
Specification
Mechanical data
| Variable coding | No |
|---|---|
| Suitable | for flat cable 5 x 10 mm² |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.36 MJ |
| Weight | 15 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
|---|---|
| PU (SPU) | 10 pcs |
| Packaging type | box |
| Country of origin | CH |
| GTIN | 4045454006273 |
| Customs tariff number | 85472000900 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 |
| ETIM 9.0 | EC002863 |
| ETIM 10.0 | EC002863 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
