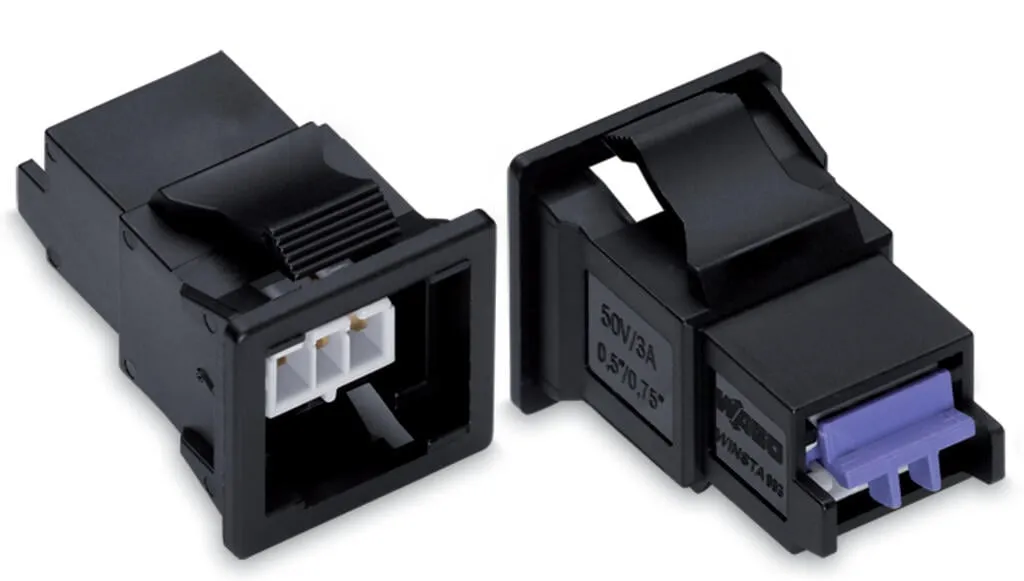

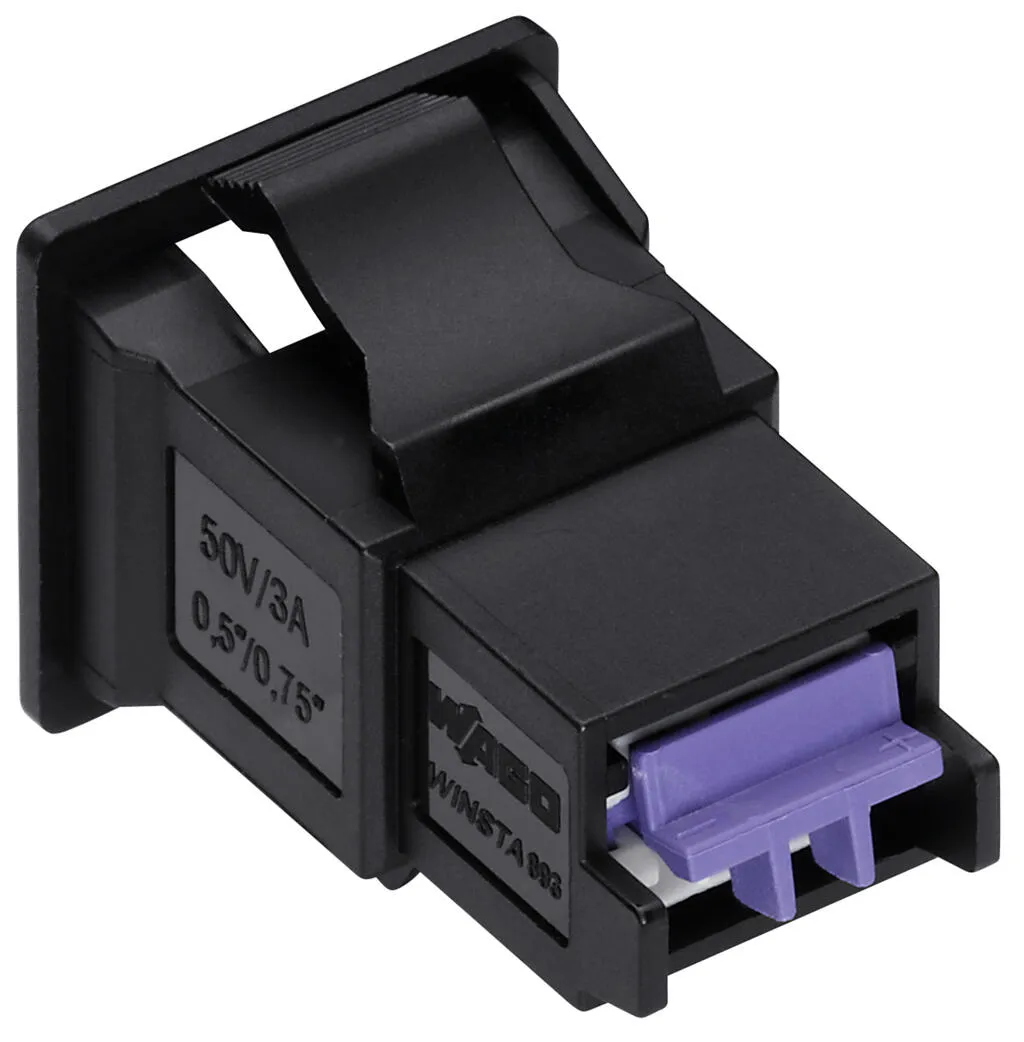

Wago 893-2022
Female connector/socket WINSTA® KNX F codingThe WINSTA® KNX female connector/socket 2-pole is the pluggable solution for your use in control cabinets, for lighting connections or on PCBs. The pluggabl…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Female connector/socket WINSTA® KNX F codingThe WINSTA® KNX female connector/socket 2-pole is the pluggable solution for your use in control cabinets, for lighting connections or on PCBs. The pluggable installation connectors with spring pressure connection technology work entirely without screw connections. They allow resource-efficient, error-free installation in a large number of possible uses. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20 (Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.)). That results in the fact that users’ fingers will never come into contact with electrified elements. The KNX protocol allows different equipment within one building system to communicate. WINSTA® KNX pluggable installation connectors with F coding are employed in low-voltage applications.Lower costs through fast commissioning and elimination of service expenses – solutions from WINSTA® KNXWINSTA® is the pluggable connection system that is perfectly tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably. Choose durability and quality – with protection against mismating from WAGO makes the installation of electrical components noticeably easier. saves time, since no wiring is required at the construction sitewith F coding for the use in supplying powerready for immediate useconvenient installation and commissioning
Specification
Notes
| Note | The snap-in connectors must be relieved of tensile and transverse forces.A surface finish can influence the edge radius of the cutouts. This may affect the snap-in socket fit, so ensure an adequate fit before use. In addition, the punched edge should be on the inside for punched cutouts.The wings of the snap-in connectors must not be mechanically stressed for a long period before use (e.g., due to a pre-locking position). |
|---|
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 50 V |
| Rated impulse withstand voltage (III / 3) | 0.8 kV |
| Rated current | 3 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 50 V |
| Rated impulse withstand voltage | 0.8 kV |
| Rated current | 3 A |
Electrical data - General information
| Note on contact resistance | Approx. 3 mΩ contact resistance |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 2 |
Connection data - Connection 1
| Connection technology | PUSH WIRE® |
|---|---|
| Actuation type | Push-in |
| Conductor diameter | 0.8 mm |
| Strip length | 9 mm / 0.35 inches |
| Pole number | 2 |
| Conductor entry direction to mating direction | 0 ° |

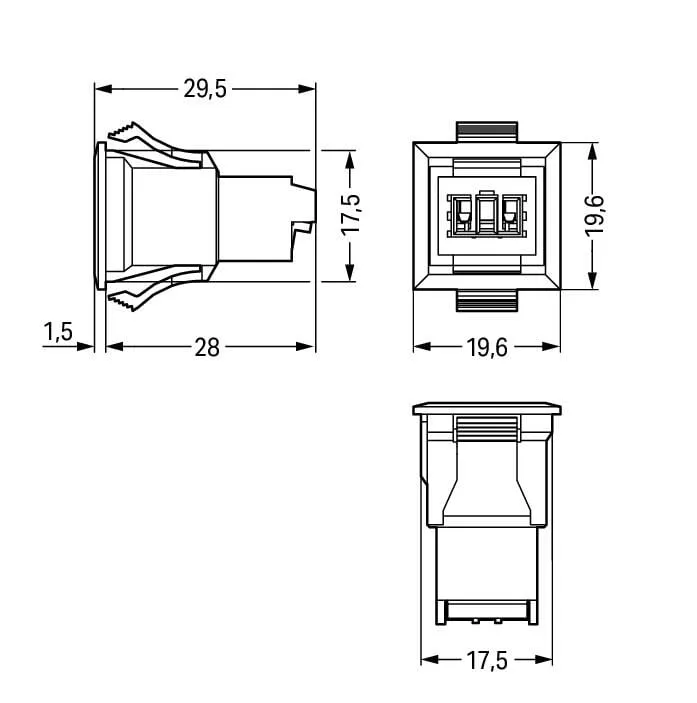

Physical data
| Width | 19.6 mm / 0.772 inches |
|---|---|
| Height | 19.6 mm / 0.772 inches |
| Depth | 29.5 mm / 1.161 inches |
Mechanical data
| Technology | KNX |
|---|---|
| Use | KNX |
| Coding | F |
| Variable coding | No |
| Marking | 1+ 2- |
| Potential marking | 1+ 2- |
| Mating force of a plug-in connection | approx. 10 … 15 N |
| Retention force of a plug-in connection | Locked: > 80 N |
| Unmating force of a plug-in connection | Unlocked: approx. 15 … 20 N |
| Number of mating cycles | 200 |
| Housing sheet thickness | 0.5 … 2 mm / 0.02 … 0.079 inches |
| Mounting type | Snap-in flange |
| Protection type | IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.) |
Plug-in connection
| Contact type (pluggable connector) | Female connector/socket |
|---|---|
| Connector (connection type) | for conductor |
| Mismating protection | Yes |
| Note on mismating protection | All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole |
| Locking lever | No |
| Locking of plug-in connection | locking lever |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | light gray |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Copper alloy; surface-treated |
| Contact plating | Tin |
| Weight | 4.5 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | box |
| Country of origin | CH |
| GTIN | 4045454420161 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 27-44-06-02 |
| eCl@ss 9.0 | 27-44-06-02 |
| ETIM 9.0 | EC002566 |
| ETIM 10.0 | EC002566 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
Other
| Technology | KNX |
|---|
