Wago 890-764/071-000

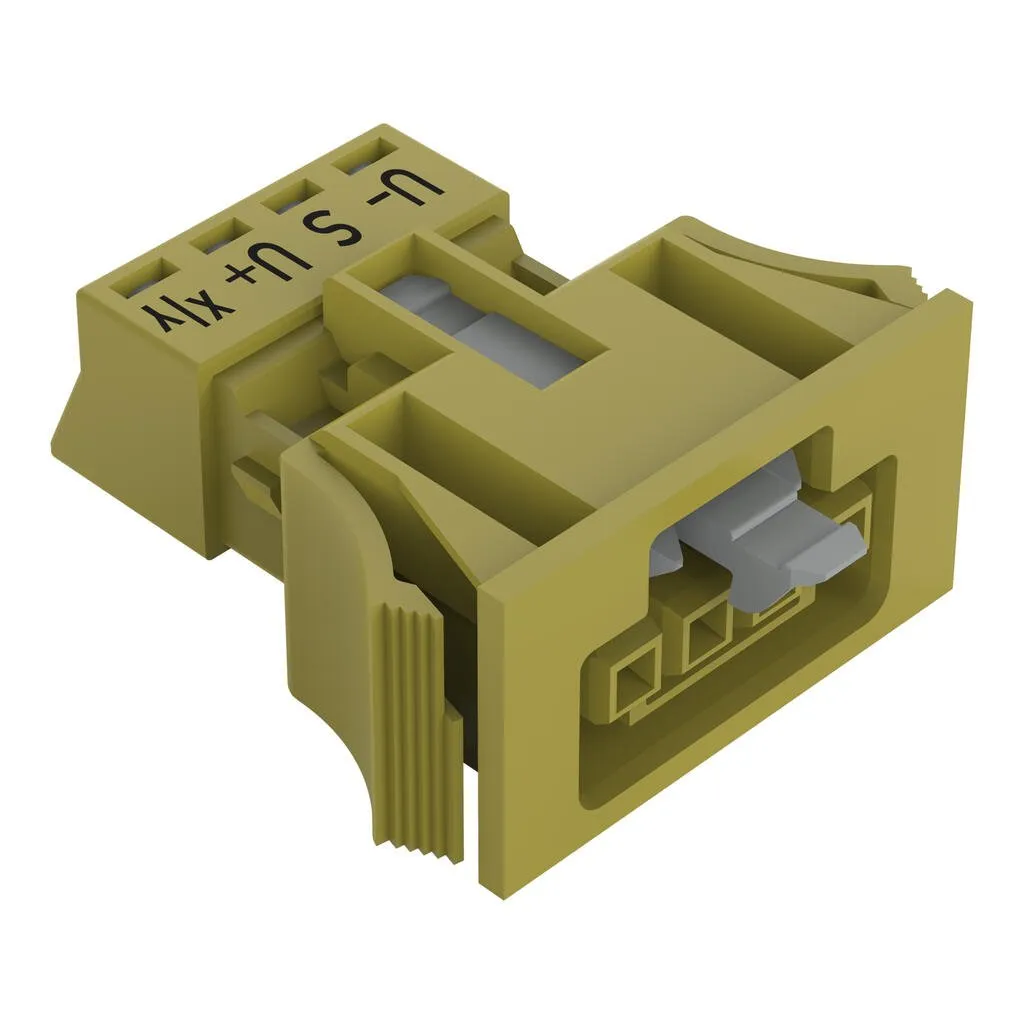

Female connector/socket WINSTA® MINI rated current 16 AThe WINSTA® MINI female connector/socket with protection type IP40 supports fast, reliable installation. WAGO pluggable installation connectors a…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Female connector/socket WINSTA® MINI rated current 16 AThe WINSTA® MINI female connector/socket with protection type IP40 supports fast, reliable installation. WAGO pluggable installation connectors are useful when specifications repeat or are distributed on a defined pattern, for example for installing grid lighting or flush-mount lighting. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected in accordance with protection type IP40. Users’ fingers and tools will never come into contact with live elements. Pluggable installation connectors with B coding from the WINSTA® MINI line are available in pink, light green, or gray, allowing you to distinguish different circuits, for example for light, pumps or, sun blinds. Customer-specific pole marking is possible, too. Particularly where space is tight, our smallest pluggable connection system, WINSTA® MINI, consistently displays its advantageous properties. It is very compact, and, thanks to Push-in CAGE CLAMP® spring pressure connection technology, it also saves time, since the installation is low-maintenance and requires no screw connections.Push-in CAGE CLAMP® spring pressure connection technology – pluggable installation instead of laborious screw connections!The WINSTA® Pluggable Connection System is perfectly tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and therefore more efficient, more reliable, and error-free. Use of this pre-assembled system reduces assembly times and installation errors at the construction site. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with protection type IP40 from WAGO. pluggable installation connectors with protection against mismatingconsistent IP40 protectionfor automation controllersflexible installation to save spacerapid, structured electrical installation
Specification
Notes
| Note | The snap-in connectors must be relieved of tensile and transverse forces.A surface finish can influence the edge radius of the cutouts. This may affect the snap-in socket fit, so ensure an adequate fit before use. In addition, the punched edge should be on the inside for punched cutouts.The wings of the snap-in connectors must not be mechanically stressed for a long period before use (e.g., due to a pre-locking position). |
|---|---|
| Variants: | Other pole markings, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/. |
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 400 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 16 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 400 V |
| Rated impulse withstand voltage | 6 kV |
| Rated current | 16 A |
Electrical data - Ratings per IEC/EN – Notes
| Rated current (note) | 13 A for 3-pole load10 A for 4-pole load |
|---|
Electrical data - Ratings per UL 1977
| Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office. |
|---|---|
| Rated voltage (UL 1977) | 600 V |
| Rated current UL 1977 | 12 A |
| Approvals per | UL 1977 |
| Rated voltage | 600 V |
| Rated current | 12 A |
Electrical data - General information
| Note on contact resistance | approx. 1 mΩ of contact resistance approx. 0.25 mΩ contact transition plug/socket |
|---|
Connection data
| Clamping units | 4 |
|---|---|
| Total number of potentials | 4 |
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool, Push-in |
| Nominal cross-section | 1.5 mm² / 16 AWG |
| Solid conductor | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Solid conductor; push-in termination | 0.75 … 1.5 mm² / 20 … 16 AWG |
| Stranded conductor | 0.25 … 1 mm² / 22 … 18 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75 mm² / 22 … 20 AWG |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 0.75 mm² / 22 … 20 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 0.75 mm² / 20 AWG |
| Strip length | 9 mm / 0.35 inches |
| Pole number | 4 |
| Conductor entry direction to mating direction | 0 ° |
Physical data
| Pin spacing | 4.4 mm / 0.173 inches |
|---|---|
| Width | 28.6 mm / 1.126 inches |
| Height | 16 mm / 0.63 inches |
| Depth | 39.85 mm / 1.569 inches |
Mechanical data
| Use | Control technology |
|---|---|
| Coding | B |
| Variable coding | No |

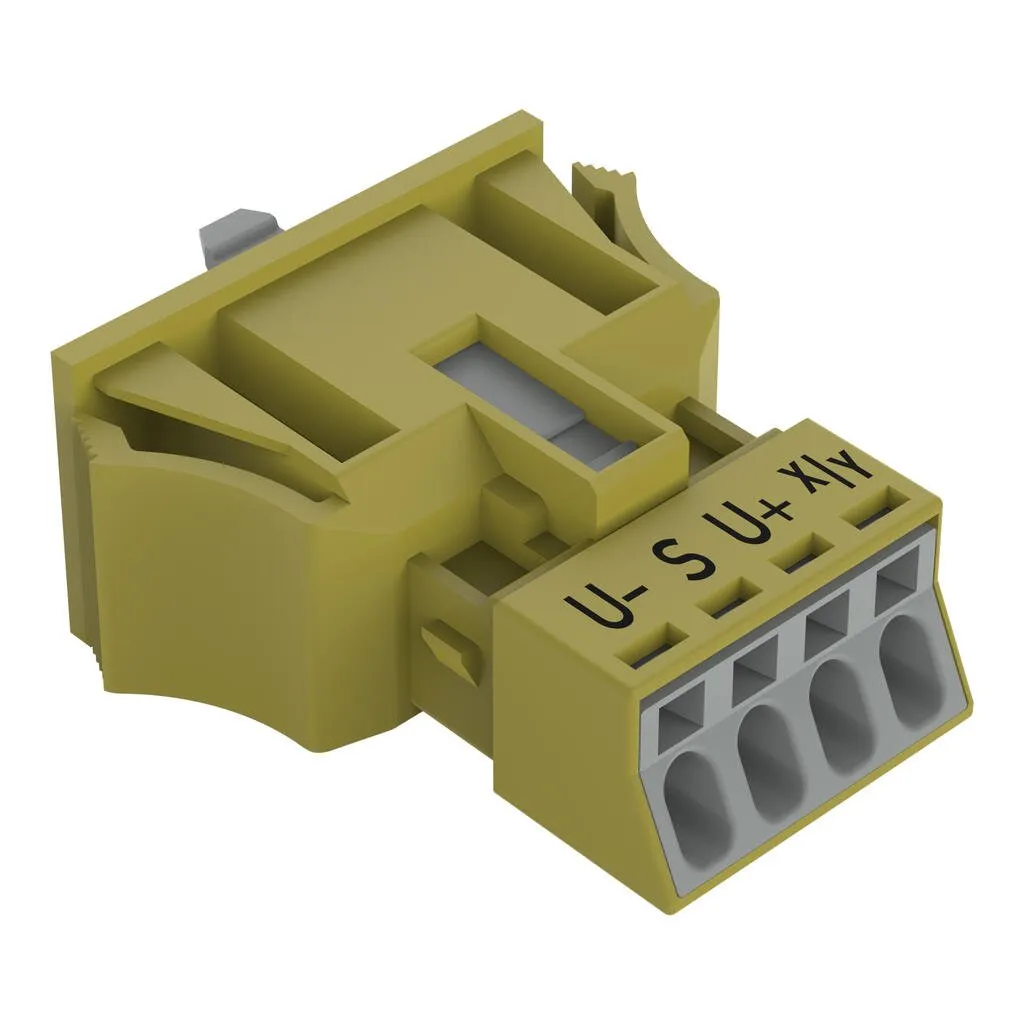

| Marking | U- S U+ X/Y |
| Potential marking | U- S U+ X/Y |
| Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
| Retention force of a plug-in connection | Locked: > 80 N |
| Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
| Number of mating cycles | 200, without resistive load |
| Housing sheet thickness | 0.5 … 2 mm / 0.02 … 0.079 inches |
| Mounting type | Snap-in flange |
| Protection type | IP40 |
Plug-in connection
| Contact type (pluggable connector) | Female connector/socket |
|---|---|
| Connector (connection type) | for conductor |
| Mismating protection | Yes |
| Note on mismating protection | All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole |
| Locking lever | yes |
| Locking of plug-in connection | locking lever |
| Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | light green |
| Insulation material (main housing) | Polyamide (PA66) |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Copper or copper alloy; surface-treated |
| Contact plating | Tin |
| Fire load | 0.034 MJ |
| Weight | 7.4 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| PU (SPU) | 50 (50) pcs |
|---|---|
| Packaging type | box |
| Country of origin | PL |
| GTIN | 4055143427944 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| eCl@ss 10.0 | 27-44-06-02 |
| eCl@ss 9.0 | 27-44-06-02 |
| ETIM 9.0 | EC002566 |
| ETIM 10.0 | EC002566 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
