Wago 883-2404
High-current terminal block, 883 Series, t-wrench und 8 mmThis through terminal block (item number 883-2404) streamlines wire connections, making them both quick and easy. Strip lengths must be 38 mm …
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

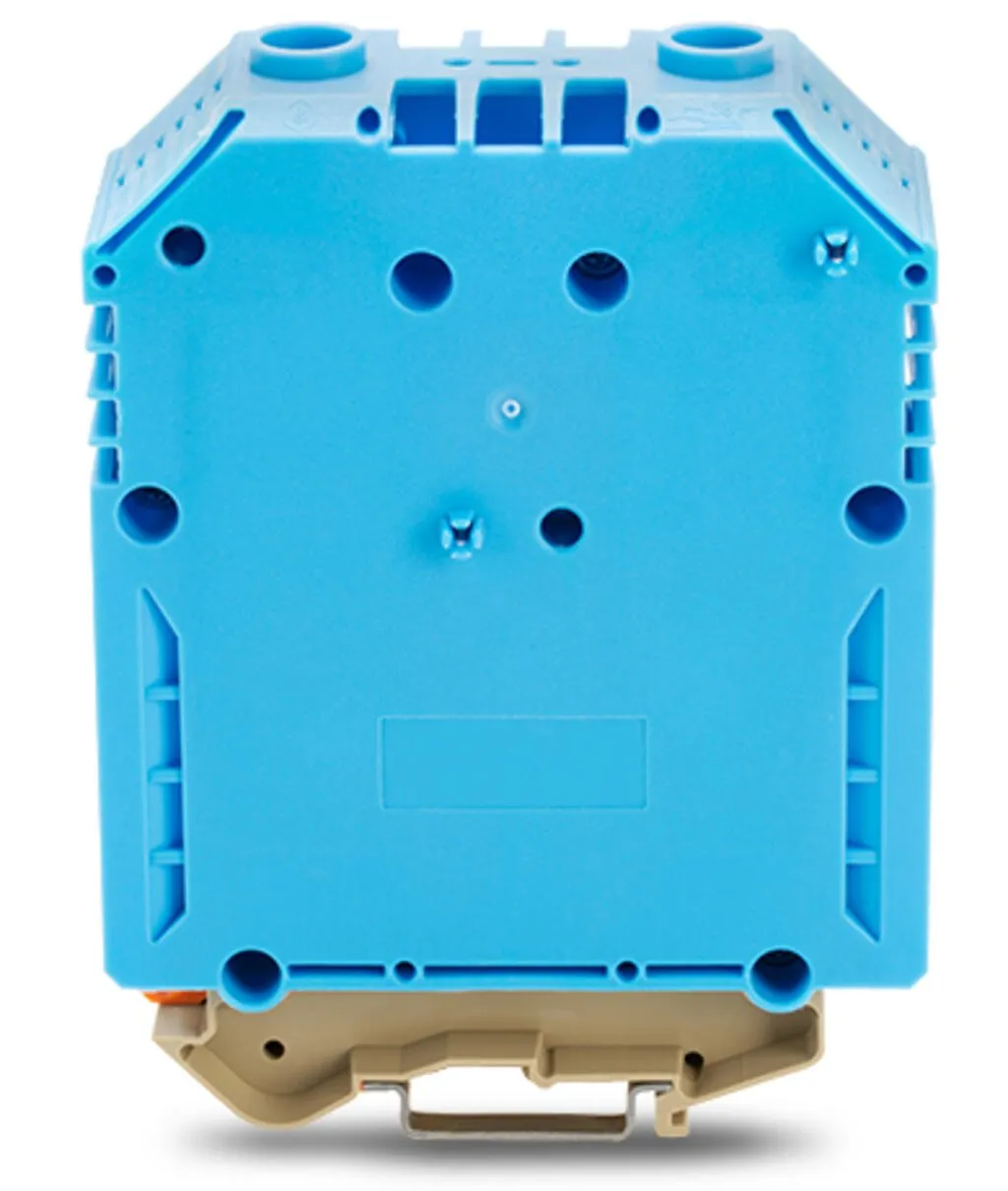

High-current terminal block, 883 Series, t-wrench und 8 mmThis through terminal block (item number 883-2404) streamlines wire connections, making them both quick and easy. Strip lengths must be 38 mm when connecting conductors to this through terminal block. This product features conductor terminals and utilizes a screw connection. Products with screw-clamp connections are easy to reuse on-site, allowing you to replace wires and devices using standard hand tools. This through terminal block is suitable for conductor cross sections ranging from 70 mm² to 240 mm².
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
|---|---|
| Nominal voltage (III/3) | 1000 V |
| Rated impulse withstand voltage (III / 3) | 8 kV |
| Rated current | 380 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 1000 V |
| Rated impulse withstand voltage | 8 kV |
| Rated current | 380 A |
Electrical data - Ratings per UL
| Approvals per | UL 1059 |
|---|---|
| Rated voltage UL (Use Group B) | 600 V |
| Rated current UL (Use Group B) | 370 A |
| Rated voltage UL (Use Group C) | 600 V |
| Rated current UL (Use Group C) | 370 A |
| Approvals per | UL 1059 / UL 1059 / UL 1059 |
| Use group | B / C / D |
| Rated voltage | 600 V / 600 V |
| Rated current | 370 A / 370 A |
Electrical data - Ratings per CSA
| Approvals per | CSA 22.2 No 158 |
|---|---|
| Rated voltage CSA (Use Group C) | 600 V |
| Rated current CSA (Use Group C) | 370 A |
| Approvals per | CSA 22.2 No 158 / CSA 22.2 No 158 / CSA 22.2 No 158 |
| Use group | B / C / D |
| Rated voltage | 600 V |
| Rated current | 370 A |
Electrical data - Power Loss
| Power loss, per pole (potential) | 11.552 W |
|---|---|
| Rated current I<sub>N</sub> for power loss specification | 380 A |
| Resistance value for specified, current-dependent power loss | 8 Ω |
Electrical data - General information
| Wiring direction | Side-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
| Number of jumper slots | 2 |
Connection data - Connection 1
| Connection technology | Screw connection |
|---|---|
| Actuation type | T-wrench; 8 mm |
| Connectable conductor materials | Copper, Aluminum |
| Connectable conductor materials (note) | Terminating Aluminum ConductorsBoth restrictions and application notes must be observed when terminating aluminum conductors. These instructions can be found in the WAGO Webshop under “Downloads – Documentation – Additional Information: Terminating Aluminum Conductors.” |
| Nominal cross-section | 240 mm² |
| Solid conductor | 70 … 240 mm² / 2/0 AWG … 500 kcmil |
| Stranded conductor | 70 … 240 mm² / 2/0 AWG … 500 kcmil |
| Fine-stranded conductor | 70 … 240 mm² / 2/0 AWG … 500 kcmil |
| Fine-stranded conductor; with insulated ferrule | 70 … 185 mm² / 2/0 AWG … 350 kcmil |
| Strip length | 38 mm / 1.5 inches |
| Wiring direction | Side-entry wiring |
| Screw thread | M10 |
Physical data
| Width | 36 mm / 1.417 inches |
|---|---|
| Height | 93 mm / 3.661 inches |
| Depth from upper-edge of DIN-rail | 126.3 mm / 4.972 inches |
Mechanical data
| Tightening torque | 10 … 20 Nm |
|---|---|
| Mounting type | DIN-35 rail, DIN-35/32 rail |
| Marking level | Side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | blue |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V2 |
| Weight | 352.4 g |
Environmental requirements
| Continuous operating temperature | -35 … +105 °C |
|---|
Commercial data
| PU (SPU) | 5 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143940474 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ETIM 9.0 | EC000897 |
| ETIM 10.0 | EC000897 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
