Wago 883-1204

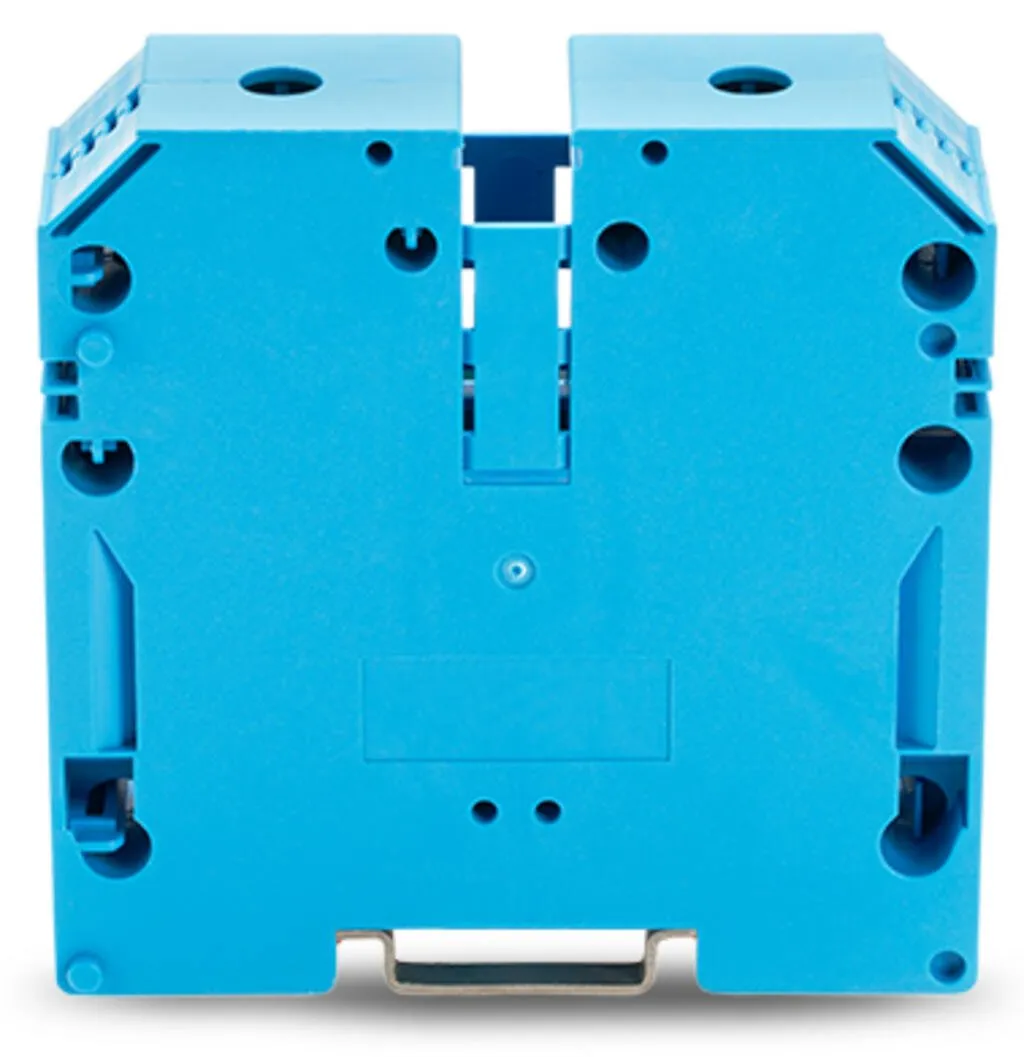

High-current terminal block, 883 Series, screw connectionEasily, quickly and safely connect conductors with this through terminal block (item number 883-1204). Conductors should only be connected to t…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High-current terminal block, 883 Series, screw connectionEasily, quickly and safely connect conductors with this through terminal block (item number 883-1204). Conductors should only be connected to this through terminal block if their strip length is 27 mm . Featuring conductor terminals along with a screw connection, this connector delivers reliable performance. When properly tightened, screw-clamp connections ensure that wires are connected securely—both physically and electrically—as they contact a large section of wire. This through terminal block is suitable for conductor cross sections ranging from 16 mm² to 150 mm².
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
|---|---|
| Nominal voltage (III/3) | 1000 V |
| Rated impulse withstand voltage (III / 3) | 8 kV |
| Rated current | 269 A |
| Current at conductor cross-section (max.) mm² | 290 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 1000 V |
| Rated impulse withstand voltage | 8 kV |
| Rated current | 269 A |
| Current at conductor cross-section (max.) mm² | 290 A |
Electrical data - Ratings per UL
| Approvals per | UL 1059 |
|---|---|
| Rated voltage UL (Use Group B) | 600 V |
| Rated current UL (Use Group B) | 228 A |
| Rated voltage UL (Use Group C) | 600 V |
| Rated current UL (Use Group C) | 228 A |
| Rated voltage UL (Use Group D) | 600 V |
| Rated current UL (Use Group D) | 228 A |
| Approvals per | UL 1059 / UL 1059 / UL 1059 |
| Use group | B / C / D |
| Rated voltage | 600 V / 600 V / 600 V |
| Rated current | 228 A / 228 A / 228 A |
Electrical data - Ratings per CSA
| Approvals per | CSA 22.2 No 158 |
|---|---|
| Rated voltage CSA (Use Group B) | 600 V |
| Rated current CSA (Use Group B) | 228 A |
| Rated voltage CSA (Use Group C) | 600 V |
| Rated current CSA (Use Group C) | 228 A |
| Rated voltage CSA (Use Group D) | 600 V |
| Rated current CSA (Use Group D) | 228 A |
| Approvals per | CSA 22.2 No 158 / CSA 22.2 No 158 / CSA 22.2 No 158 |
| Use group | B / C / D |
| Rated voltage | 600 V / 600 V / 600 V |
| Rated current | 228 A / 228 A / 228 A |
Electrical data - Power Loss
| Power loss, per pole (potential) | 8.683 W |
|---|---|
| Rated current I<sub>N</sub> for power loss specification | 269 A |
| Resistance value for specified, current-dependent power loss | 0 Ω |
Electrical data - General information
| Wiring direction | Side-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
| Number of jumper slots | 1 |
Connection data - Connection 1
| Connection technology | Screw connection |
|---|---|
| Actuation type | T-wrench; 6 mm |
| Connectable conductor materials | Copper, Aluminum |
| Connectable conductor materials (note) | Terminating Aluminum ConductorsBoth restrictions and application notes must be observed when terminating aluminum conductors. These instructions can be found in the WAGO Webshop under “Downloads – Documentation – Additional Information: Terminating Aluminum Conductors.” |
| Nominal cross-section | 120 mm² |
| Solid conductor | 16 … 150 mm² / 6 AWG … 300 kcmil |
| Stranded conductor | 16 … 150 mm² / 6 AWG … 300 kcmil |
| Fine-stranded conductor | 16 … 120 mm² / 6 AWG … 250 kcmil |
| Fine-stranded conductor; with insulated ferrule | 16 … 95 mm² / 6 … 3/0 AWG |
| Strip length | 27 mm / 1.06 inches |
| Wiring direction | Side-entry wiring |
| Screw thread | M10 |

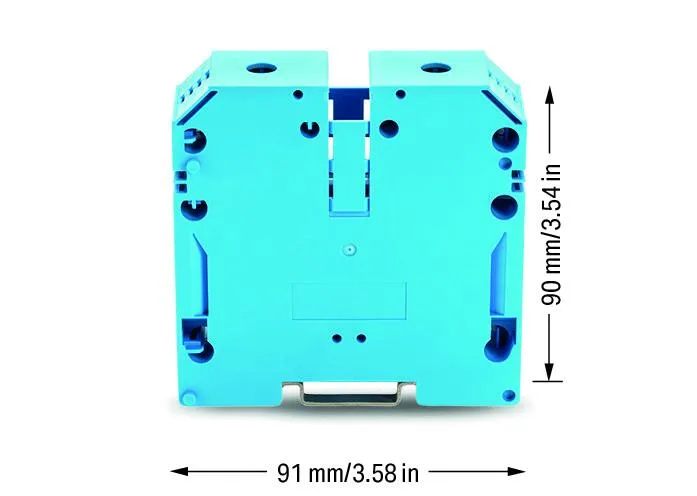

Physical data
| Width | 27 mm / 1.063 inches |
|---|---|
| Height | 91 mm / 3.583 inches |
| Depth from upper-edge of DIN-rail | 90 mm / 3.543 inches |
Mechanical data
| Tightening torque | 12 … 20 Nm |
|---|---|
| Mounting type | DIN-35 rail, DIN-rail 35 x 7.5 |
| Marking level | Side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | blue |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Weight | 280.7 g |
Environmental requirements
| Continuous operating temperature | -35 … +105 °C |
|---|
Commercial data
| PU (SPU) | 5 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143940610 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ETIM 9.0 | EC000897 |
| ETIM 10.0 | EC000897 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
