Wago 862-1525
Chassis-mount terminal strip, 862 Series, push-buttonOur chassis-mount terminal strip (item number 862-1525) simplifies electrical installations. Ensure that the strip lengths are between 10 and 11 mm…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

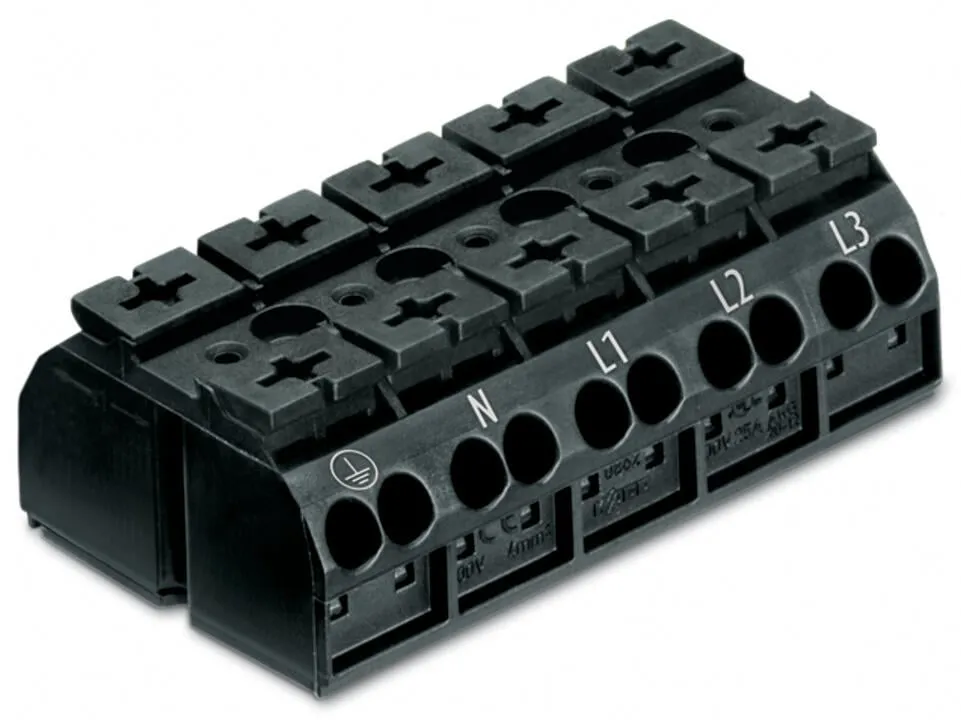

Chassis-mount terminal strip, 862 Series, push-buttonOur chassis-mount terminal strip (item number 862-1525) simplifies electrical installations. Ensure that the strip lengths are between 10 and 11 mm when connecting conductors to this chassis-mount terminal strip. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for any type of conductor. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. The dimensions are (60 x 27.5 x 35) mm (width x height x depth). Depending on the type of conductor, this chassis-mount terminal strip is ideal for conductor cross sections ranging from 0.5 mm² to 4 mm².
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 500 V |
|---|---|
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 32 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - General information
| Wiring direction | Side-entry wiring |
|---|
Connection data
| Clamping units | 20 |
|---|---|
| Total number of potentials | 5 |
| PE function | without PE contact |
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Push-button |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Solid conductor; push-in termination | 0.75 … 4 mm² / 18 … 12 AWG |
| Stranded conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Fine-stranded conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 1.5 mm² / 20 … 16 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 0.75 … 1.5 mm² / 18 … 16 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 10 … 11 mm / 0.39 … 0.43 inches |
| Pole number | 5 |
| Wiring direction | Side-entry wiring |

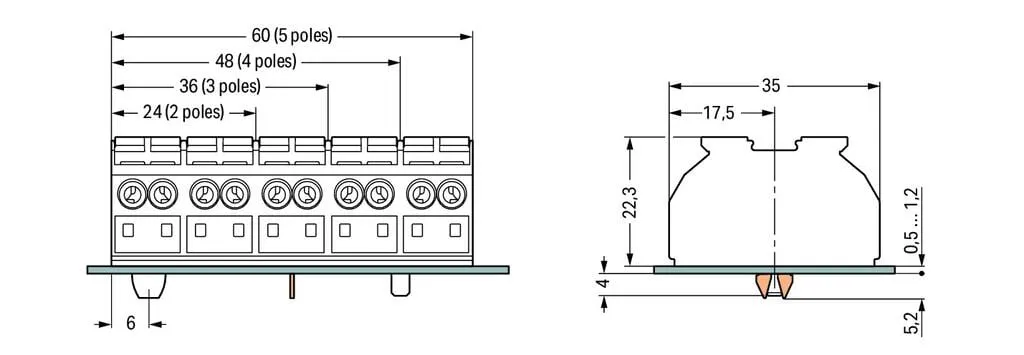

Physical data
| Pin spacing | 12 mm / 0.472 inches |
|---|---|
| Width | 60 mm / 2.362 inches |
| Height | 27.5 mm / 1.083 inches |
| Height from the surface | 22.3 mm / 0.878 inches |
| Depth | 35 mm / 1.378 inches |
Mechanical data
| Marking | ⏚-N-L1-L2-L3 |
|---|---|

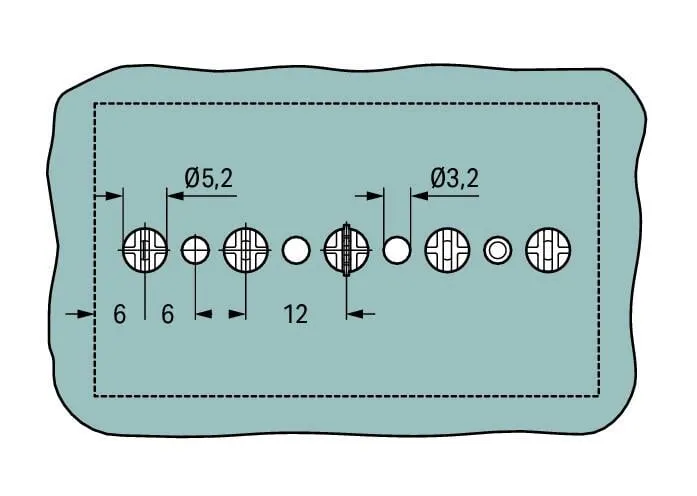

| Mounting type | Snap-in mounting foot at position 2+4 |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | black |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.643 MJ |
| Halogen-free | Yes |
| Weight | 34.2 g |
Commercial data
| PU (SPU) | 200 pcs |
|---|---|
| Packaging type | bag |
| Country of origin | DE |
| GTIN | 4044918509527 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 |
| ETIM 10.0 | EC001284 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
