Wago 862-1503/999-950

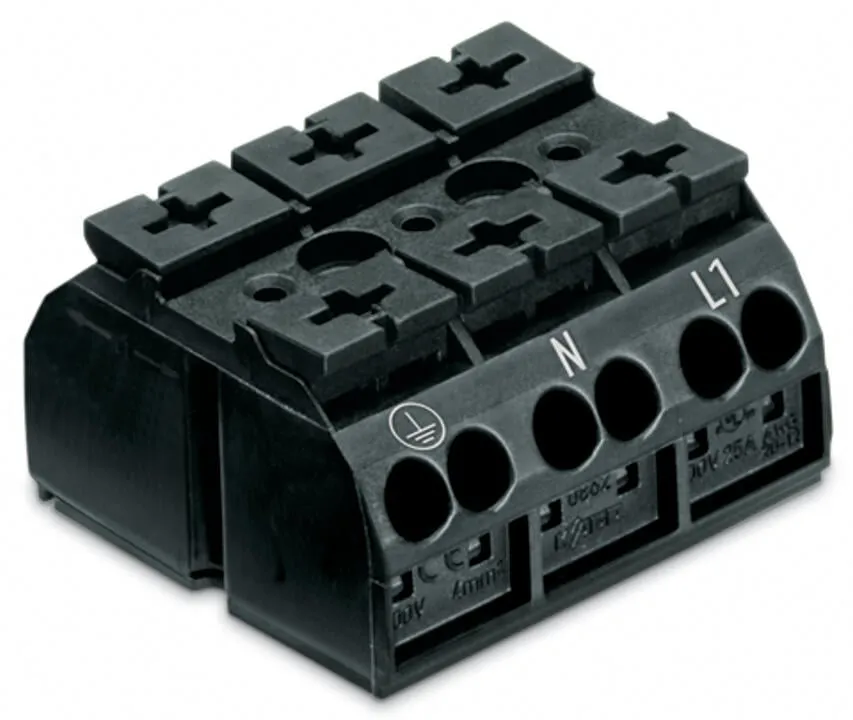

Chassis-mount terminal strip, 862 Series, push-buttonThis chassis-mount terminal strip (item number 862-1503/999-950) is designed for fault-free electrical installations. Conductors can only be connec…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Chassis-mount terminal strip, 862 Series, push-buttonThis chassis-mount terminal strip (item number 862-1503/999-950) is designed for fault-free electrical installations. Conductors can only be connected to this chassis-mount terminal strip if their strip length is between 10 and 11 mm . Featuring conductor terminals along with Push-in CAGE CLAMP®, this product delivers reliable performance. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor’s ferrule is not necessary. Dimensions: (36 x 27.5 x 35) mm (width x height x depth). This chassis-mount terminal strip is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm².
Specification
Electrical data - Ex information
| Rated voltage EN (Ex e II) | 440 V |
|---|---|
| Rated current (Ex e II) | 28 A |
Electrical data - General information
| Wiring direction | Side-entry wiring |
|---|
Connection data
| Clamping units | 12 |
|---|---|
| Total number of potentials | 3 |
| PE function | without PE contact |
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Push-button |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Solid conductor; push-in termination | 0.75 … 4 mm² / 18 … 12 AWG |
| Stranded conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Fine-stranded conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 1.5 mm² / 20 … 16 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 0.75 … 1.5 mm² / 18 … 16 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 10 … 11 mm / 0.39 … 0.43 inches |
| Pole number | 3 |
| Wiring direction | Side-entry wiring |

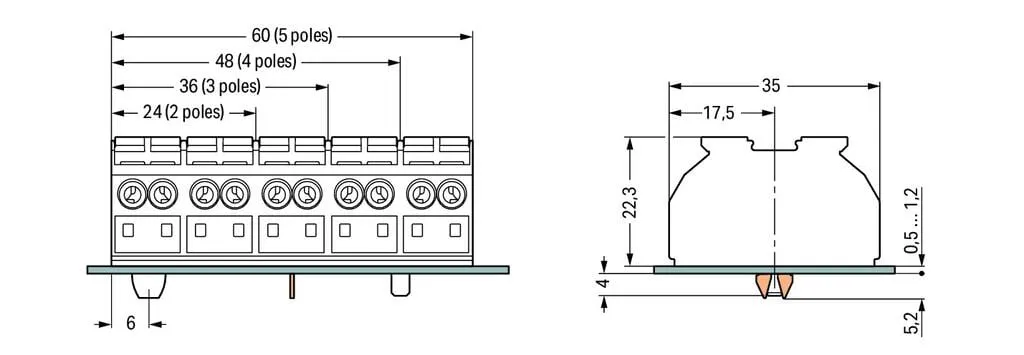

Physical data
| Pin spacing | 12 mm / 0.472 inches |
|---|---|
| Width | 36 mm / 1.417 inches |
| Height | 27.5 mm / 1.083 inches |
| Height from the surface | 22.3 mm / 0.878 inches |
| Depth | 35 mm / 1.378 inches |
Mechanical data
| Marking | ⏚-N-L1 |
|---|---|
| Mounting type | Screw mounting |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | black |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.383 MJ |
| Halogen-free | Yes |
| Weight | 20.5 g |
Commercial data
| PU (SPU) | 250 pcs |
|---|---|
| Packaging type | bag |
| Country of origin | DE |
| GTIN | 4045454789206 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 |
| ETIM 10.0 | EC001284 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
