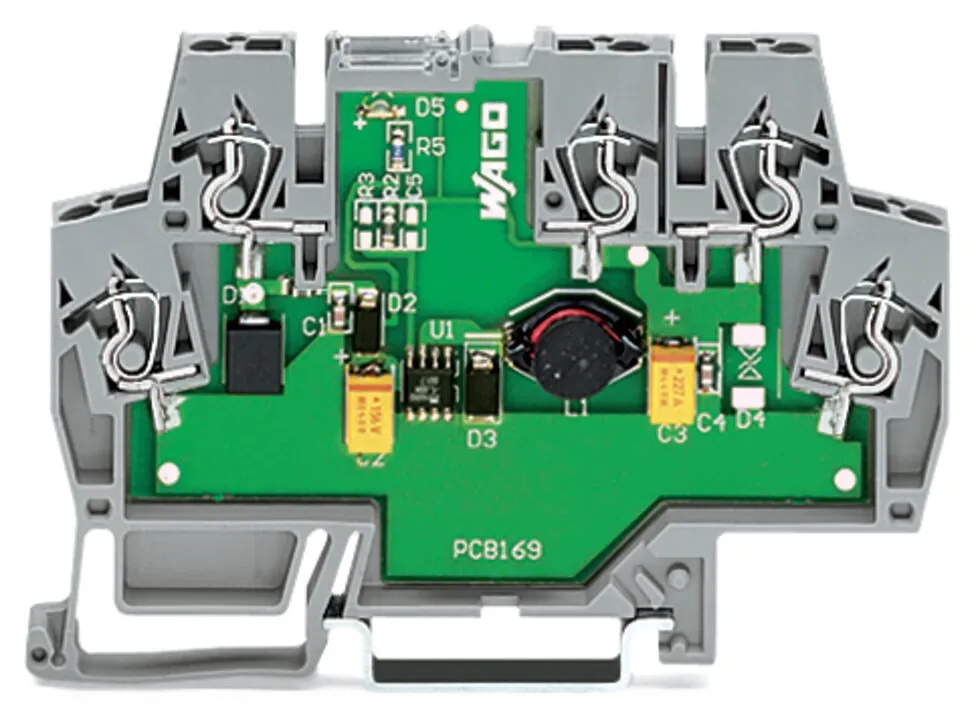

Wago 859-806
DC/DC Converter; 12 VDC input voltage; 12 VDC output voltage; 0.5 A output current 859-806
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DC/DC Converter; 12 VDC input voltage; 12 VDC output voltage; 0.5 A output current 859-806
Specification
Technical data - Input
| Nominal input voltage U<sub>i nom</sub> | 12 VDC |
|---|---|
| Input voltage range | 8 … 16 VDC |
| Nominal mains frequency range | 0 Hz |
| Mains failure hold-up time | ≥ 0.5 ms |
Technical data - Output
| Nominal output voltage U<sub>o nom</sub> | 12 VDC |
|---|---|
| Output voltage range | ±2 % |
| Nominal output current I<sub>o nom</sub> | 0.5 A |
| Residual ripple | ≤ 100 mV |
| Switching frequency | 400 kHz (Nominal) |
| Overload behavior | 1 A, max. 1 min (permanent overload leads to the destruction of the module); short-circuit-protected |
Technical data - Signaling and communication
| Signaling | 1 x LED |
|---|
Technical data - Efficiency/power losses
| Efficiency (typ.) | 89 % |
|---|
Technical data - Circuit protection
| Internal fuse | 2 A (slow) |
|---|
Safety and protection
| Protection class | III |
|---|---|
| Protection type | IP20; per EN 60529 |
| Reverse voltage protection | Yes |
| Pollution degree | 2 |
| Series operation | No |
Connection data
| Number of jumper slots | 2 |
|---|
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| WAGO connector | WAGO 859 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 91 mm / 3.583 inches |
| Depth from upper-edge of DIN-rail | 56 mm / 2.205 inches |
Mechanical data
| Housing design | Rail-mount terminal block |
|---|---|
| Mounting type | DIN-35 rail, DIN-35 rail |
Material data
| Fire load | 0.313 MJ |
|---|---|
| Weight | 23 g |
Environmental requirements
| Ambient temperature (operation) | 0 … +40 °C |
|---|---|
| Relative humidity | 5 … 85 % (non-condensing) |
| Operating altitude (max.) | 2000 m |
| Temperature range of connection cable | ≥ (Tambient + 15 K) |
Standards and specifications
| Conformity marking | CE |
|---|---|
| Standards/specifications | EN 61000-6-2, EN 61000-6-4 |
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 25 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821771050 |
| Customs tariff number | 85044083900 |
Product Classification
| UNSPSC | 39121004 |
|---|---|
| ETIM 9.0 | EC002540 |
| ETIM 10.0 | EC002540 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 75980-60-8, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide, Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)- |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Bulgaria) | cdcf6297-e839-4ee1-b127-53c6f15125ac |
| SCIP notification number (Czech Republic) | 93fda6ae-0e9c-4226-b0dc-ac7a27622ff9 |
