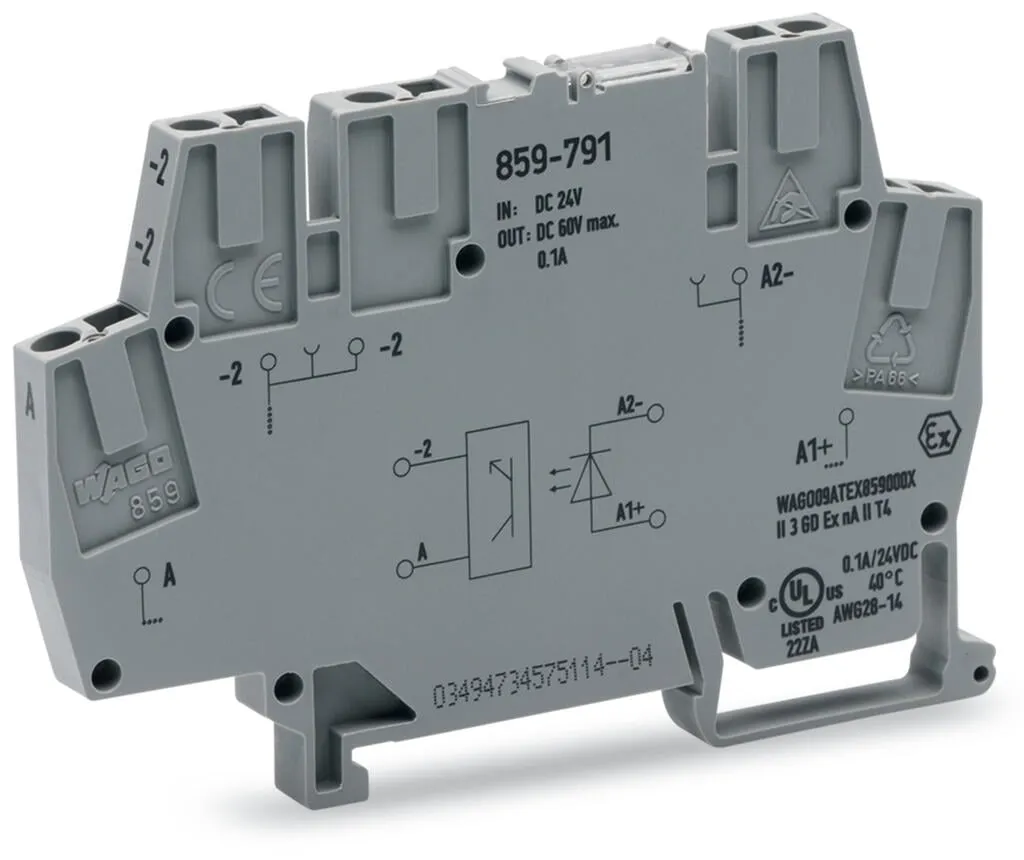

Wago 859-791
Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 3 … 60 VDC; Limiting continuous current: 0.1 A; 2-wire connection; Railway; Red status indicator; Module width: 6 mm; gray 859-…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 3 … 60 VDC; Limiting continuous current: 0.1 A; 2-wire connection; Railway; Red status indicator; Module width: 6 mm; gray 859-791
Specification
Notes
| Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. |
|---|
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 24 VDC |
|---|---|
| Input voltage range | 16.8 … 30 VDC |
| Input voltage range (low level) | 0 … 5 VDC |
| Input voltage range (high level) | 16 … 30 VDC |
| Nominal input current at U<sub>N</sub> | 5 mA |
| Input current range | 2 … 7 mA |
Technical data - Load circuit

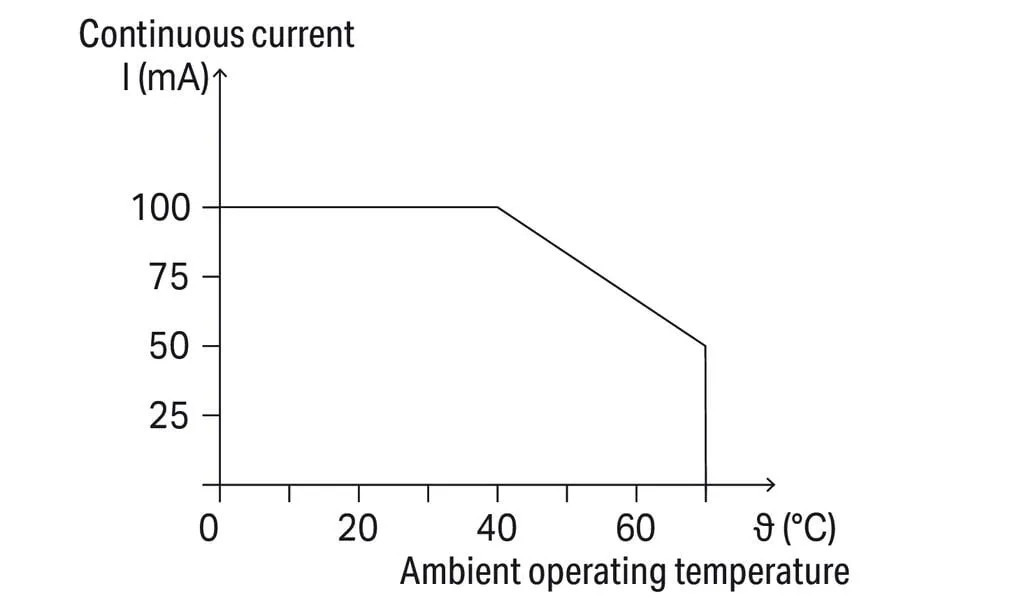

| Circuit type | 2-wire connection |
|---|---|
| Limiting continuous current | 0.2 A |
| Nominal output voltage | 24 VDC |
| Output voltage range | 3 … 60 VDC |
| Voltage drop | ≤ 1.5 VDC |
| Leakage current at rated voltage | ≤ 10 µA |
| Turn-on time | ≤ 30 µs |
| Turn-off time | ≤ 50 µs |
| Rise time (t<sub>10-90</sub>) | 19 µs |
| Drop-out time (t<sub>90-10</sub>) | 35 µs |
| Switching frequency | ≤ 4 kHz |
Technical data - Signaling
| Status indicator | Red LED |
|---|
Safety and protection
| Rated voltage | 300 V |
|---|---|
| Overvoltage category | II |
| Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1 min) | 2.5 kVrms |
| Insulation type (control/load circuit) | Basic insulation |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
| Insulation type (to adjacent devices of different types) | Basic insulation |
| Protection type | IP20; in connected state or when using 859-525 end plate |
Connection data
| Connection technology | CAGE CLAMP® |
|---|---|
| Solid conductor | 0.2 … 2.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor | 0.14 … 2.5 mm² / 26 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.14 … 1.5 mm² / 26 … 16 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 91 mm / 3.583 inches |
| Depth from upper-edge of DIN-rail | 56 mm / 2.205 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Mounting position | horizontal (standing/lying); vertical |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Insulation material (main housing) | Polyamide (PA66) |
| Material group | I |
| Flammability class per UL94 | V0 |
| Fire load | 0.313 MJ |
| Weight | 18.7 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
|---|---|
| Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +40 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Processing temperature | -25 … +50 °C |
| Temperature range of connection cable | ≥ (Tambient + 20 K) |
| Relative humidity | 5 … 95 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Standards/specifications | EN 61010-2-201, EN 61000-6-2, EN 61000-6-3, EN 50121-3-2, UL 508, ATEX |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 10 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4055143606240 |
| Customs tariff number | 85365005000 |
Product Classification
| UNSPSC | 39121524 |
|---|---|
| eCl@ss 10.0 | 27-26-15-03 |
| eCl@ss 9.0 | 27-26-15-03 |
| ETIM 9.0 | EC001504 |
| ETIM 10.0 | EC001504 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 4837b560-d9b1-4cfe-a7d8-eb50c2dbbe34 |
| SCIP notification number (Belgium) | ce244fe2-831d-4838-ad8f-ac1f82b13030 |
| SCIP notification number (Bulgaria) | 3c0a4c51-5401-4a31-9f5f-845915215ff4 |
| SCIP notification number (Czech Republic) | 519fe424-d619-4e4c-876c-6216fc01e344 |
| SCIP notification number (Denmark) | 29302a6b-fb9c-461b-a6a3-c9deab4c3df7 |
| SCIP notification number (Finland) | 9c130c67-4c2d-4d66-9e1d-45ba2047f2c4 |
| SCIP notification number (France) | 1e8f375b-9376-4cc1-82e4-e7b8d13e18d9 |
| SCIP notification number (Germany) | 0a7f6c62-e075-4ba1-84a3-fe45b52f5185 |
| SCIP notification number (Hungary) | 3595ed46-a2e5-45b8-8562-0ec555a5b91a |
| SCIP notification number (Italy) | b913dfa1-a1ee-4858-93ff-40fe1f3dc068 |
| SCIP notification number (Netherlands) | c34396a6-197c-4331-a887-b6a5a1f554c3 |
| SCIP notification number (Poland) | 3872d5c6-c77a-4f03-a340-6b7632263fda |
| SCIP notification number (Romania) | 3189f07e-3977-4dea-9517-3bf7517b4e35 |
| SCIP notification number (Sweden) | ea0d85d5-4d56-4b3c-99a2-f53442e691e4 |
