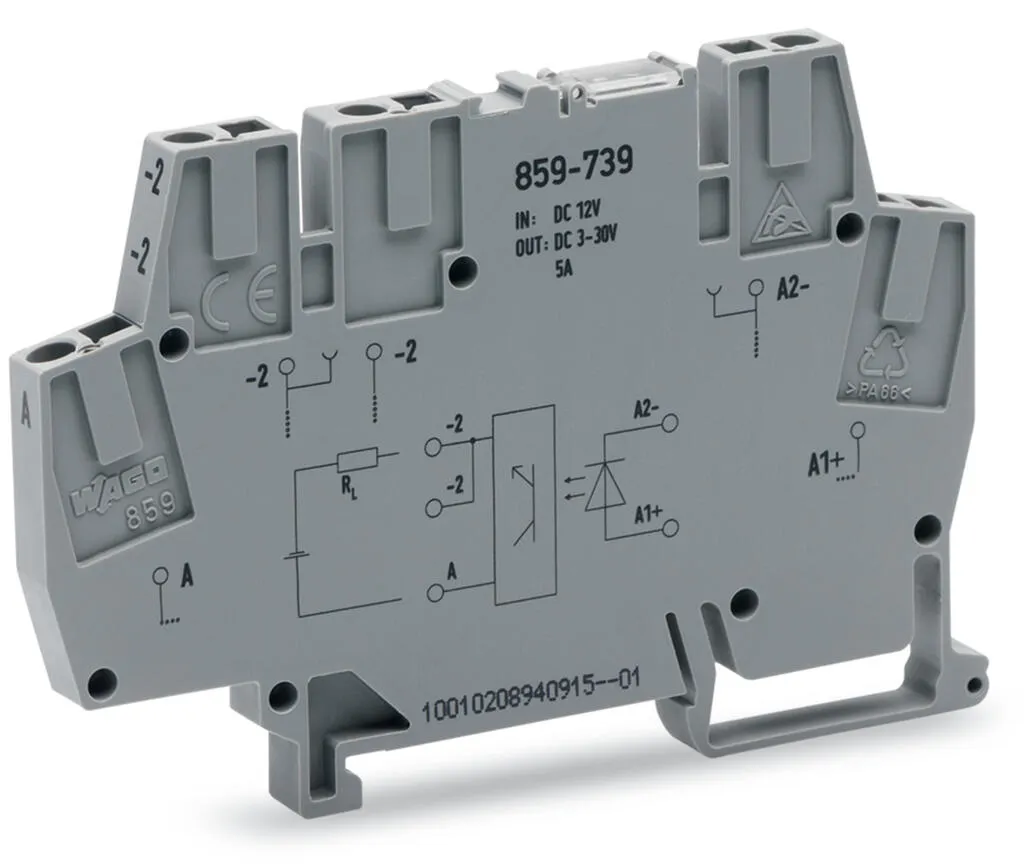

Wago 859-739
Optocoupler module; Nominal input voltage: 12 VDC; Output voltage range: 3 … 30 VDC; Limiting continuous current: 5 A; 2-wire connection; Red status indicator; Module width: 6 mm; gray 859-739
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Optocoupler module; Nominal input voltage: 12 VDC; Output voltage range: 3 … 30 VDC; Limiting continuous current: 5 A; 2-wire connection; Red status indicator; Module width: 6 mm; gray 859-739
Specification
Notes
| Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. |
|---|
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 12 VDC |
|---|---|
| Input voltage range (low level) | 0 … 5 VDC |
| Input voltage range (high level) | 9.6 … 14.4 VDC |
| Nominal input current at U<sub>N</sub> | 4 mA |
Technical data - Load circuit
| Circuit type | 2-wire connection |
|---|---|

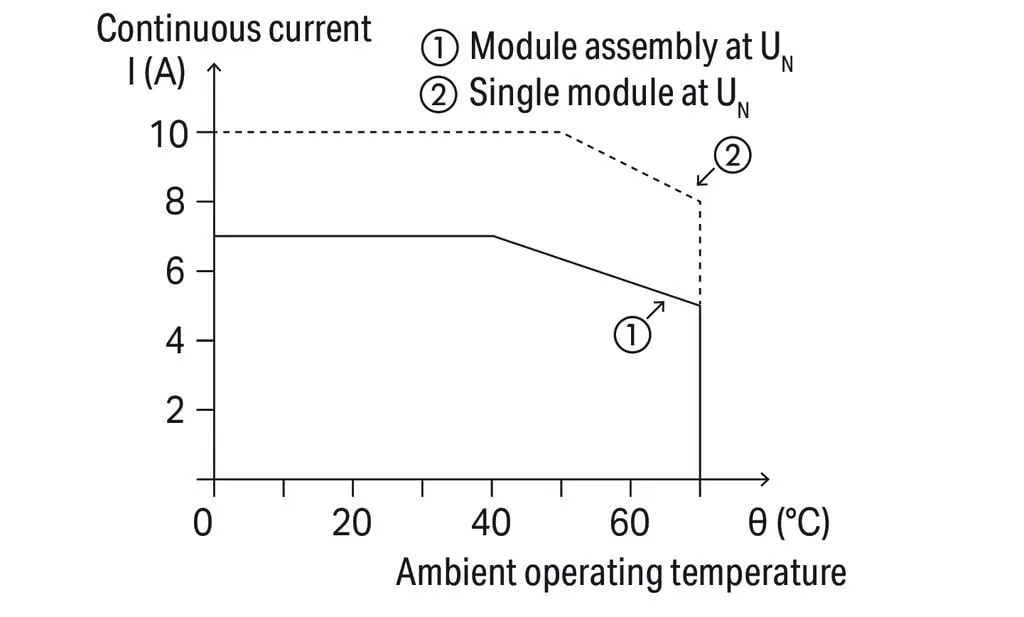

| Limiting continuous current | 5 A |
| Peak output current | 25 A |
| Nominal output voltage | 24 VDC |
| Output voltage range | 3 … 30 VDC |
| Voltage drop | ≤ 0.2 VDC |
| Turn-on time | ≤ 200 µs |
| Turn-off time | ≤ 450 µs |
| Switching frequency | ≤ 100 Hz |
Technical data - Signaling
| Status indicator | Red LED |
|---|
Safety and protection
| Rated voltage | 300 V |
|---|---|
| Overvoltage category | II |
| Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1 min) | 2.5 kVrms |
| Insulation type (control/load circuit) | Basic insulation |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
| Insulation type (to adjacent devices of different types) | Basic insulation |
| Protection type | IP20; in connected state or when using 859-525 end plate |
Connection data
| Connection technology | CAGE CLAMP® |
|---|---|
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 91 mm / 3.583 inches |
| Depth from upper-edge of DIN-rail | 56 mm / 2.205 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Mounting position | horizontal (standing/lying); vertical |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Insulation material (main housing) | Polyamide (PA66) |
| Material group | I |
| Flammability class per UL94 | V0 |
| Fire load | 0.313 MJ |
| Weight | 19.2 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -25 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +70 °C |
| Processing temperature | -25 … +50 °C |
| Temperature range of connection cable | ≥ (Tambient + 20 K) |
| Relative humidity | 5 … 95 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Standards/specifications | EN 61010-2-201, EN 61000-6-2, EN 61000-6-3, EN 61373 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 10 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4055143605397 |
| Customs tariff number | 85365005000 |
Product Classification
| UNSPSC | 39121521 |
|---|---|
| eCl@ss 10.0 | 27-26-15-03 |
| eCl@ss 9.0 | 27-26-15-03 |
| ETIM 9.0 | EC001504 |
| ETIM 10.0 | EC001504 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | 39f3c423-b615-4841-aff8-23d7c9121c24 |
| SCIP notification number (Belgium) | 6f4c2975-49a1-4639-be29-e53752b95fb0 |
| SCIP notification number (Bulgaria) | bb74e391-e8c3-4041-9aeb-959a7ac3cd27 |
| SCIP notification number (Czech Republic) | 4280c7fd-438b-4b0e-965d-ee6e17b3fd3a |
| SCIP notification number (Denmark) | fc47b11f-b287-4a4b-a461-8c2927756c55 |
| SCIP notification number (Finland) | c2e510f2-c813-4187-91e1-69dffe2f9819 |
| SCIP notification number (France) | 756fd24a-889f-46bd-a7d2-1f1c1d26ec5c |
| SCIP notification number (Germany) | 463e7149-00b3-4bab-b38c-2732020c99c8 |
| SCIP notification number (Hungary) | 055de816-2613-4c2b-b7c7-6ec3393ec24a |
| SCIP notification number (Italy) | 50028556-3f23-470b-9feb-62fd7ace9062 |
| SCIP notification number (Netherlands) | e3075e2c-132f-42d2-bc9c-b0af024674bf |
| SCIP notification number (Poland) | 312f46b2-60be-49c0-952c-8e69790d4d26 |
| SCIP notification number (Romania) | 82e9b537-d7a1-4cd1-bc8f-e449d081aae3 |
| SCIP notification number (Sweden) | 0e39ea5b-cf32-4042-8008-9e402cba1a55 |
