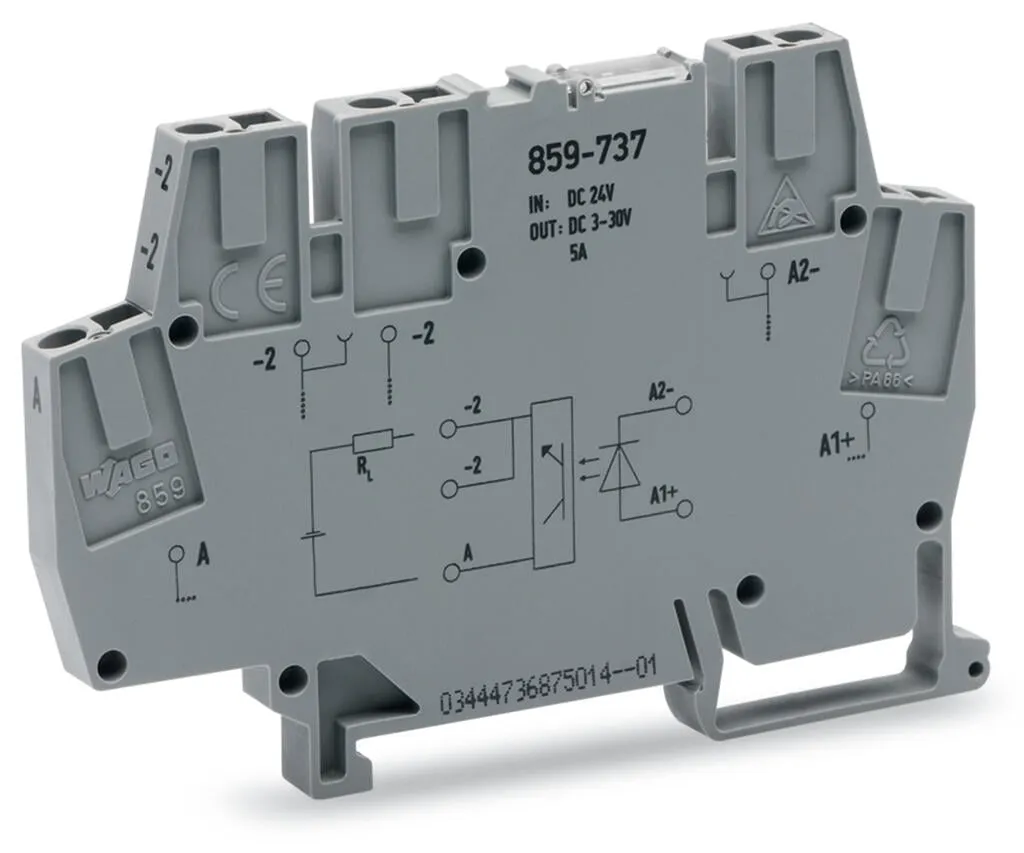

Wago 859-737
Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 3 … 30 VDC; Limiting continuous current: 5 A; 2-wire connection; Frequency: 3 kHz; Red status indicator; Module width: 6 mm; gr…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 3 … 30 VDC; Limiting continuous current: 5 A; 2-wire connection; Frequency: 3 kHz; Red status indicator; Module width: 6 mm; gray 859-737
Specification
Notes
| Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. |
|---|
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 24 VDC |
|---|---|
| Input voltage range (low level) | 0 … 9 VDC |
| Input voltage range (high level) | 15 … 66 VDC |
| Nominal input current at U<sub>N</sub> | 4 mA |
| Input current range | 2 … 7 mA |
Technical data - Load circuit
| Circuit type | 2-wire connection |
|---|---|

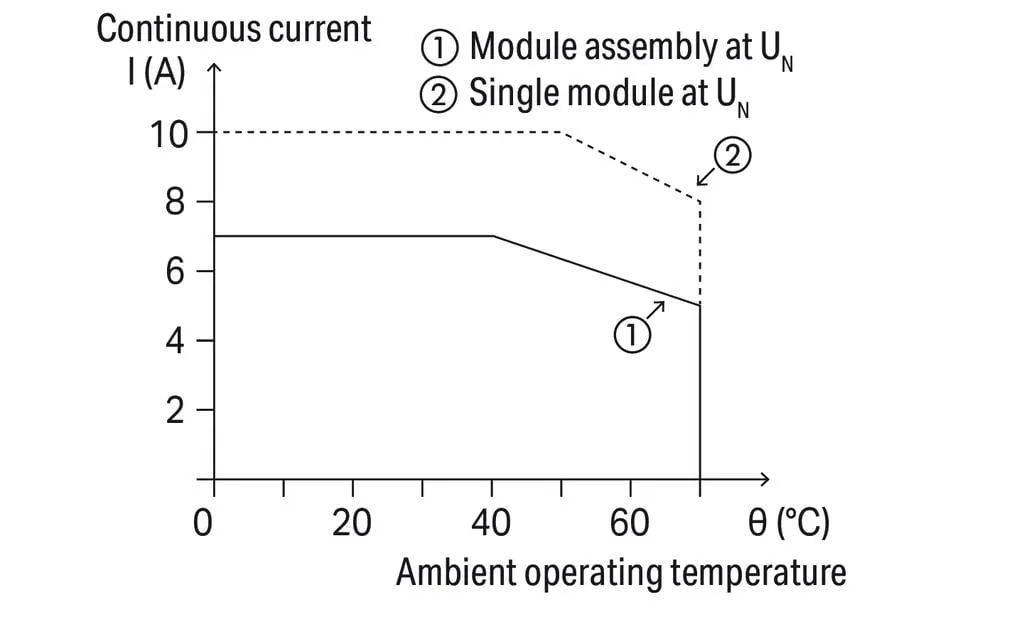

| Limiting continuous current | 10 A |
| Peak output current | 50 A |
| Nominal output voltage | 24 VDC |
| Output voltage range | 3 … 30 VDC |
| Voltage drop | ≤ 0,25 VDC |
| Leakage current at rated voltage | ≤ 5 µA |
| Turn-on time | ≤ 40 µs |
| Turn-off time | ≤ 70 µs |
| Rise time (t<sub>10-90</sub>) | 18 µs |
| Drop-out time (t<sub>90-10</sub>) | 13 µs |

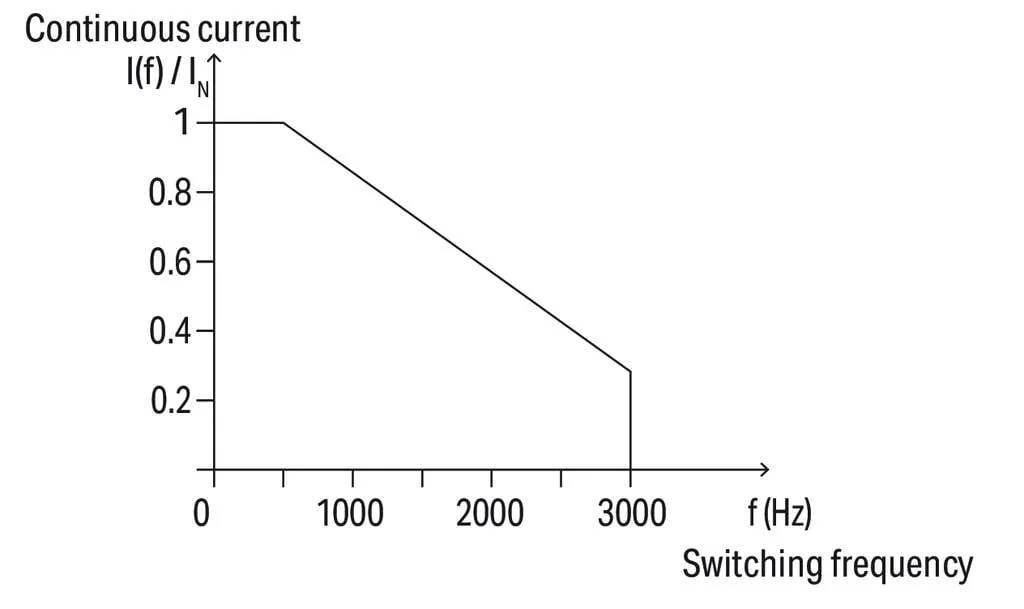

| Switching frequency | ≤ 3 kHz |
Technical data - Signaling
| Status indicator | Red LED |
|---|
Safety and protection
| Rated voltage | 300 V |
|---|---|
| Overvoltage category | II |
| Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1 min) | 2.5 kVrms |
| Insulation type (control/load circuit) | Basic insulation |
| Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
| Insulation type (to adjacent devices of different types) | Basic insulation |
| Protection type | IP20; in connected state or when using 859-525 end plate |
Connection data
| Connection technology | CAGE CLAMP® |
|---|---|
| Solid conductor | 0.2 … 2.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor | 0.14 … 2.5 mm² / 26 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.14 … 1.5 mm² / 26 … 16 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 91 mm / 3.583 inches |
| Depth from upper-edge of DIN-rail | 56 mm / 2.205 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Mounting position | horizontal (standing/lying); vertical |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Insulation material (main housing) | Polyamide (PA66) |
| Material group | I |
| Flammability class per UL94 | V0 |
| Fire load | 0.313 MJ |
| Weight | 19.7 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Processing temperature | -25 … +50 °C |
| Temperature range of connection cable | ≥ (Tambient + 20 K) |
| Relative humidity | 5 … 95 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Standards/specifications | EN 61010-2-201, EN 61000-6-2, EN 61000-6-3, EN 61373 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4055143605328 |
| Customs tariff number | 85365005000 |
Product Classification
| UNSPSC | 39121521 |
|---|---|
| eCl@ss 10.0 | 27-26-15-03 |
| eCl@ss 9.0 | 27-26-15-03 |
| ETIM 9.0 | EC001504 |
| ETIM 10.0 | EC001504 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a), 7(c)-I |
| SCIP notification number (Austria) | 9a7fc626-9466-4097-bccc-d0061e85242c |
| SCIP notification number (Belgium) | 8d3b39a2-e984-4c6e-911c-4f4b5bc6c914 |
| SCIP notification number (Bulgaria) | f98a02fc-be56-4703-b975-0734b9917cc7 |
| SCIP notification number (Czech Republic) | c813336d-3fe5-4e2f-8040-5b35c862642b |
| SCIP notification number (Denmark) | cfbab42c-baa0-42e4-9c12-52cabe7d8715 |
| SCIP notification number (Finland) | 9534f08c-a758-406f-94b0-34d9b78b36bc |
| SCIP notification number (France) | 438dbd41-68dd-48bc-b5a3-096fcaa6eed8 |
| SCIP notification number (Germany) | f2cb3156-167b-4c4d-adc9-cc8fe631edfa |
| SCIP notification number (Hungary) | 3cb68cfc-8159-427e-bdc5-bbb243576637 |
| SCIP notification number (Italy) | 5d8dc082-ff4e-4179-8406-92bdee159053 |
| SCIP notification number (Netherlands) | d7f90666-ae3a-4c0e-8f17-9e57bc890693 |
| SCIP notification number (Poland) | 92e9e438-d002-4f60-aa50-dd05f0f5d528 |
| SCIP notification number (Romania) | 17ff95e8-9d34-4a4e-9321-18f0c6483e04 |
| SCIP notification number (Sweden) | 7cda85a0-194b-4391-a77a-b7a4f73ac9b9 |
