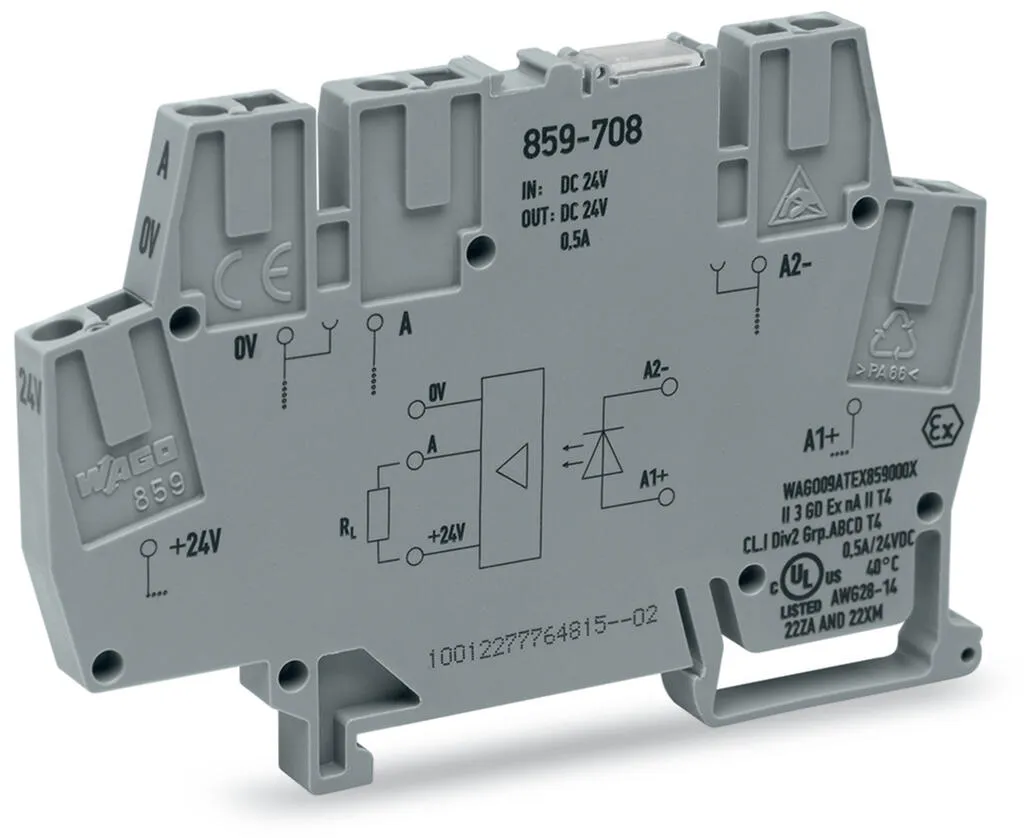

Wago 859-708
Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 15 … 30 VDC; Limiting continuous current: 1 A; 3-wire connection/low-side switching; Frequency 15 kHz; Red status indicator; Mo…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 15 … 30 VDC; Limiting continuous current: 1 A; 3-wire connection/low-side switching; Frequency 15 kHz; Red status indicator; Module width: 6 mm; gray 859-708
Specification
Notes
| Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. |
|---|
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 24 VDC |
|---|---|
| Input voltage range | 22 … 30 VDC |
| Input voltage range (low level) | 0 … 10 VDC |
| Input voltage range (high level) | 22 … 30 VDC |
| Nominal input current at U<sub>N</sub> | 9 mA |
| Input current range | 5.5 … 10.7 mA |
Technical data - Load circuit
| Circuit type | 3-wire connection, Low-side switching |
|---|---|
| Limiting continuous current | 1 A |
| Peak output current | 4 A |
| Nominal output voltage | 24 VDC |
| Output voltage range | 15 … 30 VDC |
| Voltage drop | ≤ 1.4 VDC |
| Leakage current at rated voltage | ≤ 5 µA |
| Turn-on time | ≤ 7 µs |
| Turn-off time | ≤ 14 µs |
| Rise time (t<sub>10-90</sub>) | 3 µs |
| Drop-out time (t<sub>90-10</sub>) | 3 µs |
| Switching frequency | ≤ 15 kHz |
Technical data - Signaling
| Status indicator | Red LED |
|---|
Safety and protection
| Rated voltage | 300 V |
|---|---|
| Overvoltage category | II |
| Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1 min) | 2.5 kVrms |
| Insulation type (control/load circuit) | Basic insulation |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
| Insulation type (to adjacent devices of different types) | Basic insulation |
| Protection type | IP20; in connected state or when using 859-525 end plate |
Connection data
| Connection technology | CAGE CLAMP® |
|---|---|
| Solid conductor | 0.2 … 2.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor | 0.14 … 2.5 mm² / 26 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.14 … 1.5 mm² / 26 … 16 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 91 mm / 3.583 inches |
| Depth from upper-edge of DIN-rail | 56 mm / 2.205 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Mounting position | horizontal (standing/lying); vertical |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Insulation material (main housing) | Polyamide (PA66) |
| Material group | I |
| Flammability class per UL94 | V0 |
| Fire load | 0.313 MJ |
| Weight | 145.4 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
|---|---|
| Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +40 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Processing temperature | -25 … +50 °C |
| Temperature range of connection cable | ≥ (Tambient + 20 K) |
| Relative humidity | 5 … 95 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Standards/specifications | EN 61010-2-201, EN 61000-6-2, EN 61000-6-3, EN 61373, UL 508 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Bag |
| Country of origin | DE |
| GTIN | 4066966423792 |
| Customs tariff number | 85365005000 |
Product Classification
| UNSPSC | 39121521 |
|---|---|
| eCl@ss 10.0 | 27-26-15-03 |
| eCl@ss 9.0 | 27-26-15-03 |
| ETIM 9.0 | EC001504 |
| ETIM 10.0 | EC001504 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 75980-60-8, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide, Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)- |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a), 7(c)-I |
| SCIP notification number (Austria) | f5d8c893-72b4-47d3-bfb8-25286d16375d |
| SCIP notification number (Belgium) | e466a4e7-a5db-4a87-9eed-29db5f29edb6 |
| SCIP notification number (Bulgaria) | df74fea2-cd3a-4d23-abaf-f1eb6fb122b7 |
| SCIP notification number (Czech Republic) | 0813c877-68d9-44eb-be8d-9e925d6b3ed2 |
| SCIP notification number (Denmark) | 9dda3256-8840-4bf0-aab3-24cb655a8970 |
| SCIP notification number (Finland) | aa125b3b-c76d-43ed-bc70-b9485beb7504 |
| SCIP notification number (France) | 9fc971a1-b627-43f6-aadd-2e7f56cf1d2e |
| SCIP notification number (Germany) | 3ad47a8b-2c64-4e0e-94e0-e2c39a9b12f0 |
| SCIP notification number (Hungary) | 48a3ceea-d41f-4664-a126-3a7915249ef1 |
| SCIP notification number (Italy) | de135a20-bffa-4b95-abdd-b7336ffdaa6f |
| SCIP notification number (Netherlands) | 36e278be-026c-4782-a24e-aa1a54eaef51 |
| SCIP notification number (Poland) | 34cff21e-d35f-4780-8f86-150ab828bb92 |
| SCIP notification number (Romania) | 17950ad7-e814-4615-98c6-c7158a2aa5a6 |
| SCIP notification number (Sweden) | 2e5d9a36-de77-4c49-be5e-35148f1c8202 |
