Wago 857-986

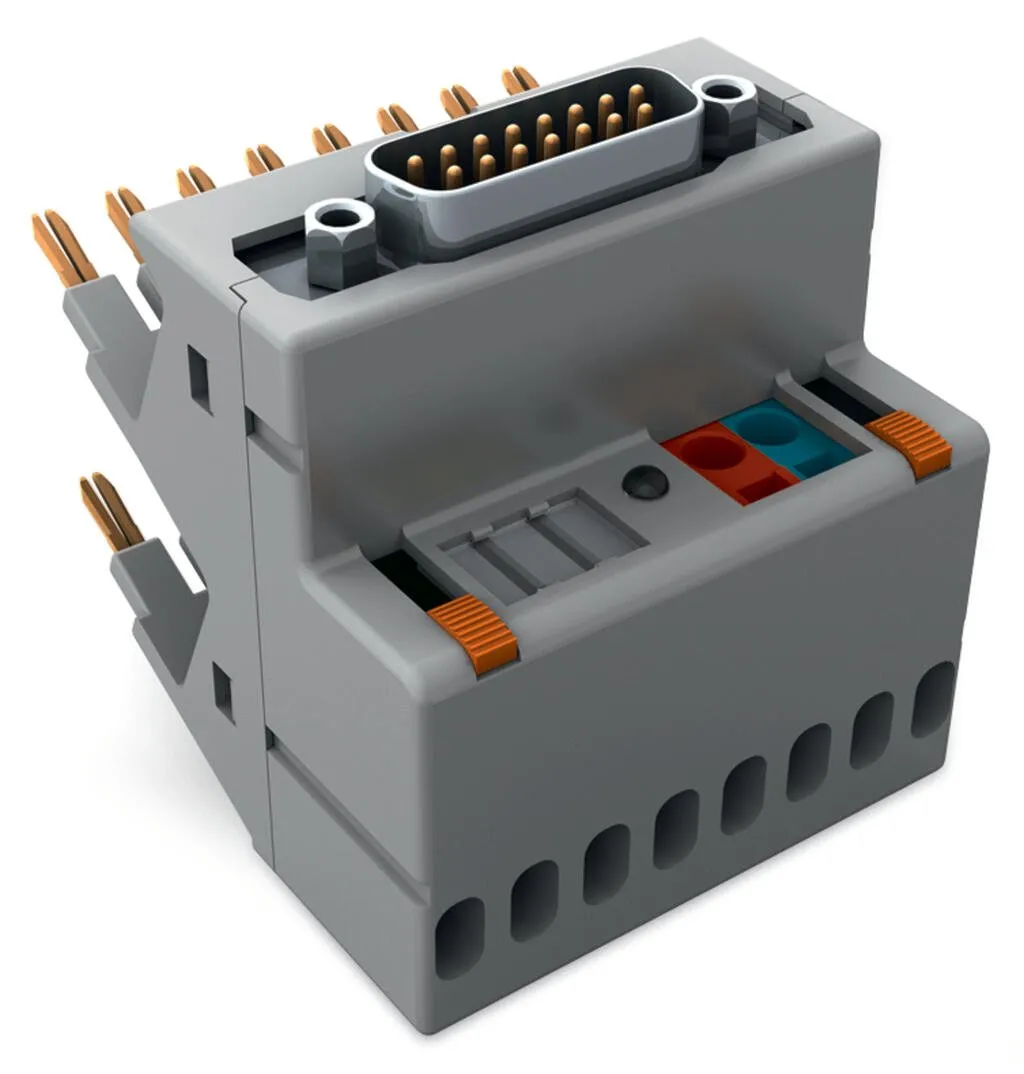

Interface adapter; 15-pole; High-side switching input 857-986
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Interface adapter; 15-pole; High-side switching input 857-986
Specification
Notes
| Note | The specified technical data are maximum values. They may be limited by the accessories used. |
|---|
Electrical data
| Inputs/outputs | 8-channel digital input |
|---|---|
| Circuit type | High-side switching input |
| Nominal operating voltage | 24 VDC |
| Operating voltage range | ±30 % |
| Total current | 3 A |
| Limiting continuous current | 1 A |
| Contact resistance | ≤ 10 mΩ |
| Status indicator | Green LED |
Safety and protection
| Dielectric strength (contact/contact) (AC, 1 min) | 0.5 kV<sub>eff</sub> |
|---|---|
| Protection type | IP20 |
Connection data
| Performance level | 2 |
|---|
Connection data - Connection 1

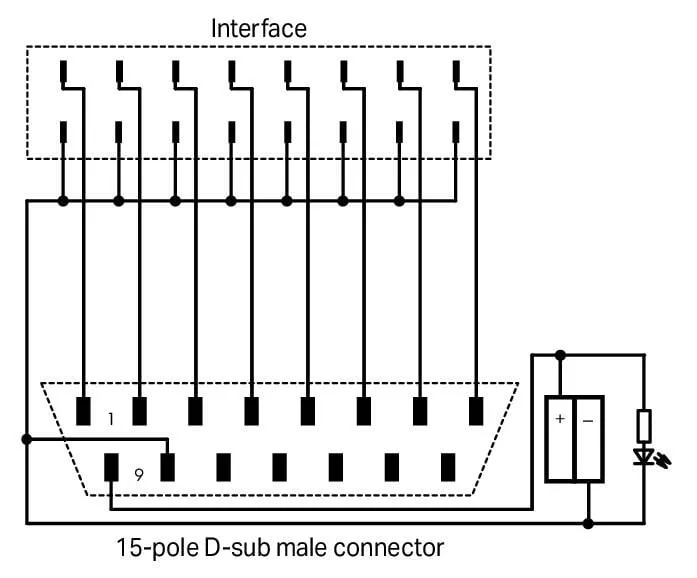

| Pluggable connector | D-subminiature male connector |
|---|---|
| Pole number 1 | 15 |
| Connection type | System |
Connection data - Connection 2
| Design | Plug for jumper slot |
|---|---|
| Pole number | 16 |
| Connection type | Field |
Connection data - Connection 3
| Pole number | 2 |
|---|---|
| Connection type | Power supply |
| Connection technology | CAGE CLAMP® |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Mechanical data
| Mounting type | Pluggable module |
|---|
Material data
| Insulation material (main housing) | Polyamide (PA66) |
|---|---|
| Flammability class per UL94 | V0 |
| Fire load | 0.649 MJ |
| Weight | 48.2 g |
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | 5 … 95 % (no condensation permissible) |
Standards and specifications
| Standards/specifications | DNV |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454995195 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 32101513 |
|---|---|
| eCl@ss 10.0 | 19-17-90-01 |
| eCl@ss 9.0 | 19-17-90-01 |
| ETIM 9.0 | EC002780 |
| ETIM 10.0 | EC002780 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 25550-51-0 |
|---|---|
| REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 663a877b-9b76-4542-b096-037e10f0c686 |
| SCIP notification number (Belgium) | e39bb783-c3c7-4add-ad69-ed6ddf9c5787 |
| SCIP notification number (Bulgaria) | 6668660b-10ae-4fcf-854c-ecc59edb7a93 |
| SCIP notification number (Czech Republic) | 17ee4a58-9c2e-4086-a7d0-9a9bb22b59d8 |
| SCIP notification number (Denmark) | f76607d9-7779-4788-9834-14f3a8f6c59b |
| SCIP notification number (Finland) | 9842c522-8ea6-42d0-a43e-2784c076f96c |
| SCIP notification number (France) | 0ba05f8d-e89c-4ae2-b7b6-bcf5599d8202 |
| SCIP notification number (Germany) | 8c611a44-c947-433a-87c6-f590ad4b8427 |
| SCIP notification number (Hungary) | 175a2d46-fb90-42d0-a0a0-525f6cb8e1ed |
| SCIP notification number (Italy) | 8bb27a39-7bcc-42c0-b9c3-e8bca4ee0f41 |
| SCIP notification number (Netherlands) | 3c5cd1d0-d150-47f4-b493-90ac68e8c0d2 |
| SCIP notification number (Poland) | 6e75cc26-14b8-4fa0-8d72-f59d099d1d8b |
| SCIP notification number (Romania) | 53cf1466-9fde-4591-a8e8-856e02b7a0dd |
| SCIP notification number (Sweden) | c24c0314-367e-4829-a493-4ebea9cb60f0 |
