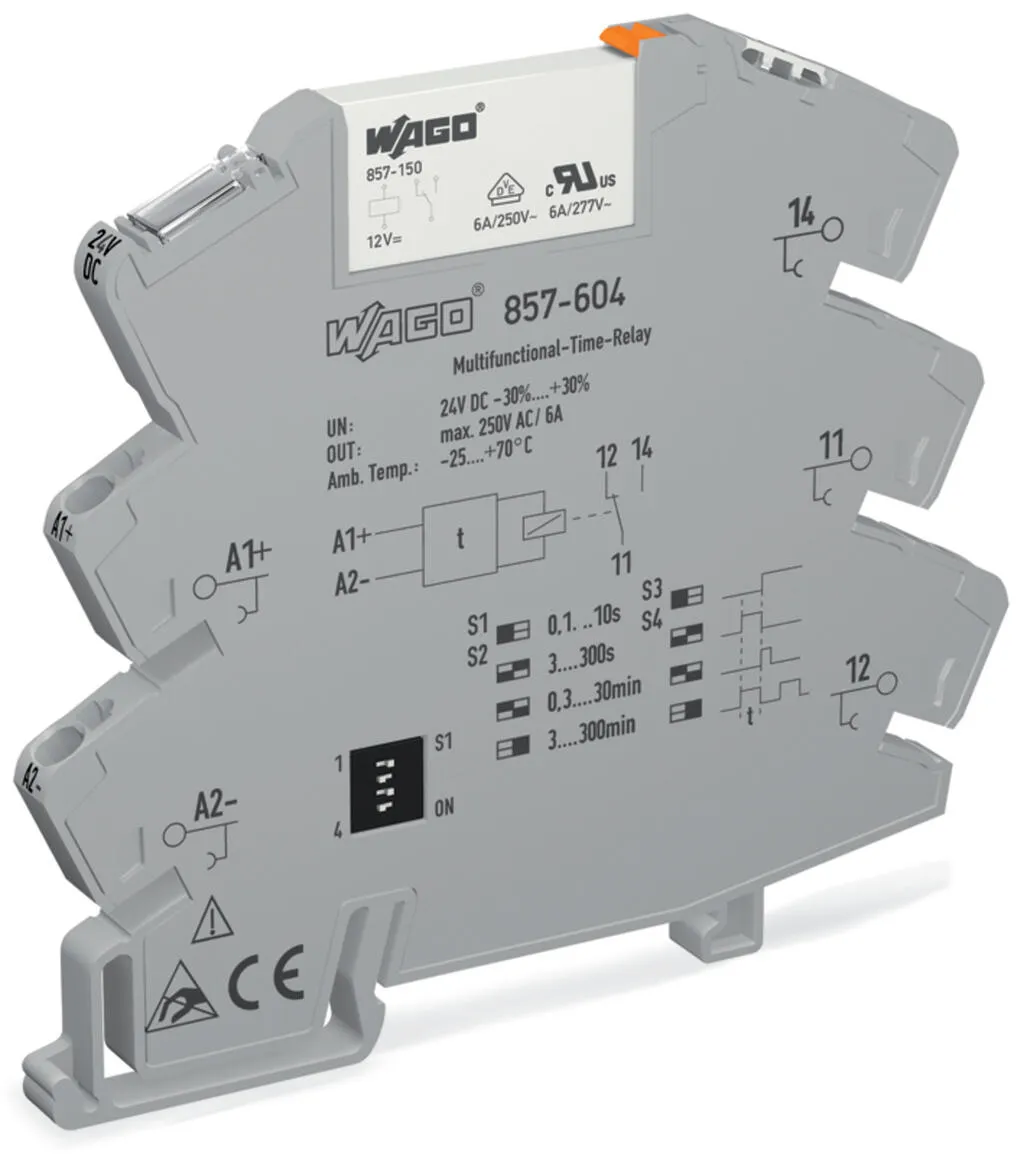

Wago 857-604
Features:4 functionsFunction and time range adjustable via DIP switchPotentiometer for fine adjustment of the time intervals
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Features:4 functionsFunction and time range adjustable via DIP switchPotentiometer for fine adjustment of the time intervals
Specification
Notes
| Safety Information | Adjacent devices of the same type are devices of the same design (series) that are arranged next to one another on the DIN-rail with the same orientation. An end stop (249-116) must be fitted to devices of other types for compliance with the reinforced insulation requirements. |
|---|
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 24 VDC (SELV) |
|---|---|
| Input voltage range | ±30 % |
| Nominal input current at U<sub>N</sub> | 18 mA |
| Time range | 0.1 … 10 s, 3 … 300 s, 0.3 … 30 min, 3 … 300 min |
| Reset time | 50 ms |
| Repeat accuracy | 1 % |
| Minimum pulse length (control input) | 10 ms |
| Functions | On-delay, Single-shot leading edge, On-delay and single-shot leading edge (1 s fixed), Flashing |
Technical data - Load circuit
| Number of changeover/switchover contacts | 1 |
|---|---|
| Contact material (relay) | AgSnO2 |

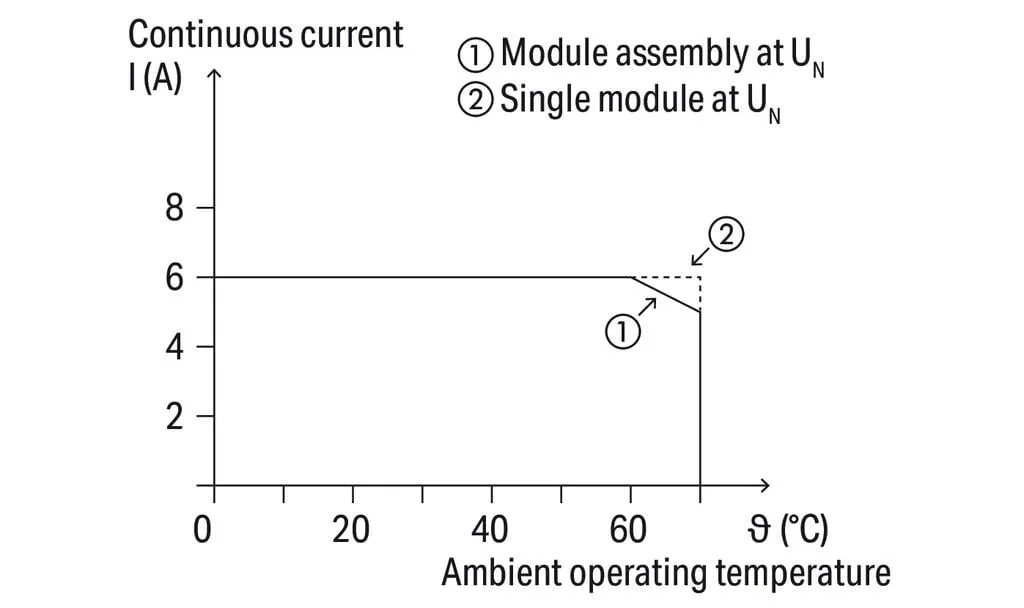

| Limiting continuous current | 6 A |
| Inrush current (resistive) max. | (AC) 20 A / 0.02 s |
| Switching Voltage, Max. | 250 VAC |

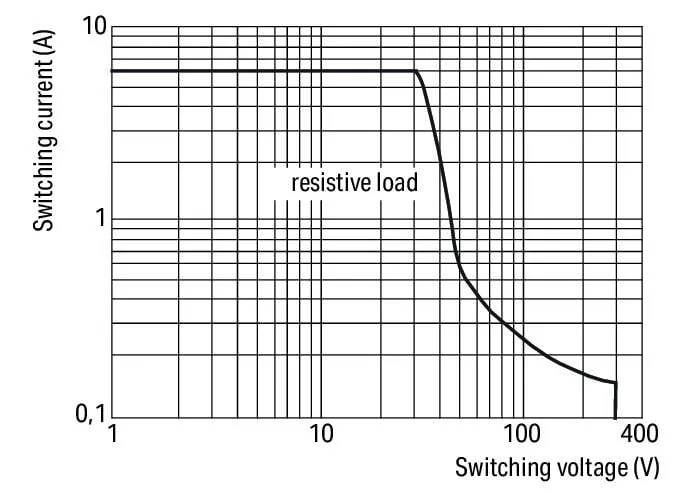

| Switching power (resistive) max. | AC 1500 VA; DC (see load limit curve) |
