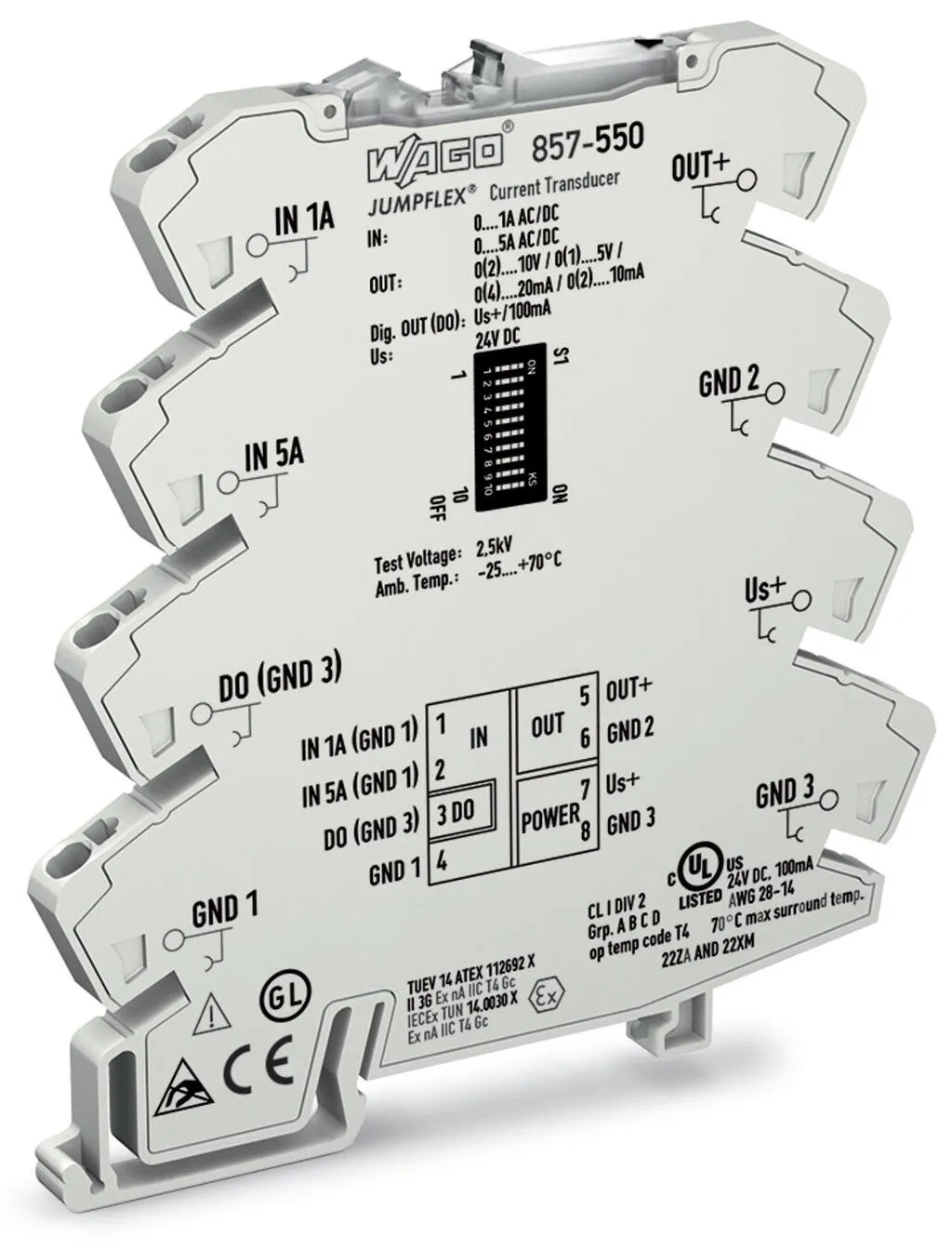

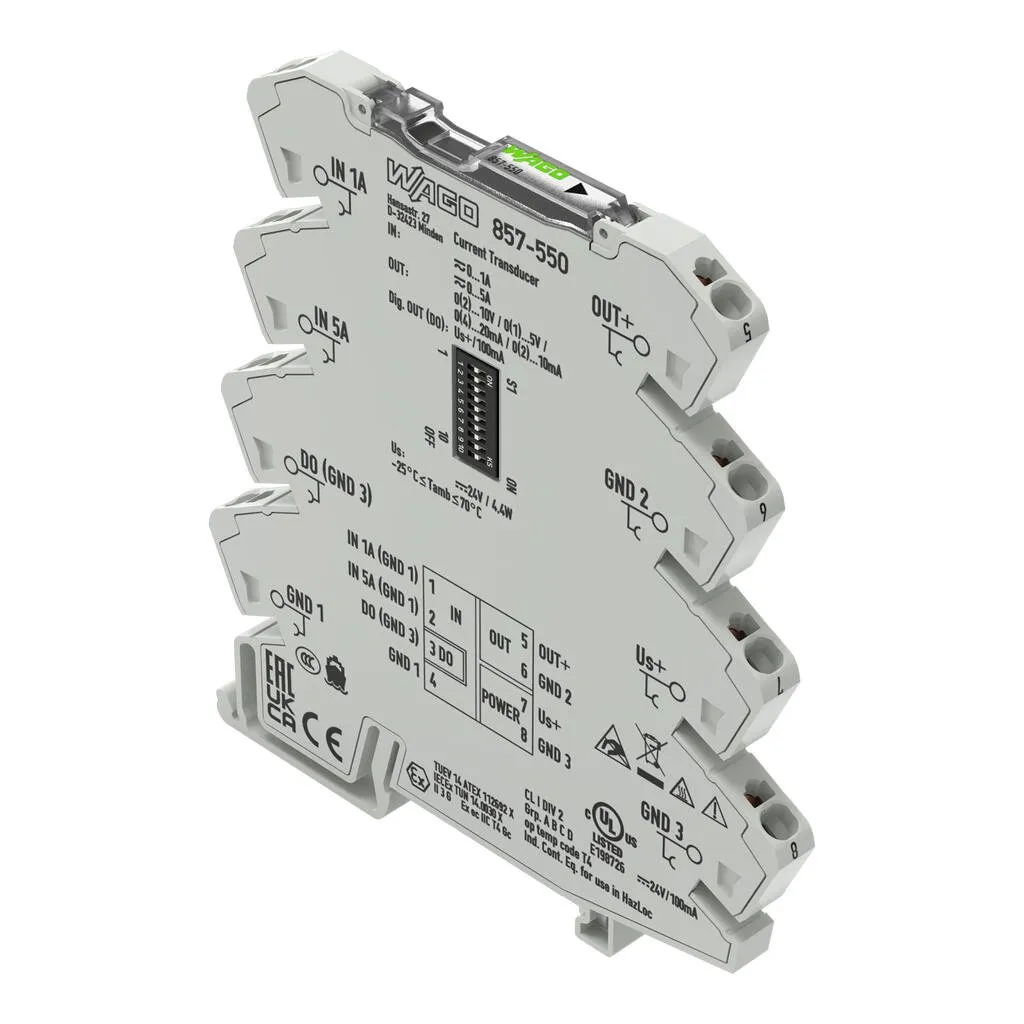

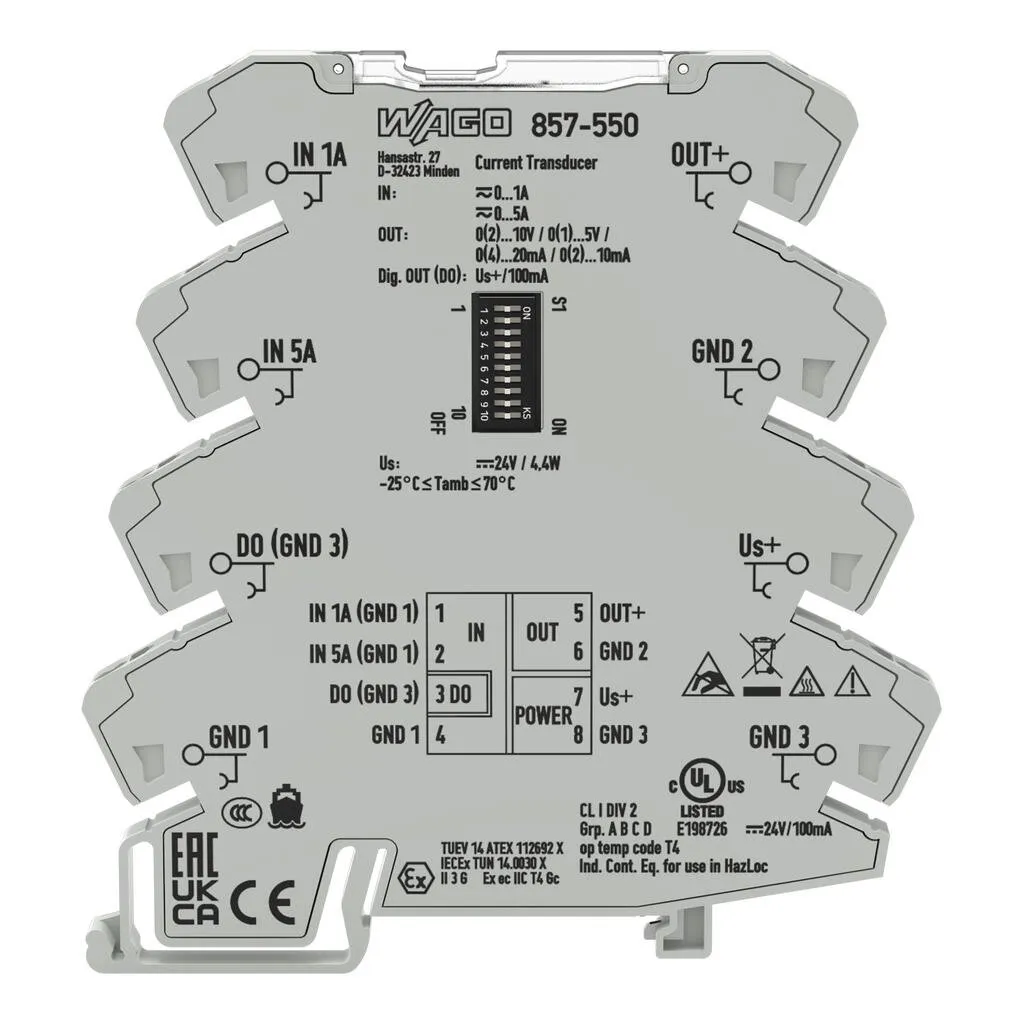

Wago 857-550
Short description:This current signal conditioner measures both 0–1 A and 0–5 A AC/DC currents, converting the input signal to an standard analog signal at the output.Digital switching output (DO):The…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:This current signal conditioner measures both 0–1 A and 0–5 A AC/DC currents, converting the input signal to an standard analog signal at the output.Digital switching output (DO):The digital switching output (DO) allows signaling of a message. Two switching behaviors can be selected for the edge:GND switching: For all values below the lower threshold or above the upper threshold, the digital output switches to “GND.”Us switching: For all values below the lower threshold or above the upper threshold, the digital output (DO) matches the supply voltage level. The preset switching thresholds are 0% and 100% of the input measurement range. These thresholds can be adjusted via the PC configuration interface. The switching threshold hysteresis is 5 mA. Features:PC configuration interfaceTrue RMS measurement or arithmetic mean valueDigital switching output (configurable switching thresholds)Switchable filter functionCalibrated measurement range switching3-way electrical isolation with 2.5 kV test voltageExtremely fast response timesMeasurement range overflow indication
Specification
Notes
| Safety Information | Input and output must be safely isolated from any hazardous live parts! |
|---|---|
| Note | Additional setting options via the WAGO Interface Configuration Software, Use shielded signal cables!Only use shielded signal cables for analog output signals.This ensures the device maintains its specified accuracy and immunity to interference, even when external disturbances affect the signal cable. |
Technical data - Configuration

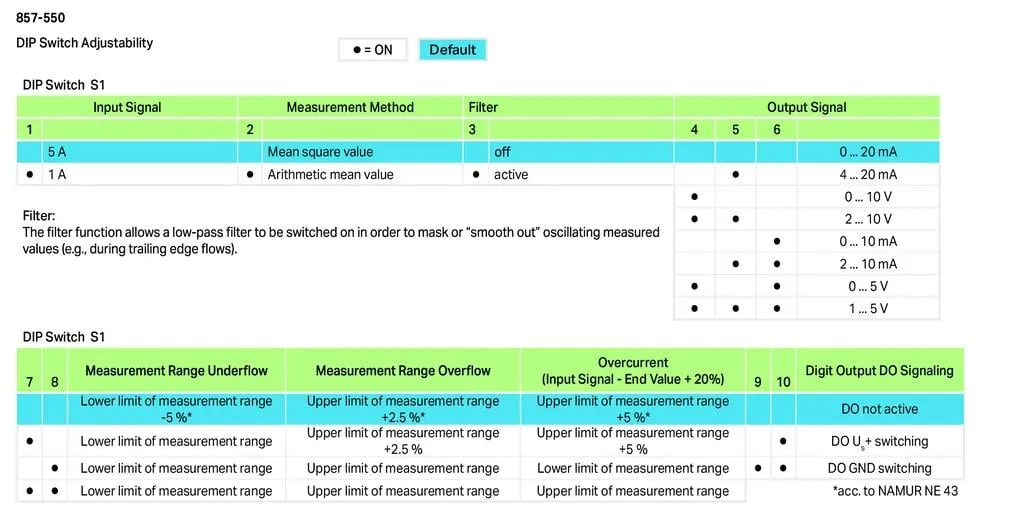

| Configuration options | DIP switch, WAGO Interface Configuration Software |
|---|
Technical data - Input
| Input signal type | Current |
|---|---|
| Input signal (current) | 0 … 1 A AC/DC (IN 1), 0 … 5 A AC/DC (IN 2) |
| Frequency range | 16 … 400 Hz |
| Input resistance (current input) | 47 mΩ (IN 1), 10 mΩ (IN 2) |
| Input current (max.) | 10 A (IN 1; 5 s); 15 A (IN 2; 5 s) |
| Response threshold | 2 mA (IN 1); 4 mA (IN 2) |
Technical data - Output (analog)
| Output signal type | Current, Voltage |
|---|---|
| Output signal (voltage) | 0 … 5 V, 1 … 5 V, 0 … 10 V, 2 … 10 V |
| Output signal (current) | 0 … 10 mA, 2 … 10 mA, 0 … 20 mA, 4 … 20 mA |
| Load impedance (voltage output) | ≥ 2 kΩ (Temperature range restrictions may occur.) |
| Load impedance (current output) | ≤ 600 Ω Temperature range restrictions may occur. |
Technical data - Output (digital)
| Switching voltage (DO) max. | Supply voltage applied |
|---|---|
| Continuous current (DO) max. | 100 mA (no internal restriction) |
| Number of switching thresholds (DO) | 1 (adjustable) |
Technical data - Signal processing
| Measurement method | True RMS measurement; Arithmetic mean value |
|---|---|
| Software filter (adjustable) | Moving average value (filter level: 30) |
| Step response (typ.) | 60 ms |
Technical data - Measurement error
| Transmission error (typ.) | ≤ 0.1 % of upper-range value |
|---|---|
| Transmission error (max.) | ≤ 0.4 % of upper-range value |
| Temperature coefficient | ≤ 0.01 %/K |
Technical data - Power supply
| Power supply type | 24 VDC (SELV) |
|---|---|
| Nominal supply voltage U<sub>S</sub> | 24 VDC |
| Supply voltage range | ±30 % |
| Current consumption at nominal supply voltage | ≤ 40 mA (+ IDO) |
Safety and protection
| Rated voltage | 300 V |
|---|---|
| Protection type | IP20 |
Safety and protection - Test voltage
| Test voltage (input/output/supply) | 2.5 kVAC; 50 Hz; 1 min |
|---|
Safety and protection - Insulation coordination
| Overvoltage category | II |
|---|---|
| Pollution degree | 2 |
| Insulation type (input/analog output/supply) | Functional insulation |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
Connection data
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 94 mm / 3.701 inches |
| Depth from upper-edge of DIN-rail | 97.8 mm / 3.85 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Insulation material (main housing) | Polyamide (PA66) |
|---|---|
| Flammability class per UL94 | V0 |
| Fire load | 0.418 MJ |
| Weight | 64 g |
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C (At nominal current, in individual arrangement; -25 … +60 °C (block arrangement)) |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Processing temperature | -25 … +50 °C |
| Temperature range of connection cable | ≥ (Tambient + 25 K) |
| Relative humidity | 5 … 95 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Conformity marking | CE |
|---|---|
| EMC immunity to interference | EN 61000-6-2 |
| EMC emission of interference | EN 61000-6-3; EN 61000-6-4 |
| Standards/specifications | EN 50121-3-2, DNV, EN 61010-2-201 |
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | bag |
| Country of origin | DE |
| GTIN | 4050821226734 |
| Customs tariff number | 85437090300 |
Product Classification
| UNSPSC | 41113630 |
|---|---|
| eCl@ss 10.0 | 27-21-01-23 |
| eCl@ss 9.0 | 27-21-01-23 |
| ETIM 9.0 | EC002475 |
| ETIM 10.0 | EC002475 |
