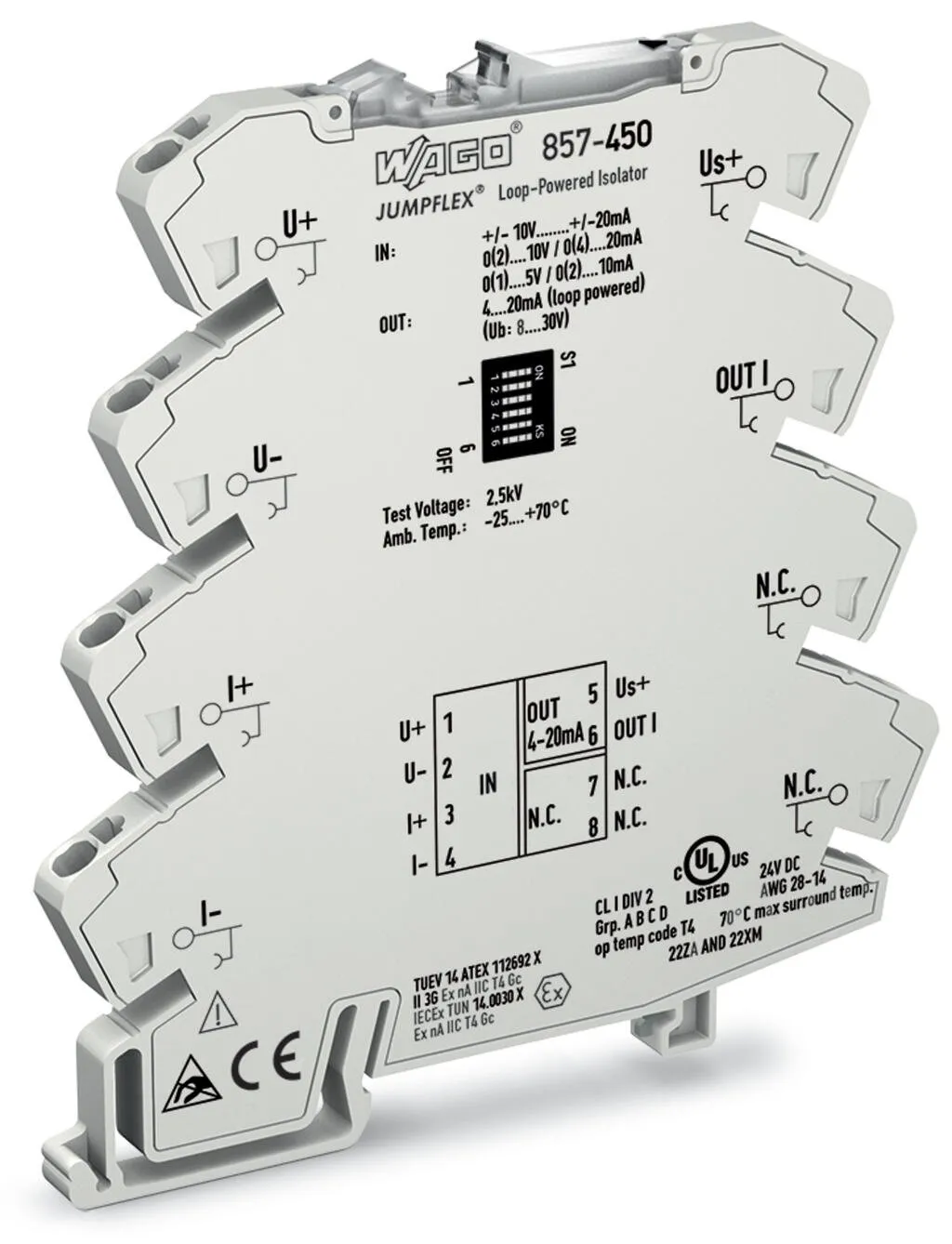

Wago 857-450
Short description:WAGO’s loop-powered isolator converts, amplifies, filters and electrically isolates standard unipolar/bipolar analog signals.Features:No additional supply voltage requiredZero/span a…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:WAGO’s loop-powered isolator converts, amplifies, filters and electrically isolates standard unipolar/bipolar analog signals.Features:No additional supply voltage requiredZero/span adjustmentStandard unipolar/bipolar analog signals at inputCalibrated measurement range switchingSwitchable limit frequency3-way electrical isolation with 2.5Â kV test voltage
Specification
Technical data - Configuration
| Configuration options | DIP switch |
|---|
Technical data - Input
| Input signal type | Voltage, Current |
|---|---|
| Input signal (voltage) | ±1 V, 0 … 1 V, ±2 V, 0 … 2 V, ±5 V, 0 … 5 V, 1 … 5 V, ±10 V, 0 … 10 V, 2 … 10 V, ±20 V, 0 … 20 V |
| Input signal (current) | ±5 mA, 0 … 5 mA, ±10 mA, 0 … 10 mA, 2 … 10 mA, ±20 mA, 0 … 20 mA, 4 … 20 mA |
| Input resistance (current input) | ≤ 50 Ω |
| Input resistance (voltage input) | ≥ 1 MΩ |
| Input current (max.) | 50 mA |
| Input voltage (max.) | 30 V |
| Zero/span adjustment | ±5 % of upper range value |
Technical data - Output (analog)
| Output signal type | Current |
|---|---|
| Output signal (current) | 4 … 20 mA |
| Load impedance (current output) | ≤ 600 Ω |
Technical data - Signal processing

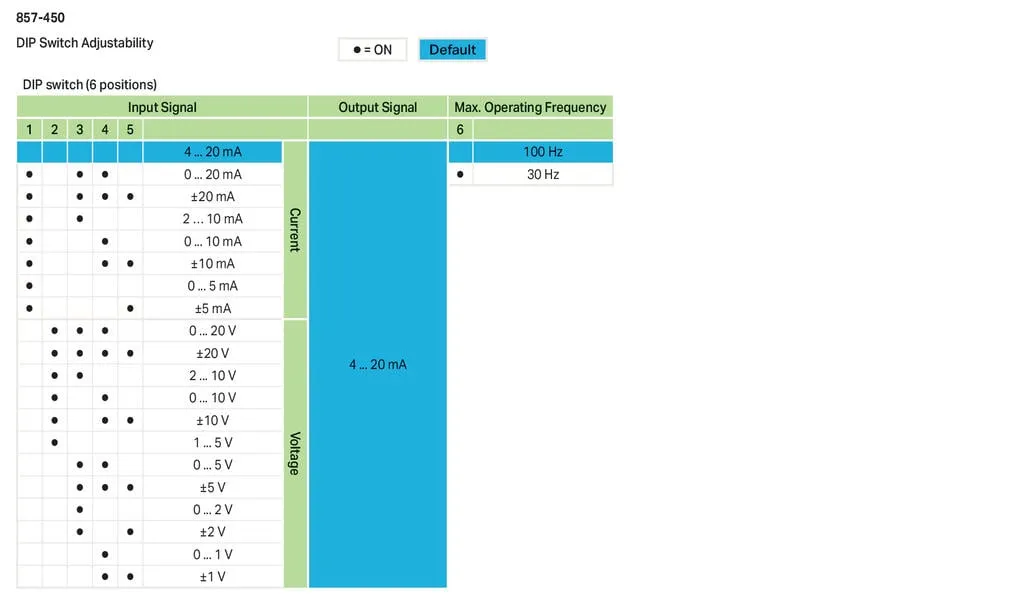

| Limit frequency | 100 Hz / 30 Hz (configurable via DIP switch) |
|---|---|
| Step response (typ.) | 3.5 ms |
Technical data - Measurement error
| Transmission error (typ.) | ≤ 0.1 % of upper-range value |
|---|---|
| Temperature coefficient | ≤ 0.01 %/K |
Technical data - Power supply
| Power supply type | Loop-powered (via output) |
|---|---|
| Supply voltage | 8 … 30 VDC (Power is derived from the output circuit.) |
Safety and protection
| Protection type | IP20 |
|---|
Safety and protection - Test voltage
| Test voltage (input/output/supply) | 2.5 kVAC; 50 Hz; 1 min |
|---|
Connection data
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 94 mm / 3.701 inches |
| Depth from upper-edge of DIN-rail | 97.8 mm / 3.85 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Insulation material (main housing) | Polyamide (PA66) |
|---|---|
| Flammability class per UL94 | V0 |
| Fire load | 0.363 MJ |
| Weight | 37.9 g |
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | 5 … 95 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Conformity marking | CE |
|---|---|
| EMC immunity to interference | EN 61000-6-2 |
| EMC emission of interference | EN 61000-6-3 |
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | bag |
| Country of origin | DE |
| GTIN | 4045454828479 |
| Customs tariff number | 85437090300 |
Product Classification
| UNSPSC | 39121008 |
|---|---|
| eCl@ss 10.0 | 27-21-01-20 |
| eCl@ss 9.0 | 27-21-01-20 |
| ETIM 9.0 | EC002653 |
| ETIM 10.0 | EC002653 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | e16f64f5-6ced-40e1-83dc-3485ebbaa281 |
