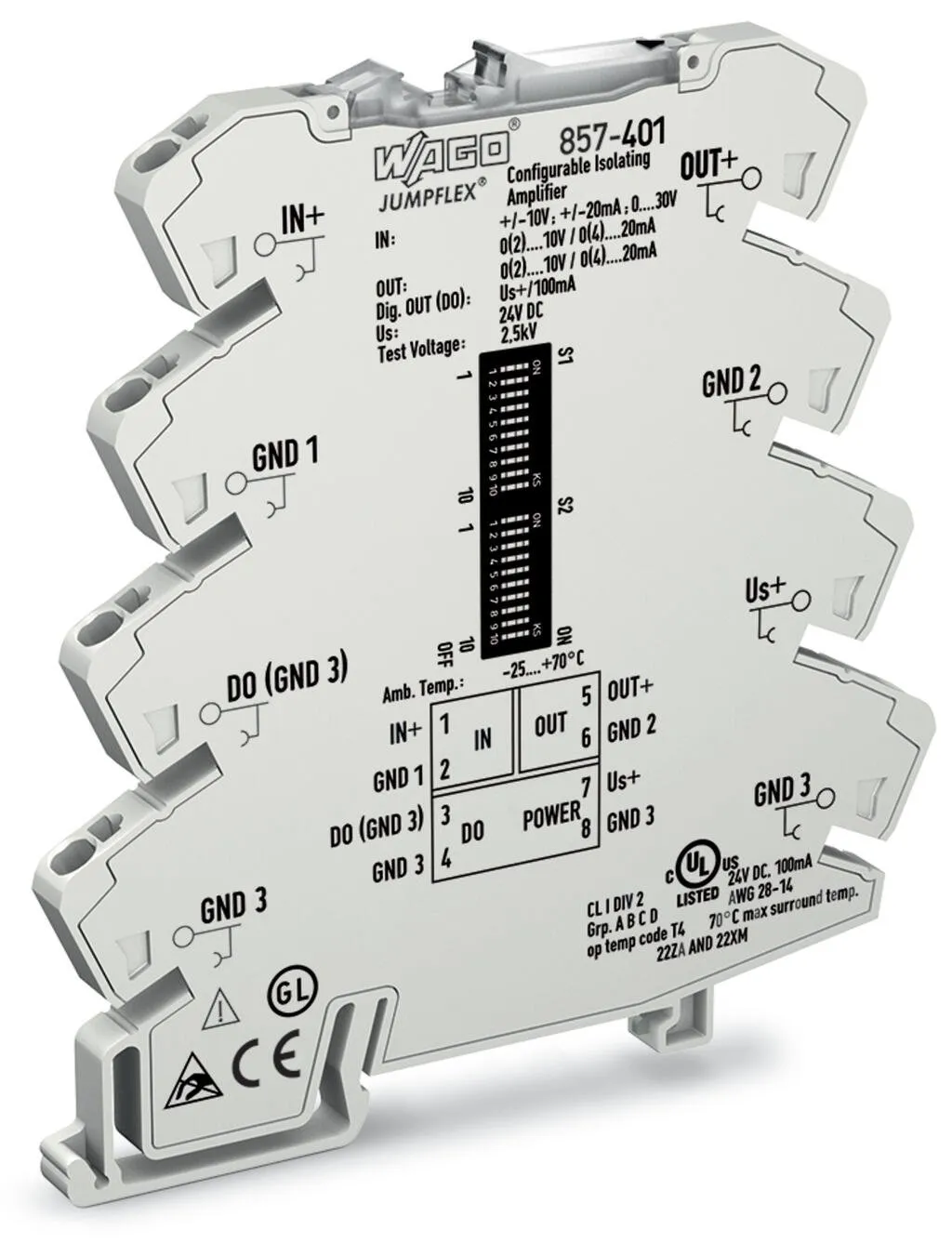

Wago 857-401
Short description:This configurable signal conditioner converts, amplifies, filters and electrically isolates standard analog signals.Digital switching output (DO):The digital switching output (DO) al…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:This configurable signal conditioner converts, amplifies, filters and electrically isolates standard analog signals.Digital switching output (DO):The digital switching output (DO) allows signaling of a message. Two switching behaviors can be selected for the edge:GND switching: For all values below the lower threshold or above the upper threshold, the digital output switches to “GND.”Us switching: For all values below the lower threshold or above the upper threshold, the digital output (DO) matches the supply voltage level. The preset switching thresholds are 0% and 100% of the input measurement range. These thresholds can be adjusted via the PC configuration interface. The switching threshold hysteresis is 5 mV/5 µA. Features:PC configuration interfaceCalibrated measurement range switchingAnalog unipolar and bipolar standard signals at the inputClipping capabilityfor analog signal limitation to output end values3-way electrical isolation with 2.5 kV test voltage
Specification
Notes
| Safety Information | Input and output must be safely isolated from any hazardous live parts! |
|---|---|
| Note | Additional setting options via the WAGO Interface Configuration Software, Terminals 4 (GND 3) and 8 (GND 3) are internally bridged. Current carrying capacity between terminals 4 and 8: max: 1 A |
Technical data - Configuration

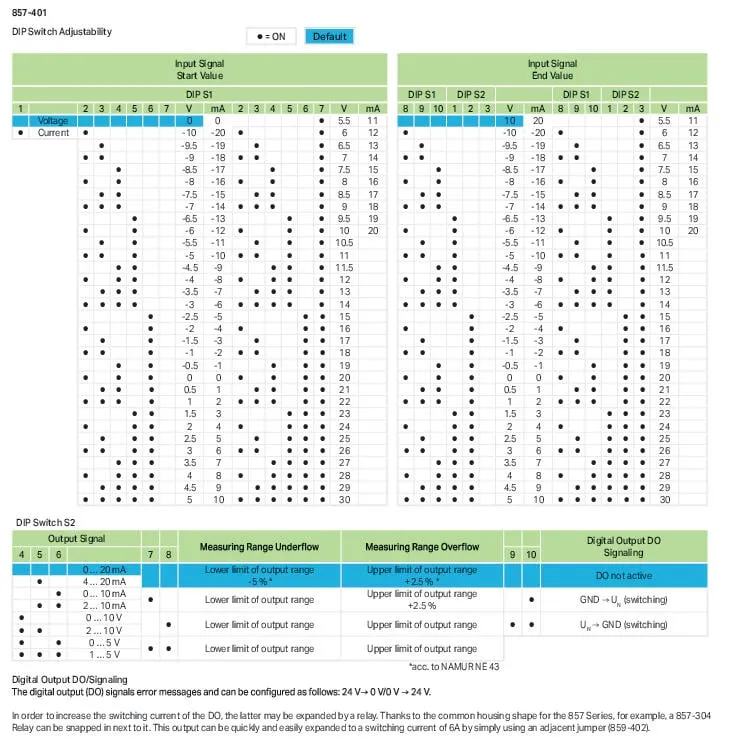

| Configuration options | DIP switch, WAGO Interface Configuration Software |
|---|
Technical data - Input
| Input signal type | Voltage (DC), Current (DC), Voltage, Current |
|---|---|
| Input signal (voltage) | ±10 V, 0 … 30 V |
| Input signal (current) | ±20 mA |
| Input resistance (current input) | ≤ 200 Ω |
| Input resistance (voltage input) | ≥ 100 kΩ |
| Input current (max.) | 22 mA |
| Input voltage (max.) | 31 V |
| Measurement span (min.) | 1 V |
| Measurement span (current) min. | 2 mA |
Technical data - Output (analog)
| Output signal type | Current, Voltage |
|---|---|
| Output signal (voltage) | 0 … 5 V, 1 … 5 V, 0 … 10 V, 2 … 10 V |
| Output signal (current) | 0 … 10 mA, 2 … 10 mA, 0 … 20 mA, 4 … 20 mA |
| Load impedance (voltage output) | ≥ 2 kΩ |
| Load impedance (current output) | ≤ 550 Ω |
Technical data - Output (digital)
| Switching voltage (DO) max. | Supply voltage applied |
|---|---|
| Continuous current (DO) max. | 100 mA (no internal restriction) |
| Number of switching thresholds (DO) | 2 (adjustable) |
Technical data - Signal processing
| Step response (typ.) | 8 ms |
|---|
Technical data - Measurement error
| Transmission error (typ.) | ≤ 0.1 % of upper-range value |
|---|---|
| Temperature coefficient | ≤ 0.01 %/K |
Technical data - Power supply
| Power supply type | 24 VDC (SELV) |
|---|---|
| Nominal supply voltage U<sub>S</sub> | 24 VDC |
| Supply voltage range | ±30 % |
| Current consumption at nominal supply voltage | ≤ 40 mA (+ IDO) |
Safety and protection
| Rated voltage | 300 V |
|---|---|
| Protection type | IP20 |
Safety and protection - Test voltage
| Test voltage (input/output/supply) | 2.5 kVAC; 50 Hz; 1 min |
|---|
Safety and protection - Insulation coordination
| Overvoltage category | II |
|---|---|
| Pollution degree | 2 |
| Insulation type (input/analog output/supply) | Functional insulation |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
Connection data
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 94 mm / 3.701 inches |
| Depth from upper-edge of DIN-rail | 97.8 mm / 3.85 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Insulation material (main housing) | Polyamide (PA66) |
|---|---|
| Flammability class per UL94 | V0 |
| Fire load | 0.418 MJ |
| Weight | 37 g |
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C (Individual arrangement; -25 … +60 °C (block arrangement)) |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Temperature range of connection cable | ≥ (Tambient + 10 K) |
| Relative humidity | 5 … 95 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Conformity marking | CE |
|---|---|
| EMC immunity to interference | EN 61000-6-2; EN 61326-1; EN 50121-3-2 |
| EMC emission of interference | EN 61326-1 |
| Standards/specifications | DNV, EN 50121-3-2, EN 61000-6-4, EN 61010-2-201, EN 61373 |
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | bag |
| Country of origin | DE |
| GTIN | 4045454828509 |
| Customs tariff number | 85437090300 |
Product Classification
| UNSPSC | 32101502 |
|---|---|
| eCl@ss 10.0 | 27-21-01-20 |
| eCl@ss 9.0 | 27-21-01-20 |
| ETIM 9.0 | EC002653 |
| ETIM 10.0 | EC002653 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 75980-60-8, 79-94-7, 80-05-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, 4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide, Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)- |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | aff0c6db-2e8d-40df-bb25-c0857553add0 |
| SCIP notification number (Belgium) | e213ff0d-2609-4996-8776-552c3940adb5 |
| SCIP notification number (Bulgaria) | fda52b6c-252d-4865-8b7b-006d61ae0362 |
| SCIP notification number (Czech Republic) | 9e6dc05b-8858-42d0-8506-d974c363c8eb |
| SCIP notification number (Denmark) | 9c7f385a-1237-4d96-b43d-39905b245808 |
| SCIP notification number (Finland) | 00ecaf4e-bf48-46a7-bd9f-4304f62b07de |
| SCIP notification number (France) | 84768d73-a171-4ad6-b0bf-c06e4790b135 |
| SCIP notification number (Germany) | ff05be1c-f993-4d8d-87f4-089b262c2e93 |
| SCIP notification number (Hungary) | b6abe888-47d6-44d8-beb7-2bb65ab6ef95 |
| SCIP notification number (Italy) | 38b69325-eb5e-4b88-aa3f-bf9c997c1044 |
| SCIP notification number (Netherlands) | 02d3ec9a-5098-4436-ac58-bc00c2e94d3a |
| SCIP notification number (Poland) | eb1f3c08-d52f-4472-9c0d-af6649be66e7 |
| SCIP notification number (Romania) | 009dc6d9-a76a-43d2-9b7b-afcfef2a2776 |
| SCIP notification number (Sweden) | 3d18b596-90fd-4b86-b283-23e0a76d6d35 |
