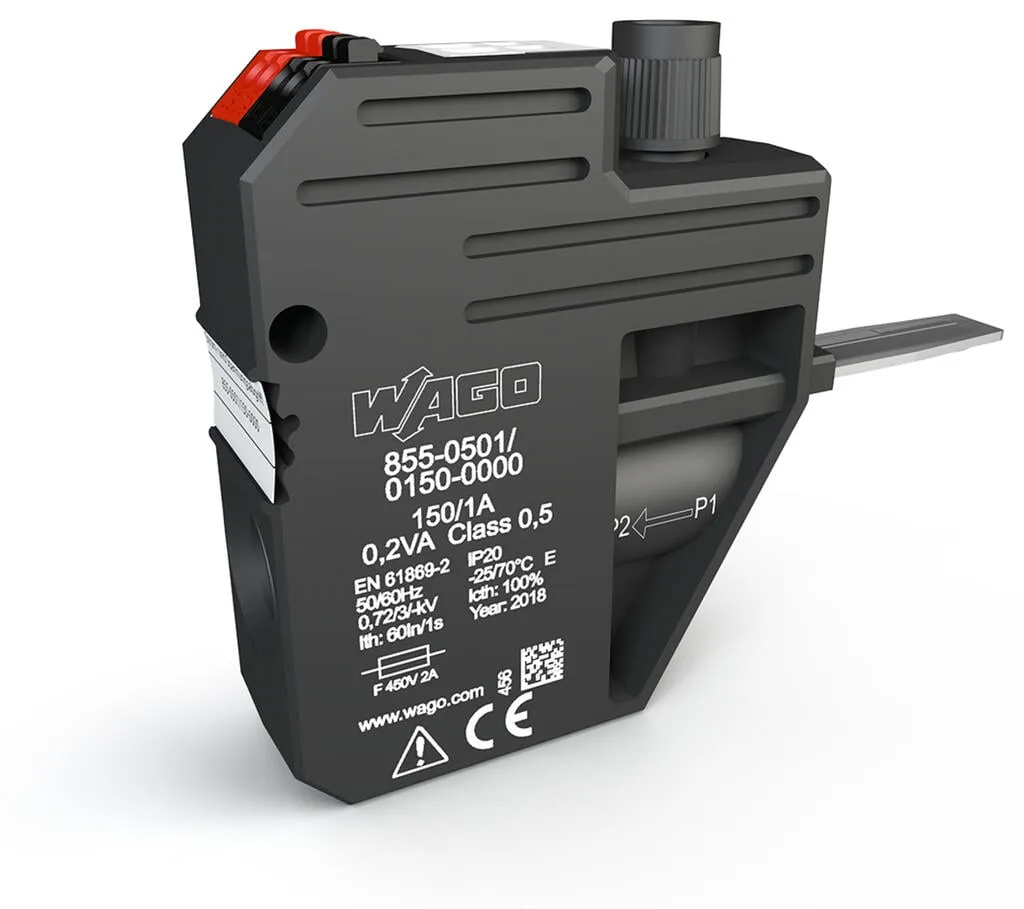

Wago 855-501/150-000

Short description:WAGO’s Current and Voltage Tap for 50 mm² (0/1 AWG) high-current through terminal blocks provides the ideal basis for successful energy management,because current and voltage are required wherever electrical power is measured. A combination of current transformer and voltage tap, this solution can be quickly and easily mounted into the jumper slot of WAGO’s 50 mm² (1/0 AWG) high-current through terminal block.An integrated fuse reliably protects downstream energy meters. An integrated current transformer (conversion ratio: 150 A/1 A) allows precise current measurement per EN 61869-2 (accuracy class: 0.5).The current output connectors are marked with S1 (black) and S2 (red). Both termination and removal of fine-stranded conductors is performed via push-buttons. The 4-pole configuration (2 x S1 and 2 x S2) provides the following advantages:- Current transformer (S1 and S2) can be short circuited via jumper (2000-402)- Direct ‘Y’ point jumper on current transformerThe voltage is connected using a redundant terminal block. Additionally, the current and voltage tap can be marked either using continuous marking strips or via WMB Multi Marking System.Features:Power data can be directly tapped into the power supplyEasy installation – simply insert the tap into the jumper slot of the 50 mm² (1/0 AWG) high-current through terminal blockIntegrated current transformer (150 A/1 A)Accuracy class: 0.5Fuse-protected voltage path
