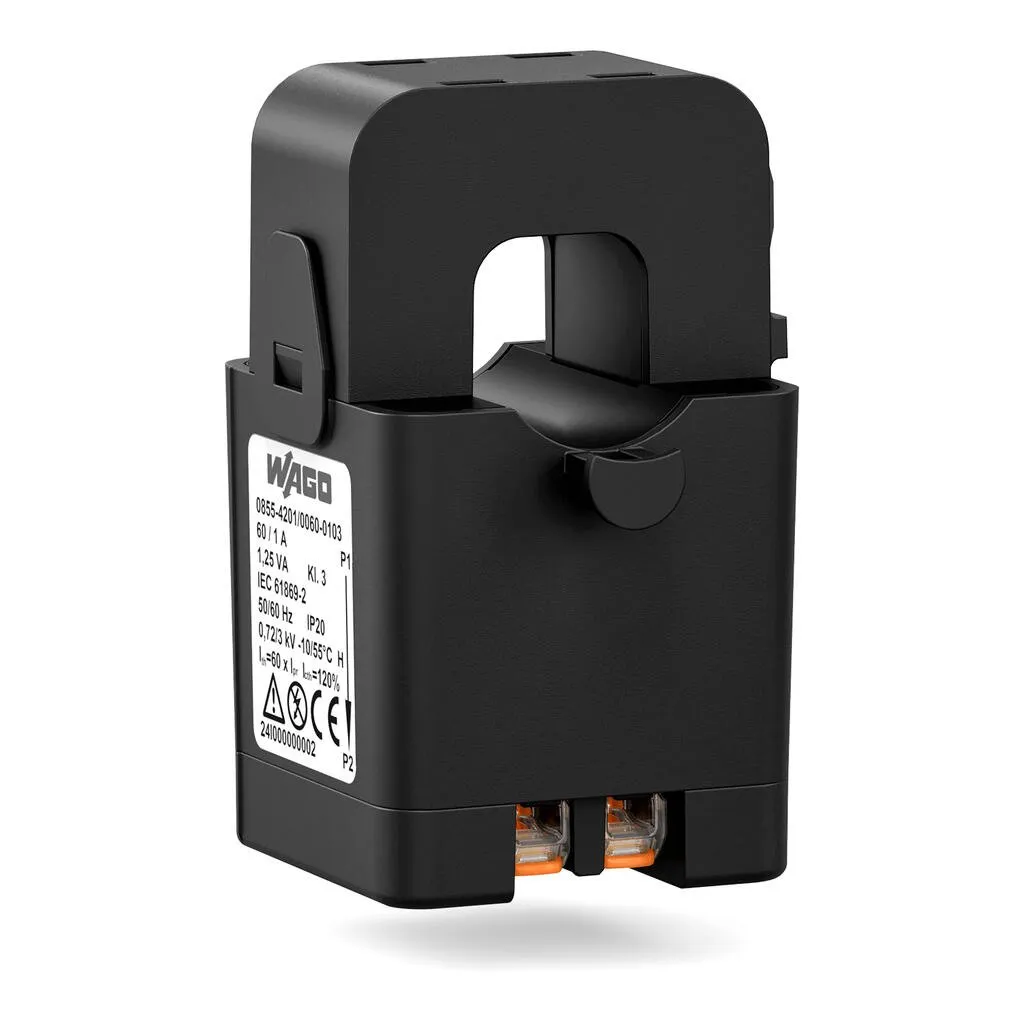

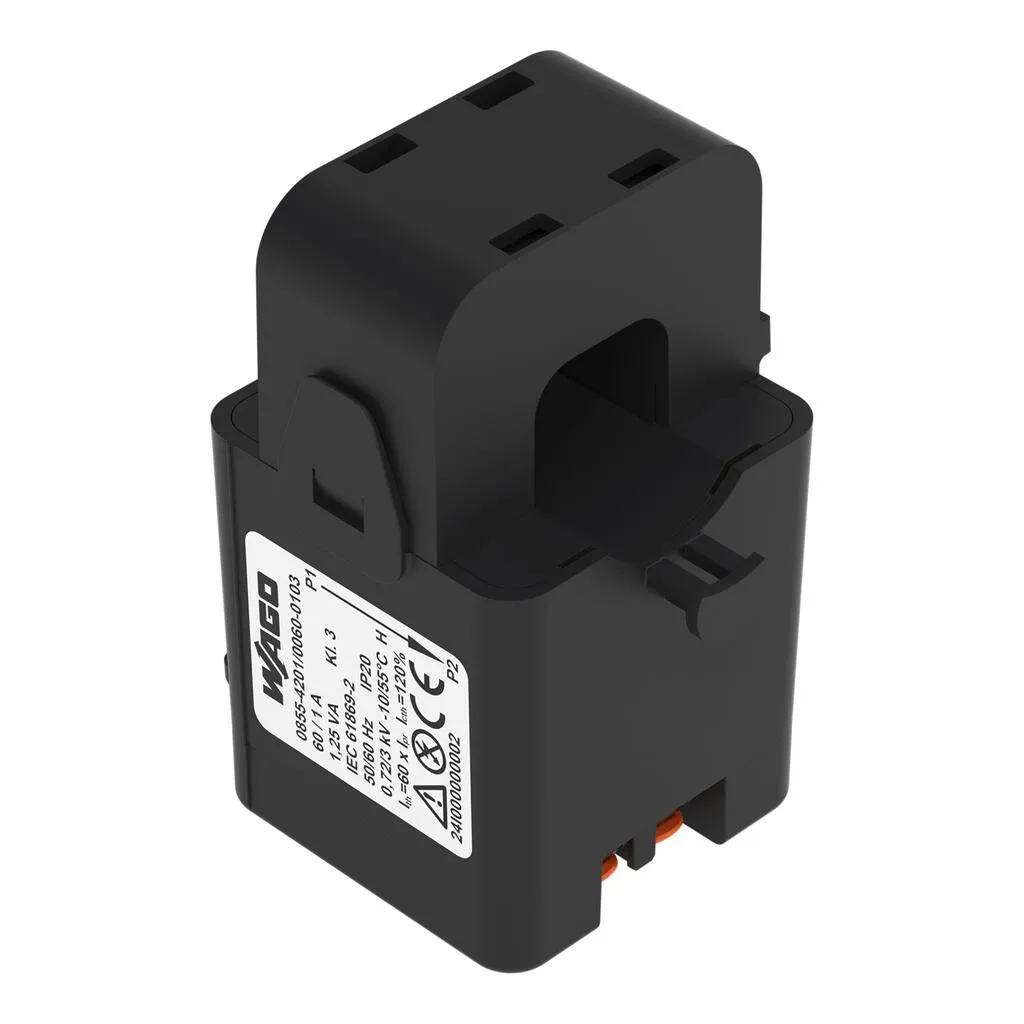

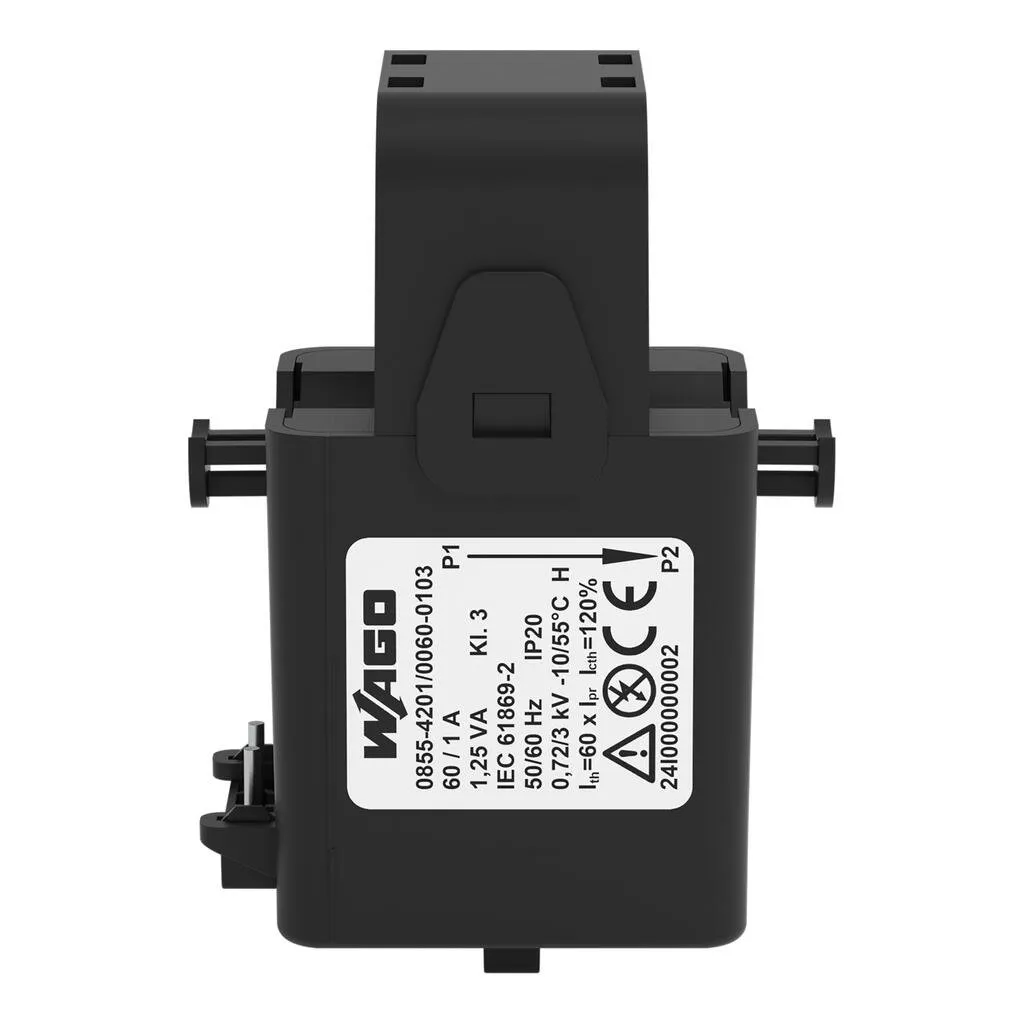

Wago 855-4201/060-103

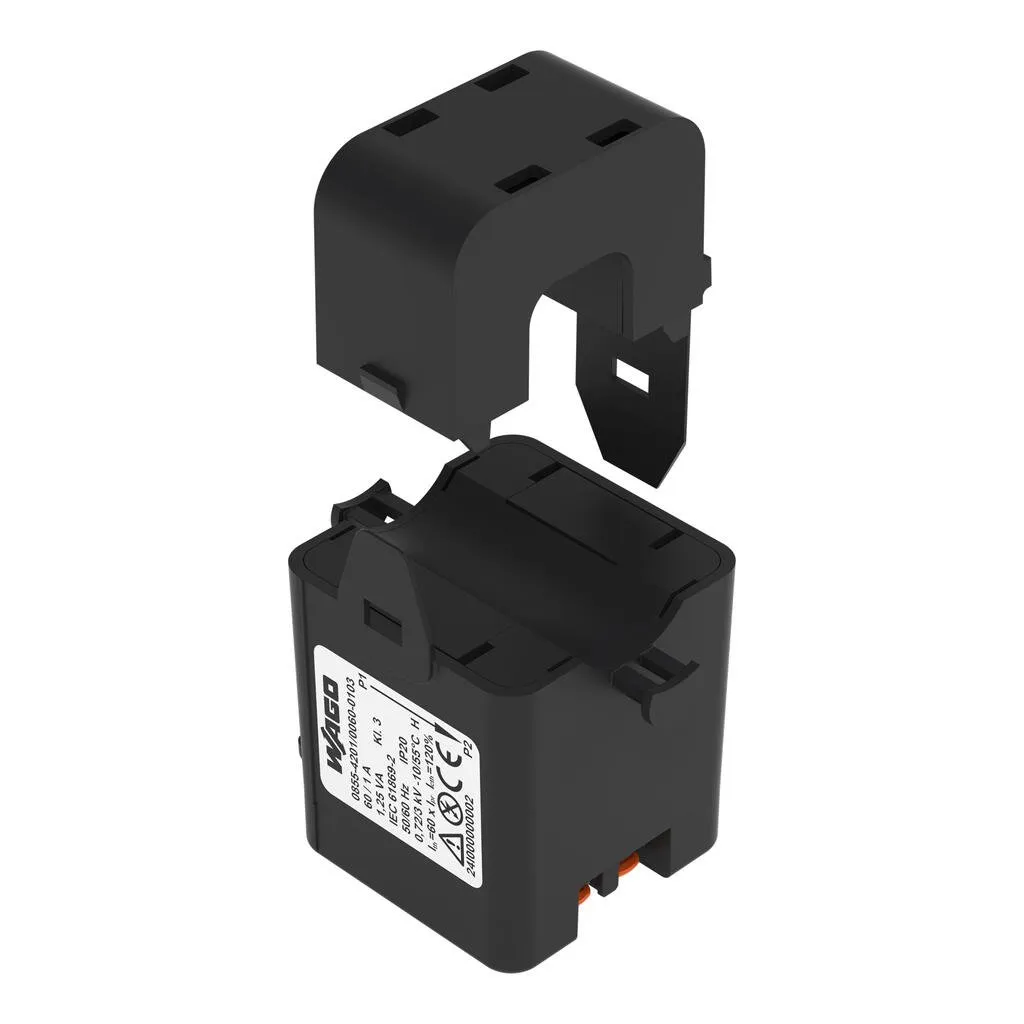

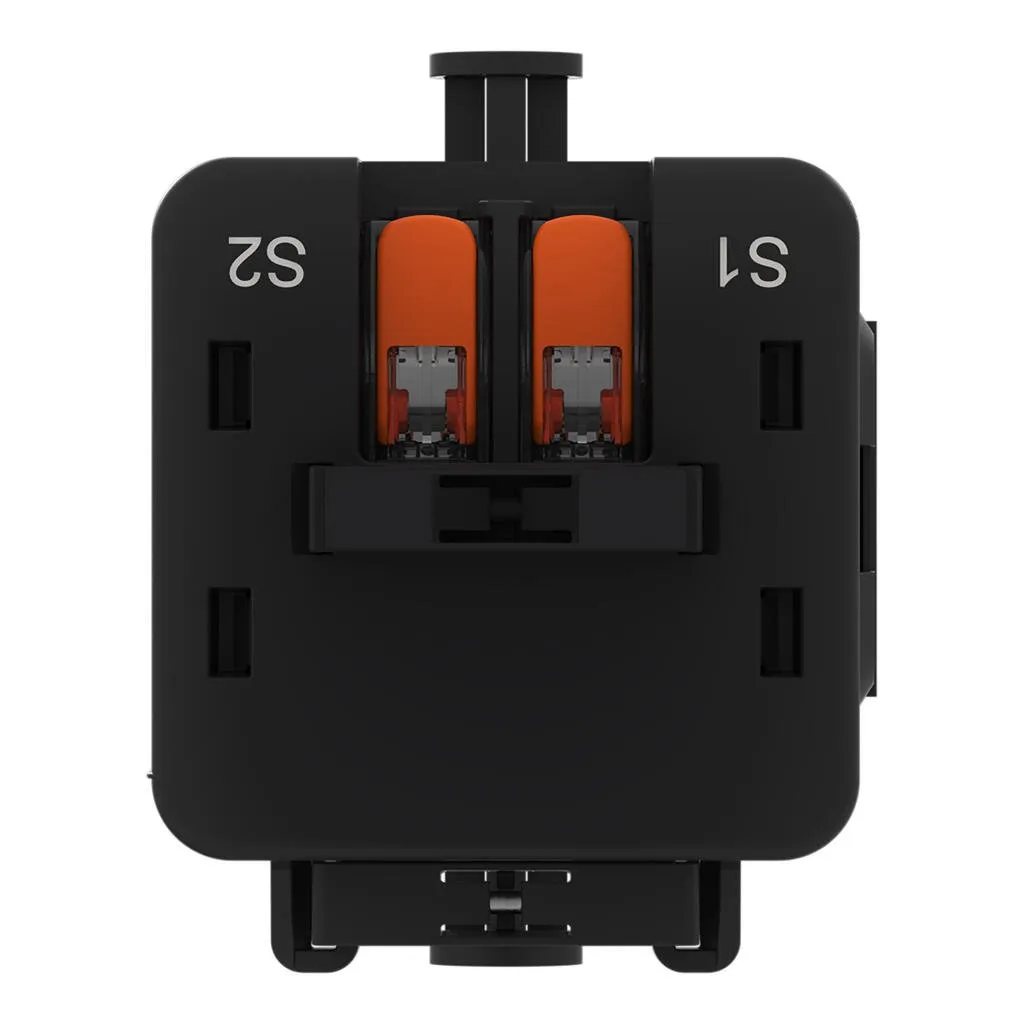

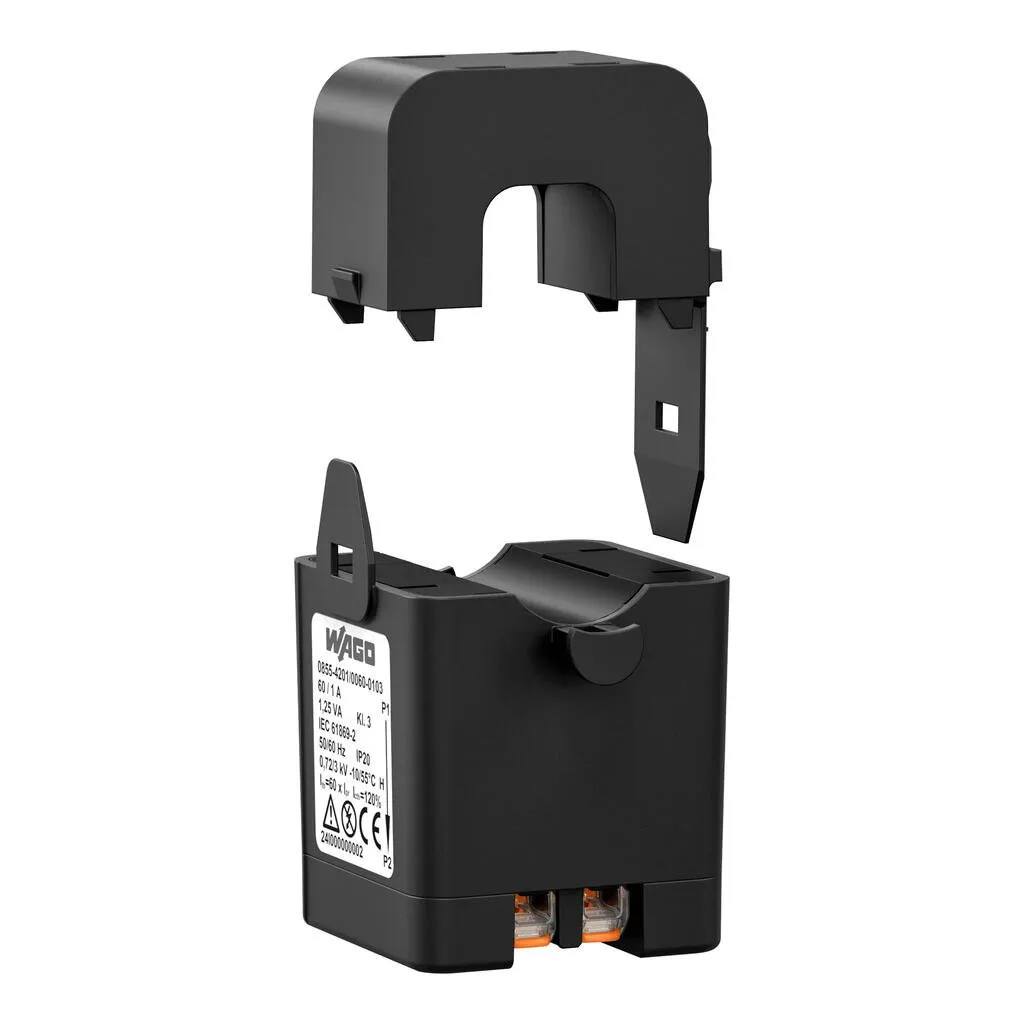

Short description:This compact split-core current transformers are ideal for retrofitting existing systems. They are perfect for applications in which the current path must not be disrupted. The transformer’s accuracy permits exact current measurements. The split-core current transformers can supply the specified rated power at the secondary connection. Two UV-resistant cable ties are also included for secure and easy mounting. Lever-operated CAGE CLAMP® connectors provide a secondary connection on the bottom. For safe installation, a shorting link is supplied, which can be placed in the parking position directly on the current transformer when not in use.Features:Transmission ratios of 60 A (primary side) and 1 A (secondary side)No primary cable interruptionIdeal for use in very confined spacesRapid mountingFor use around insulated cables (up to 18 mm Ø)Compact and hingedConnectors with levers for all conductor types up to max. 4 mm²Including shorting link
