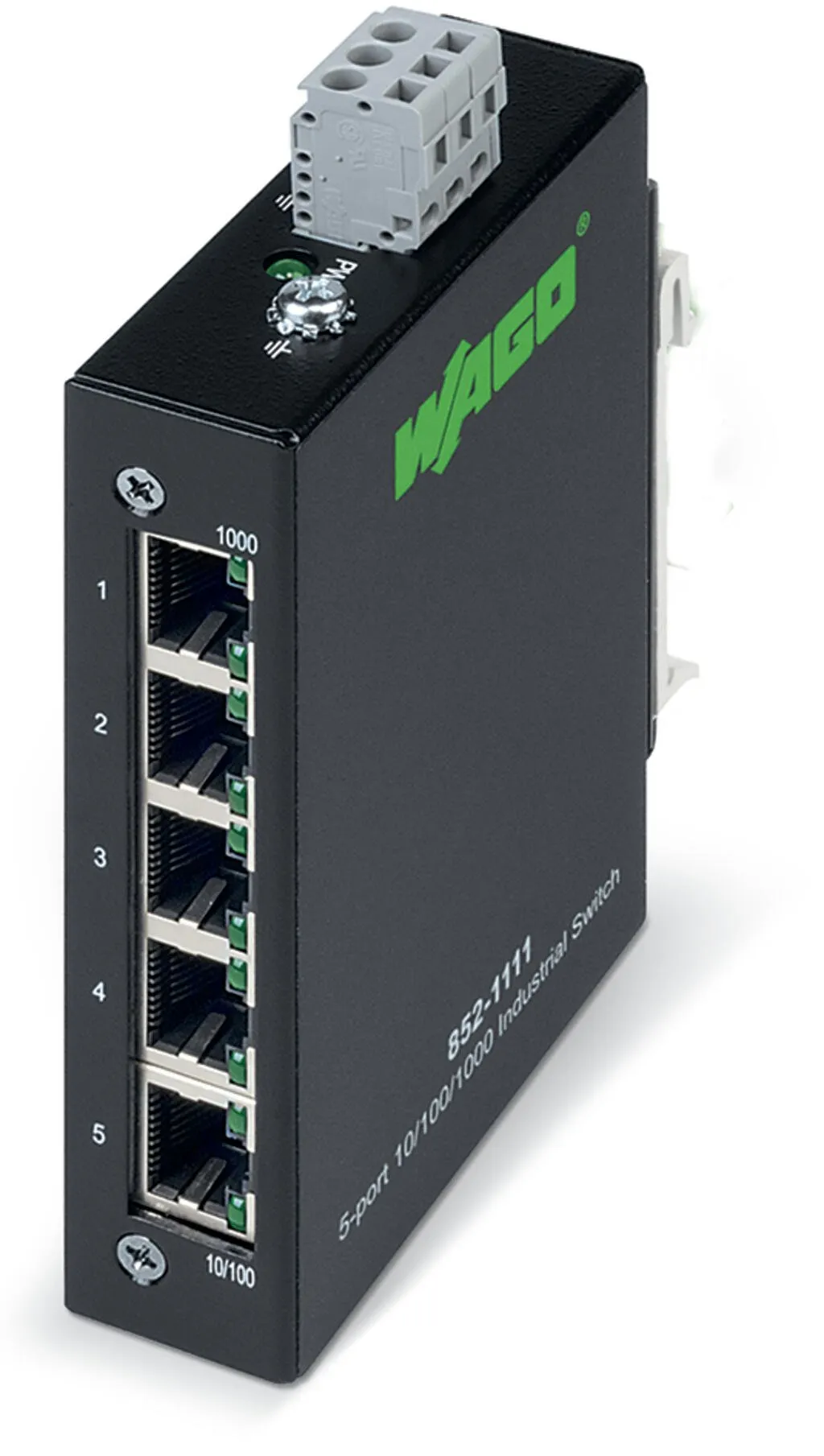

Wago 852-1111
This unmanaged industrial ETHERNET switch (852-1111) has 5 Gigabit ETHERNET ports for easily setting up small- to medium-sized networks. Its slim design paired with a DIN-rail adapter simplifies insta…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This unmanaged industrial ETHERNET switch (852-1111) has 5 Gigabit ETHERNET ports for easily setting up small- to medium-sized networks. Its slim design paired with a DIN-rail adapter simplifies installation in the control cabinet and provides high vibration and shock resistance. Additionally, automatic transmission rate detection (auto-negotiation) and automatic identification of the transmit and receive lines (Auto MDI-X) allow simple plug-and-play operation, saving time and money during commissioning.Features:5 ETHERNET ports 10/100/1000 Mbit/s AutonegotiationFront-panel diagnostic LEDsSupports Auto-MDI/MDI-X functionsFull/half-duplex transfer modes for each portStore-and-forward switching methodIntegrated address look-up table, supports up to 8000 absolute MAC addressesOvervoltage protectionData flow control, per IEEE 802.3x Flow Control, in full-duplex modePrioritization of ETHERNET data packets (PROFINET protocol, EtherType=0x8892) per IEEE802.1pDIN-35 rail mounting
Specification
Technical data
| Switching mode | Store-and-forward; non-blocking |
|---|---|
| Number of 1 Gb/s ports | 5 |
| Communication standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.1p Prioritization |
| MAC table (size) | 8000 addresses |
| Jumbo frame size | 9000. Byte |
| Supply voltage | 9 … 48 VDC |
| Power consumption (max.) | 3 W |
| Current consumption (max.) | 500 mA |
| ESD (contact/air discharge) | 4 KV / 8 KV |
| Transmission rate | Copper cable: 10/1000 Mbit/s |
| Transmission medium (communication/fieldbus) | Copper cable: Cat. 5 or higher, 100 m maximum cable length |
| Topology | Star |

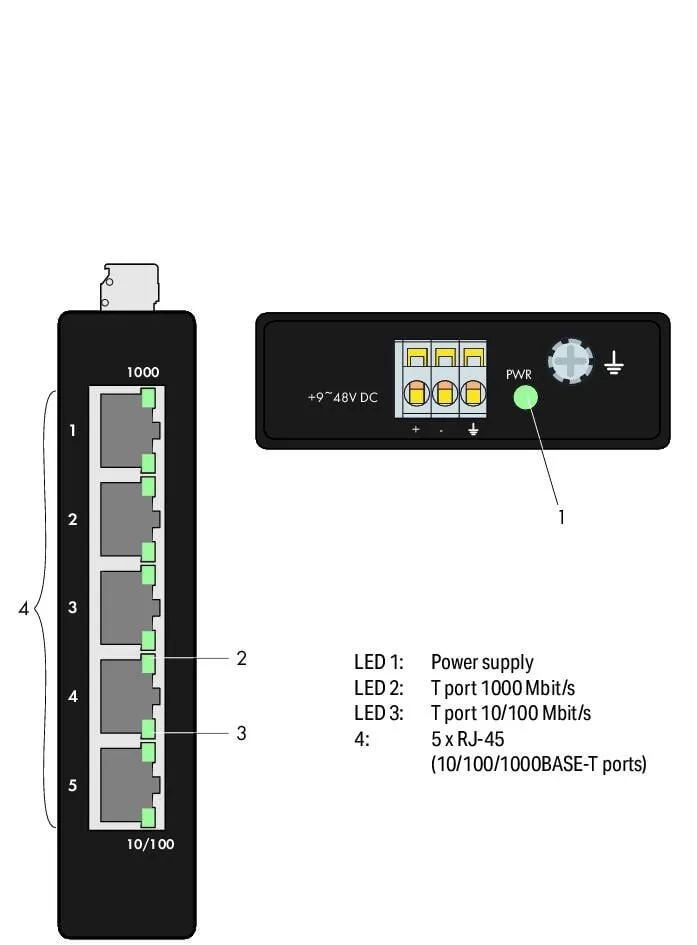

| Indicators | Device: LED (PWR) green: Power supply; per port: LED (100, 1000) green: Status 100 Mbps, 1000 Mbps ports 1 … 5 |
Connection data
| Connection technology: communication/fieldbus | Copper cable: 5 x RJ-45 |
|---|---|
| Connection technology: supply | 1 x Built-in male connector: 231-433/001-000; included female connector (MCS Connectors): 231-103/026-000 |
Physical data
| Width | 23.4 mm / 0.921 inches |
|---|---|
| Height | 109.2 mm / 4.299 inches |
| Depth | 73.8 mm / 2.906 inches |
| Depth from upper-edge of DIN-rail | 81 mm / 3.189 inches |
Mechanical data
| Weight | 190 g |
|---|---|
| Color | black |
| Housing material | Sheet steel |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -40 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +80 °C |
| Protection type | IP30 |
| Relative humidity (without condensation) | 95 % |
| Mounting type | DIN-35 rail |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | per IEC 60068-2-27 |
Commercial data
| Product Group | 27 (special components I/O) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | TW |
| GTIN | 4066966216639 |
| Customs tariff number | 85176200000 |
| End of Sale | 2024-04-01 |
| End of Production | 2024-04-02 |
| End of Delivery | 2024-04-03 |
| End of Service and Repair | 2026-04-01 |
| Support period for security updates | 2029-05-03 |
Product Classification
| UNSPSC | 43222612 |
|---|---|
| eCl@ss 10.0 | 19-17-01-30 |
| eCl@ss 9.0 | 19-17-01-06 |
| ETIM 9.0 | EC000734 |
| ECCN | 5A992.C |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
