Wago 847-102/000-2000

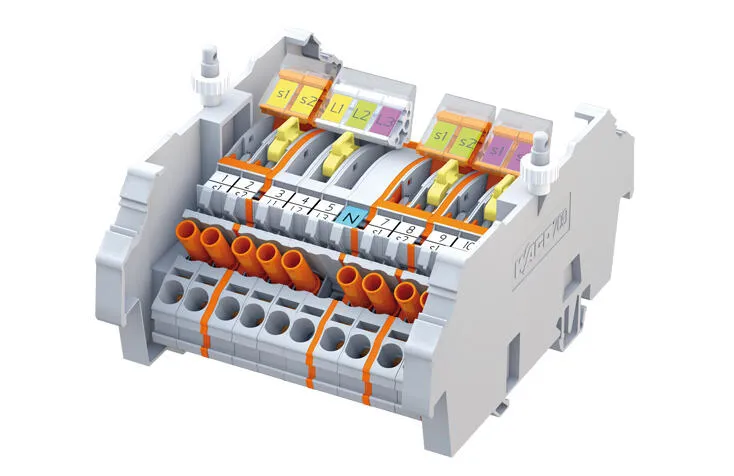

WAGO measure rail LPW 847-102/000-2000
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WAGO measure rail LPW 847-102/000-2000
Specification
Electrical data - Ratings per Current Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 500 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 30 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per Voltage Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Ratings (note) | Disconnect terminal blocks with item numbers 2007-8xxx are located in the voltage circuit. |
| Rated voltage (III / 3) | 500 V |
| Rated impulse withstand voltage (III/3) | 6 kV |
| Rated current | 30 A |
Electrical data - Voltage Signaling
| Power loss at IN = 1Â A (per terminal) | 0.001 |
|---|---|
| Power loss at IN = 5Â A (per terminal) | 0.025 |
Connection data - Connection: Current Circuit
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
Connection data - Connection: Voltage Circuit
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
Physical data
| Width | 163 mm |
|---|---|
| Height | 155 mm |
| Depth | 95 mm |
Material data
| Fire load | 6.768 MJ |
|---|---|
| Weight | 479.7 g |
Commercial data
| Product Group | 5 (Rails) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | PL |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 90037d2c-0068-42ad-a63f-b8dd007840e4 |
| SCIP notification number (Belgium) | f5fc14f8-0e69-4c91-ab9f-1886f5623a14 |
| SCIP notification number (Bulgaria) | 1debd974-41ad-4228-9d4f-44e0ff29b274 |
| SCIP notification number (Czech Republic) | fbf73557-4e14-4079-9b72-d159a52d882c |
| SCIP notification number (Denmark) | 1a01ebd2-d69b-4abe-a086-846be16ce63b |
| SCIP notification number (Finland) | 2b1aa554-53d1-4b63-85b8-1a9dd54e4089 |
| SCIP notification number (France) | d3a51327-6d53-4eeb-9360-638bc36e7d3d |
| SCIP notification number (Germany) | 17abfe4f-b50a-41b4-a442-1adcf5702c57 |
| SCIP notification number (Hungary) | 4f3aea37-f3c3-4718-9be0-ca62595fe8c9 |
| SCIP notification number (Italy) | f31caf84-3171-48a8-b4eb-140d4ba124d4 |
| SCIP notification number (Netherlands) | 712d4c68-16f3-401f-8eae-cd6079bc7653 |
| SCIP notification number (Poland) | 1118f0bd-55f3-4bc0-b7d9-7d624022c3d5 |
| SCIP notification number (Romania) | 27bc6216-ee9d-48a9-8c6c-b2c97ef1b0d0 |
| SCIP notification number (Sweden) | 6524943d-760d-40ff-864b-a31c633e1e82 |
